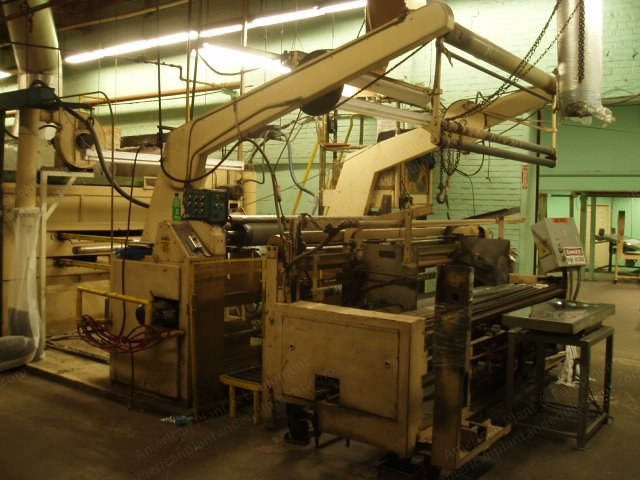

Bruckner, Pin Tenter Range, 5-Zone, 78 Inch Max Width, Gas Fired

Bruckner, Pin Tenter Range, 5-Zone, 78 Inch Max Width, Gas Fired

Description

  1. Overview
    1. Bruckner pin tenter range
    2. Maximum width: 78 inches (1980 mm)
    3. Was running fabric up to 72 inches (1828 mm)

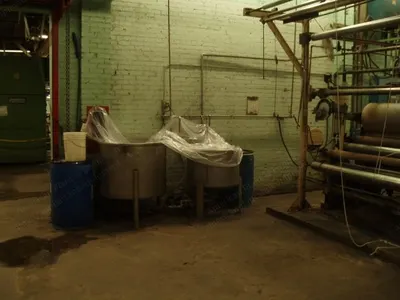

  2. Mix Tanks and Transfer
    1. 1 mix tank - 39" dia. x 30" deep with electric mixer
    2. 1 mix tank - 31" dia. x 21" deep with electric mixer
    3. 1 transfer pump

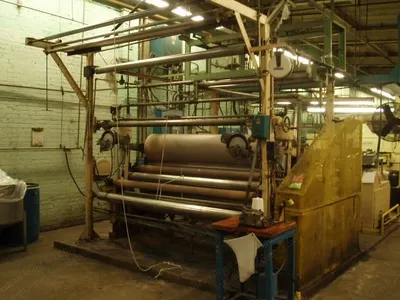

  3. Guiders and Padder
    1. Toyo TGA guiders with bridge
    2. Morrison padder: 90" x 18"
    3. Rubber rolls
    4. Stainless steel immersion pan
    5. 2 rubber scroll rolls
  4. Compensator and Tenter Entry
    1. 3-roll compensator
    2. Tenter entry: operator platform, controls, scroll opening
    3. 87" feed roll
    4. Tandematic plate uncurlers
    5. Pinning on assembly and overfeed
  5. Rails and Chain
    1. Kenyon over/under rails and vertical chain
    2. Electric rail guiding
    3. 16' entry rail

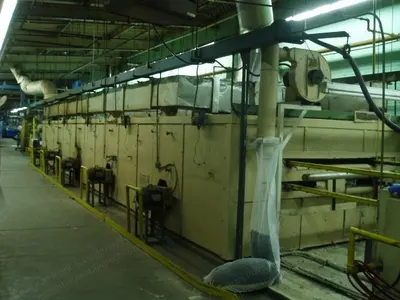

  6. Oven House
    1. Bruckner house: 5-zone, gas fired
    2. Circulation fans moved to outside of house for ease of service
  7. Exit and Folding
    1. 10' exit rail
    2. Edge trimmers and removal blowers
    3. Center slitting knife
    4. Stripper roll
    5. Swing folder
