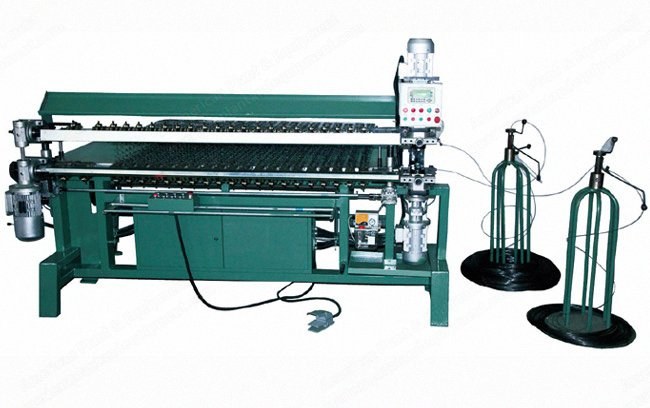

Spring Machines

Spring Machines

Description

  1. Overview
    1. Assembly machine
    2. Spring type: Bonnell
  2. Model 08 Automatic Spring Machine
    1. Diameter of steel wire: Φ1.8 to 2.5 mm
    2. Height of springs: 80 to 220 mm
    3. External diameter of spring end ring: Φ65 to 85 mm
    4. Number of turns: 4 to 8
    5. Motor power: 4.5 kW
    6. Weight: 1.5 tons
    7. Production: 65 pieces per minute
  3. Model 06 Automatic Spring Machine
    1. Diameter of steel wire: Φ1.8 to 2.5 mm
    2. Height of springs: 140 to 200 mm
    3. Spring end ring: Φ47 to 90 mm
    4. Number of turns: 4 to 9
    5. Motor power: 4.5 kW
    6. Weight: 1.5 tons
    7. Production: 53 to 60 pieces per minute
  4. Model 80 Pocket Spring Production Machine
    1. Spring type: barrel and cylindrical
    2. Spring end ring: Φ45 to 65 mm
    3. Spring diameter: Φ55 to 75 mm
    4. Diameter of steel wire: Φ1.6 to 2.3 mm
    5. Height of pocket springs: 140 to 220 mm / 80 to 130 mm
    6. Nonwoven fabric width: 260 to 600 mm
    7. Nonwoven fabric thickness: 55 to 80 g/m²
    8. Production: 75 pieces per minute
    9. Power: 3P, 7 kW
  5. Additional Specifications
    1. Spring end ring: Φ67 to 95 mm
    2. Spring height: 130 to 180 mm
    3. Number of turns: 4 to 6
    4. Spring wire gauge: Φ2.2 to 2.5 mm
    5. 20 jaws
