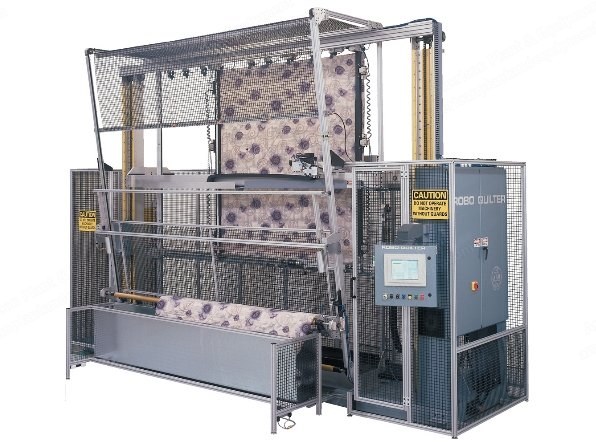

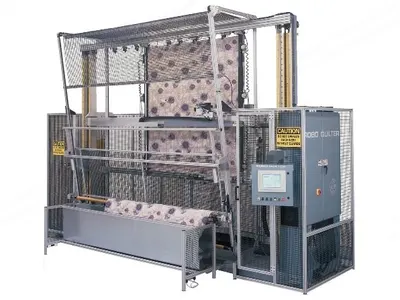

Description Overview World's first vertical quilting machine (internationally patented) Dell pentium-based pc Windows based operating system Color touch screen operator interface Self diagnostics system Specifications Standard material size up to 120 in x 110 in Standard sewing line: 114 in x 104 in Maximum material size: 120 in x 110 in Maximum sewing line: 114 in x 104 in Maximum axis speed: 1,000 ipm Maximum sewing speed: 4,500 spm Machine weight: 10,500 lbs Floor space: 5 ft x 17 ft Electrical And Pneumatic Requirements 220 volts three phase, 20 amps 100 psi at 2.5 cfm Sewing Head And Thread Handling High-speed lockstitch Pfaff industrial sewing machine Underbed thread trimmer Fully automatic bobbin changer Thread break detection Thread break recovery system Lifting sewhead Drive And Motion System High speed Sercos based digital servo motors and drives Planetary gear reducers Stainless steel timing bands Precision machines aircraft aluminum structure Precision ground linear ball bearing guideways Ballscrew driven mechanism Automation And Features Fully automatic racking and stretching Fully automatic size change system Machine adjusts from twin to king sizes automatically Tack and jump capabilities Software And Patterns Quiltcad pattern design software Machine comes loaded with thousands of patterns Storage 1.5 gig hard drive Disk drive
