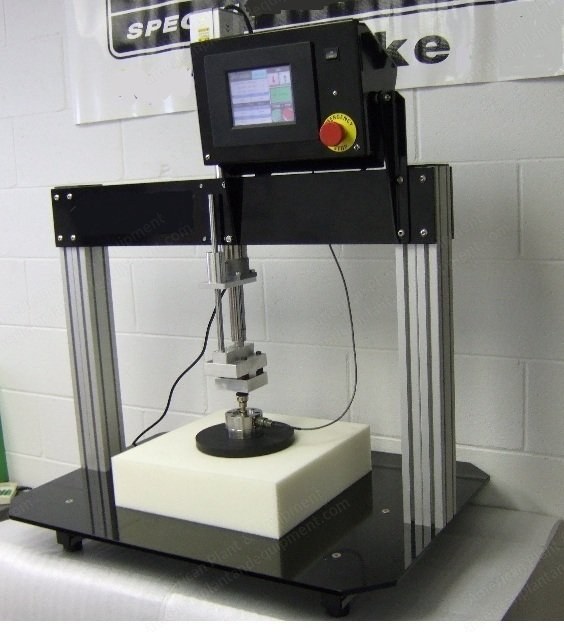

Schap, PLC IFD/ILD Tester, 200 lbs Max Load, 200mm Stroke, Bench Top

Schap, PLC IFD/ILD Tester, 200 lbs Max Load, 200mm Stroke, Bench Top

Description

  1. Overview
    1. Plc-controlled version with a color touch screen of a manual foam ild-ifd tester
    2. Consists of a “bench top” test fixture 36” wide x 26” deep
    3. Utilizes a 200 mm stroke servo drive lead-screw assembly and high accuracy loading sensor
    4. Maximum load capability is 200 lbs
    5. Built-in linear position sensor allows programmed tests to operate automatically, moving to required positions
  2. Specifications
    1. Custom-written program for easy test setup and manipulation of test variables for each sample
    2. Capable of running d3574-08 b1 (indentation force deflection test—specified deflection)
    3. Capable of running d3574-08 b2 (indentation residual gage length test—specified)
    4. Capable of running test c (compression force deflection test)
    5. Capable of running optional test e (tensile test)
    6. Capable of running test f (tear resistance test)
    7. Comes with a customizable screen to create tests based on other specifications
  3. Condition
    1. Used industrial machine
  4. Included
    1. Bench top test fixture
    2. Servo drive lead-screw assembly
    3. High accuracy loading sensor
    4. Linear position sensor
    5. Color touch screen
    6. Custom-written program
    1. Not specified
