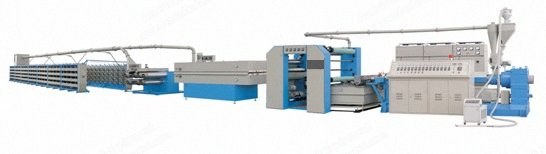

NovaStar, SY111, High Speed PP/PE Flat Yarn Extruder, 490kg/h Capacity, 120mm Screw Diameter, 1500mm Die Lip Width (New)

NovaStar, SY111, High Speed PP/PE Flat Yarn Extruder, 490kg/h Capacity, 120mm Screw Diameter, 1500mm Die Lip Width

Description

  1. Overview
    1. Micro-processor control with frequency conversion governor and fully digitized setting and displaying of technical data, based on international advanced techniques.
    2. Enlarged L/D ratio and new type of separating screw with widened mixing smelt zone on the extruder screw pot.
    3. Advanced automatic belt change filter for the flat film stretching line.
    4. Bake-board changed into advanced hot drawing oven; principal technical index reaches international advancing level.
    5. Friction-free drive winding machine with constant tape tension wind.
    6. High speed, top yield, low energy consumption, good forming quality of the fiber drum.
    7. Compact structure with pleasing appearance, smooth running, flexible and reliable control, sophisticated manufacture engineering, convenient operation and reliable production.
    8. Can be used in producing flat fiber from thermoplastics such as polypropylene (PP) and high-density polyethylene (HDPE).
  2. Components
    1. Extruder
    2. Screen changer
    3. Die
    4. Water quench system
    5. Film take-off and slitting film into tapes device
    6. Traction system
    7. Hot air oven
    8. Stretching and annealing unit
    9. Winding unit
    10. Edge tape and waste tapes reclaim system
    11. Electric control cabinet
  3. Specifications – Model SY111
    1. Model: SY111
    2. Max extrusion capacity: 490 kg/h
    3. Driving power of extruder: 160 kW
    4. Screw diameter: 120 mm
    5. Ratio of L/D: 30:1
    6. Revolution of screw: 20–120 r/min
    7. Die lip width: 1500 mm
    8. Max winding speed: 280 m/min
    9. Flat thread fibre scope: 60–200 tex
    10. Stretching ratio: 4–10
    11. System installed capacity: 400 kW
    12. Normal operational capacity: about 230 kW
    13. Weight: 32,000 kg
    14. Overall dimensions (L×W×H): 39,000 × 3,900 × 2,600 mm
  4. Specifications – Model 100/192
    1. Model: 100/192
    2. Max extrusion capacity: 350 kg/h
    3. Driving power of extruder: 90 kW
    4. Screw diameter: 100 mm
    5. Ratio of L/D: 30:1
    6. Revolution of screw: 20–120 r/min
    7. Die lip width: 1100 mm
    8. Max winding speed: 280 m/min
    9. Flat thread fibre scope: 60–200 tex
    10. Stretching ratio: 4–10
    11. System installed capacity: 320 kW
    12. Normal operational capacity: about 190 kW
    13. Weight: 30,000 kg
    14. Overall dimensions (L×W×H): 35,000 × 3,700 × 2,600 mm
