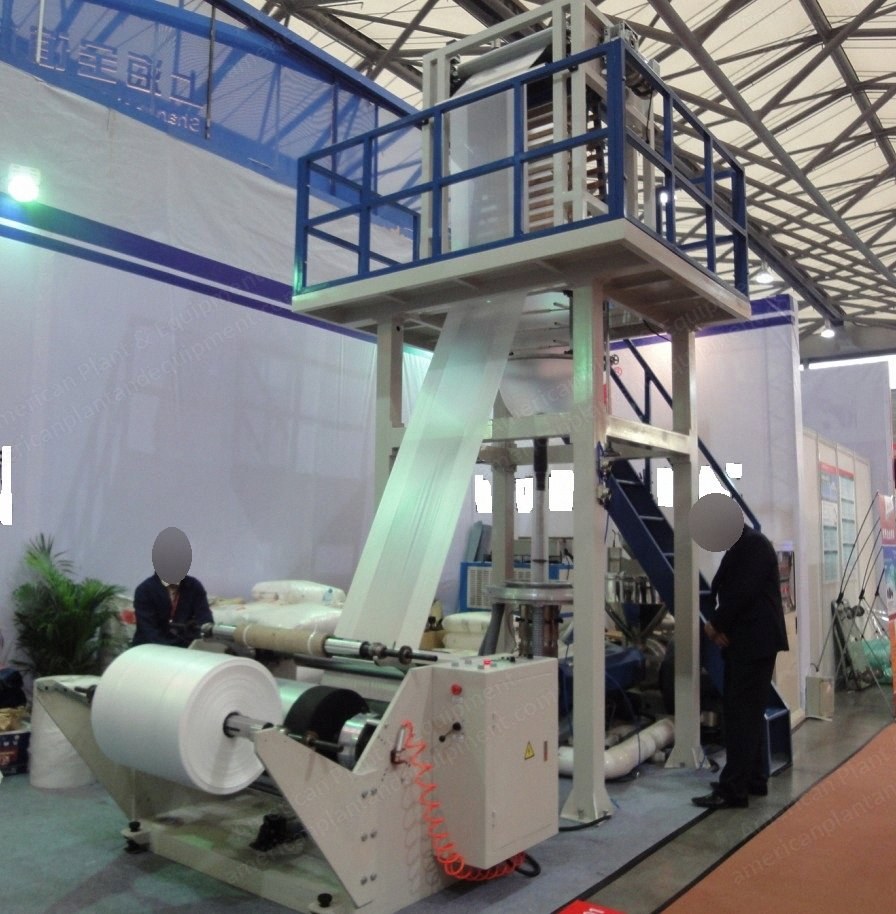

Description Machine Outline Model: SF109 Material suitable: LDPE Film thickness range: 0.3 - 0.10 mm Film width range: 1200 mm - 1900 mm Max output: 250 kg/h Machine height: 8000 mm Extruder Main motor: 75 kW Controlling way: by inverter Blower power: 7.5 kW Barrel cooling fan power: 250 W Screw diameter: 100 mm Screw L/D: 30:1 Screw material: 38CrMoAlA Die type: rotary Die material: 40Cr Die size: 600 mm Air ring type: double layer Heating zone: seven, three for barrel, two for die, one for rotary part, one for screen changer Heating way: heating element Screen changer: manual quick screen changer Gear box model: 450 Hopper: stainless steel Hopper loader: provided Take-Up Unit Top nip material: wooden Take up unit type: fixed Take up speed: 10-100 m/min Controlling way: by inverter Guiding roller diameter: 80 mm Winder Winder type: automatic change roll Winder station: single (one station) Air shaft number: 2 Air shaft diameter: 74 mm Electric Parts Motor: Jiangsheng Inverter: Delta Contactor: Shihlin Temperature controller: Fotek Switch: Delixi Spare Parts Tension controller, heating elements, ammeter, temperature controller, buttons, contactor, rubber ring for rotary die, tool and so on.
