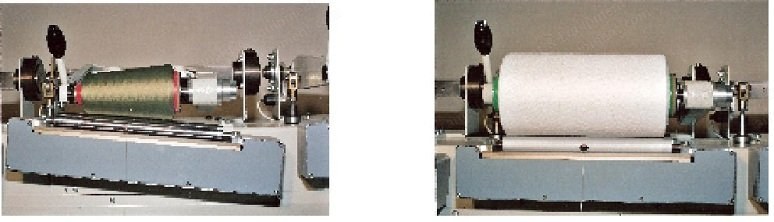

Rite, Precision Cone to Cone Winding Machine, 12 Spindles, 250mm Traverse

Rite, Precision Cone to Cone Winding Machine, 12 Spindles, 250mm Traverse

Description

  1. Overview
    1. Traverse 10" (250 mm)
    2. Machine for "soft-cone" for dyeing preparation and rewinding for final cone, single side with 12 spindles
    3. For 100% filament flat yarn, 20 denier to 300 denier
  2. Specifications
    1. Installed / absorbed power: 250 watt installed per spindle; actual 45w per spindle at 500 mt/min of working speed
    2. 180w per spindle at 1000 mt/min
    3. For winding: soft cones and re-winding (hard cones)
    4. Mechanical speed: up to 1200 mt/min according to the process parameters
    5. Maximum number of strokes: 800 per min (according to the length traverse)
    6. Traverses: from 2" to 8" (420 mm pitch) or from 2" to 10" (525 mm pitch)
    7. Wind types: precision cone, densycone or isoangle
    8. Working spindles: brushless motor for the package, steps motor for the yarn guide
    9. Take-up tube conicity range: from 0° to 5°57'
    10. Max. take-up package diameter: 280 mm
    11. Standard configuration: version 2" to 8" traverse 5 spindle/section; version 2" to 10" traverse 4 spindle/section; maximum 60 spindles
    12. Control options: by touch screen in the headstock, to set all parameters as speed, type of winding, metering, soft starting speed, tapering parameters, soft edges parameters, progression for conical tubes and also "intelligent counterweight details"
    13. Package counter weight system: "intelligent system"
    14. Yarn tension device: by disc or by comb, electronically controlled
    15. Spindles per machine: 12 (recommended)
    16. Traverse: until 250 mm (10")
    17. Yarn processed: filament flat yarn
    18. Average count: 20 denier to 300 denier
    19. Take-up tube conicity: as per customers specifications
    20. Installed power: 3 kw (total x machine)
    21. Voltage: as per customer
    22. Frequency: as per customer
    23. Compressed air consumption: 0,5 nl/min per spindle, total 25 nl/min
    24. Machine length: 7780 mm
    25. Machine width: 1.690 mm (with travelling cleaner)
    26. Machine height: 1667 mm
  3. Additional Details
    1. Each spindle is independent, with a separate motor. There are 2 motors each spindle, one for the movement of tread guide, one for the movement of the packages. One is brushless, and one is a step motor.
