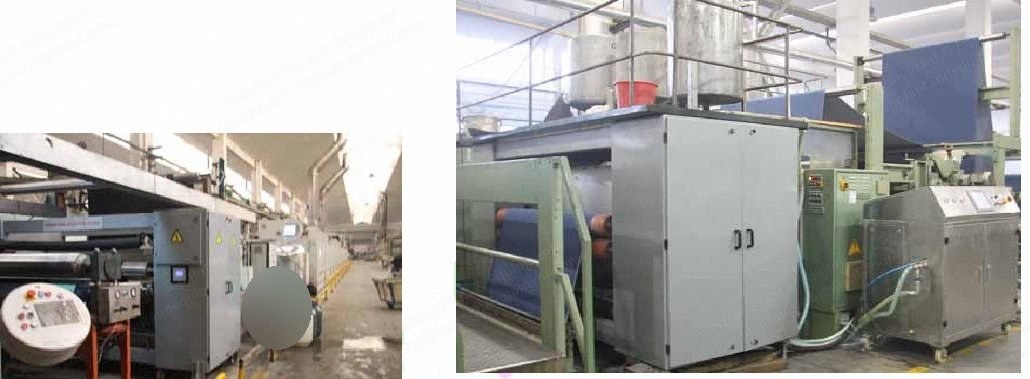

NovaStar, CG111, Coating System, New, Single or Double Side Treatment, Back Coating, PLC Touch Control (New)

NovaStar, CG111, Coating System, New, Single or Double Side Treatment, Back Coating, PLC Touch Control

Description

  1. Overview
    1. Foam generator for continuously mixing and chemical flow

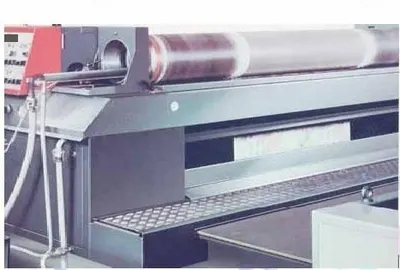

    2. Applicator to apply foam evenly
    3. PLC touch control system
    4. Auto washing
    5. Single or double side treatment
    6. Back coating
  2. Specifications
    1. Blow ratio from 1:1.10 to 1:50 (cup weight from 900 g to 20 g per liter)
    2. Pump viscosity range from 50 cps to 20,000 cps
    3. Adjustable bubble size (minimum 8 microns diameter)
    4. Speed from 0.1 liter per minute to 5 tons per hour

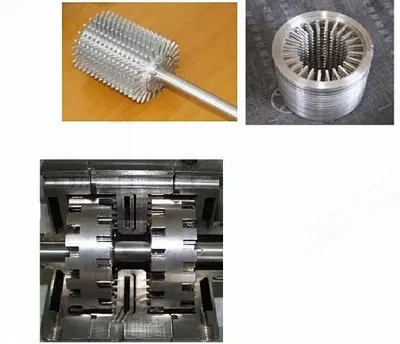

  3. Mixing Details
    1. Rotor and stator are 316L stainless steel
    2. Pin to pin distance 0.75 mm for low shear mixing
