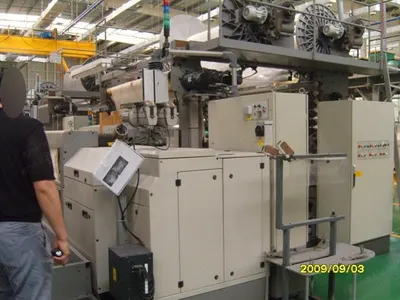

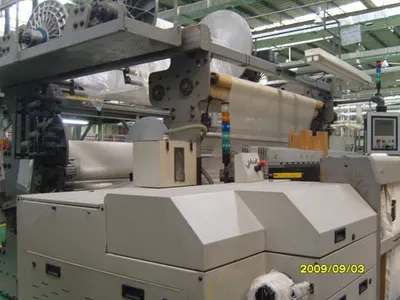

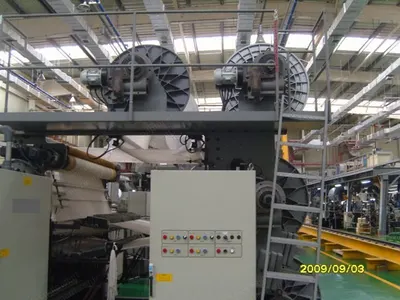

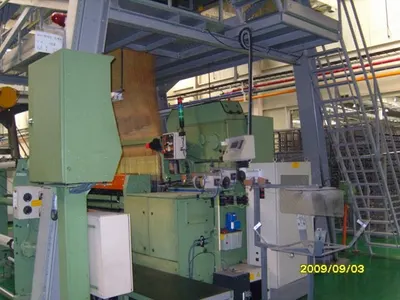

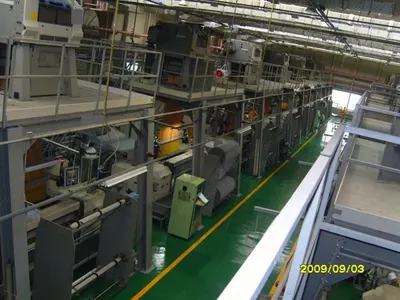

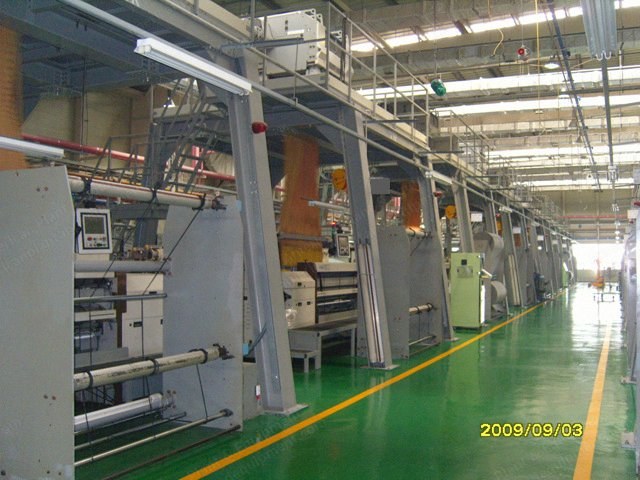

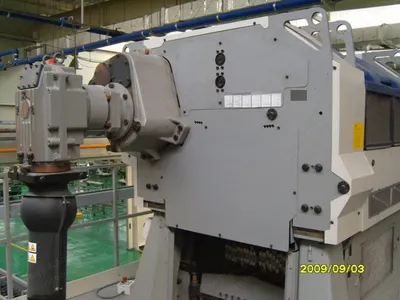

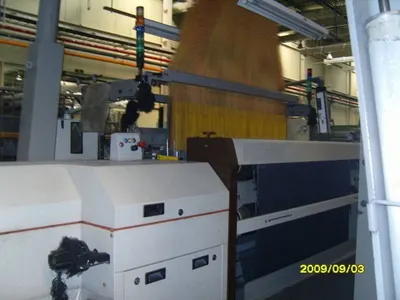

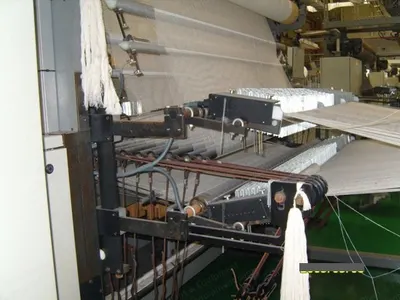

Van De Wiele, Velvet Tronic VTR-23, 2002, 1750mm Roller Width, Velvet Looms

Van De Wiele, Velvet Tronic VTR-23, 2002, 1750mm Roller Width, Velvet Looms Sold

Description

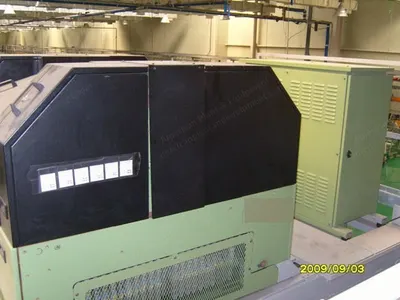

  1. Velvet Tronic VTR-23
    1. Year: 2003~2004
    2. Roller width: 1750 mm
    3. Rpm: 280~380 m/min
    4. Heald frame: 4 pcs (7 sets), 8 pcs (7 sets) per machine
    5. Reed density: max 63"
    6. Van de Wiele controller
    7. With 20 shafts for dobby
    8. Let off motion: electrical
    9. Card cloth: spike
    10. 2 x warp beam, 2 x pile beam
    11. Complete set with standard accessories
    12. Dimensions: 5,850 mm x 5,700 mm x 3,200 mm
    13. Quantity: 9
  2. Velvet Tronic VTR-33 Type
    1. Year: 2003
    2. Roller width: 1750 mm
    3. Rpm: 240~340 m/min

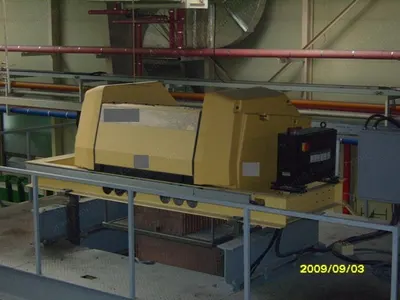

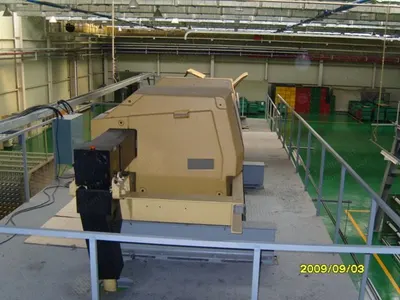

    4. Jacquard hooks: max 1536 (installed 792 hooks)
    5. Reed density: max 63" (this factory was operated to 61")

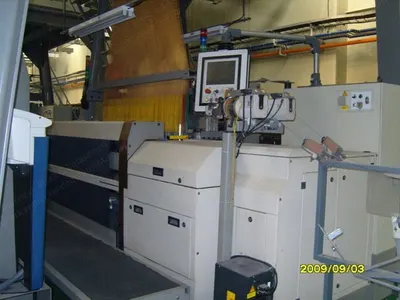

    6. Van de Wiele electronic controller

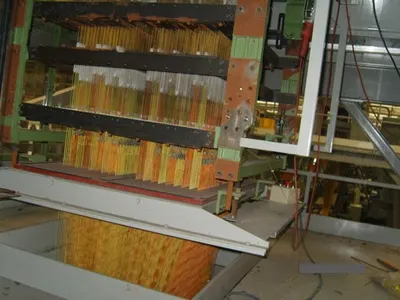

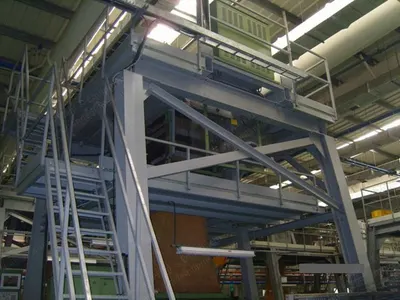

    7. Including complete jacquard harness and gantry
    8. Heald frame: 16 pcs per set
    9. Body (reed): 21 pcs
    10. Cloth roller: 2 pcs

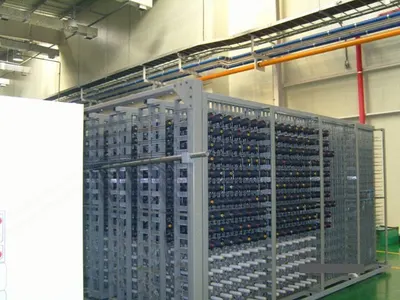

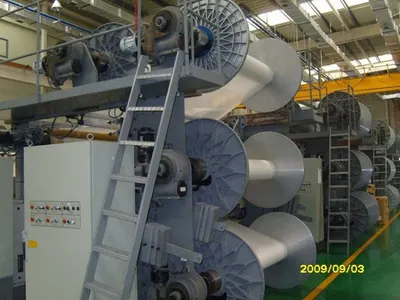

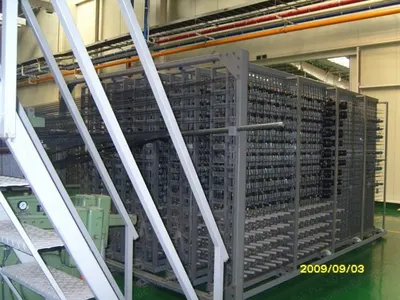

    11. Number of creel: 4,200 per set (5 door x 840 cone package)

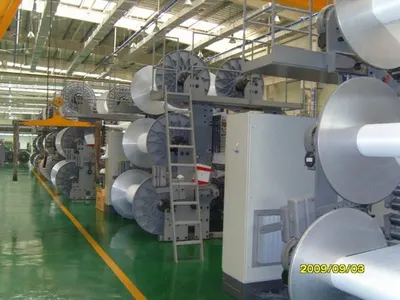

    12. 2 x ground warp beam, 2 x pile warp beam
    13. Beam diameter: 1,000 mm
    14. Complete set with standard accessories
    15. Dimensions: 5,400 mm x 6,100 mm x 2,900 mm
    16. Quantity: 10
  3. VMM 32
    1. Year: 2002
    2. Roller width: 1750 mm
    3. Rpm: 240~340 m/min
    4. Jacquard hooks: max 1536 (installed 792 hooks)
    5. Reed length: 63"
    6. Van de Wiele electronic controller
    7. With 20 shafts for dobby
    8. Including complete jacquard harness and gantry
    9. Heald frame: 16 pcs per set
    10. Body (reed): 21 pcs
    11. Card cloth (wire fillet): spike
    12. Pile: 2~3 colors
    13. Number of creel: 4,200 per set (5 doors x 840 cone package)
    14. 2 x ground warp beam
    15. Beam diameter: 1,000 mm
    16. Cloth roller: 2 sets
    17. Complete set with standard accessories
    18. Dimensions: 4,850 mm x 5,750 mm x 2,200 mm
    19. Quantity: 2 sets
  4. VMM-32
    1. Year: 1996/1997
    2. Roller width: 1750 mm
    3. Rpm: 240~340 m/min
    4. Jacquard hooks: max 1536 (installed 792 hooks)
    5. Reed length: 63"
    6. Van de Wiele electronic controller
    7. With 20 shafts for dobby
    8. Including complete jacquard harness and gantry
    9. Heald frame: 16 pcs per set
    10. Body (reed): 21 pcs
    11. Card cloth (wire fillet): spike
    12. Pile: 2~3 colors
    13. Number of creel: 4,200 per set (5 doors x 840 cone package)
    14. 2 x ground warp beam
    15. Beam diameter: 1,000 mm
    16. Cloth roller: 2 sets
    17. Complete set with standard accessories
    18. Dimensions: 4,850 mm x 5,750 mm x 2,000 mm
    19. Quantity: 2 sets
    20. Available immediately
    21. Stopped on mill floor
