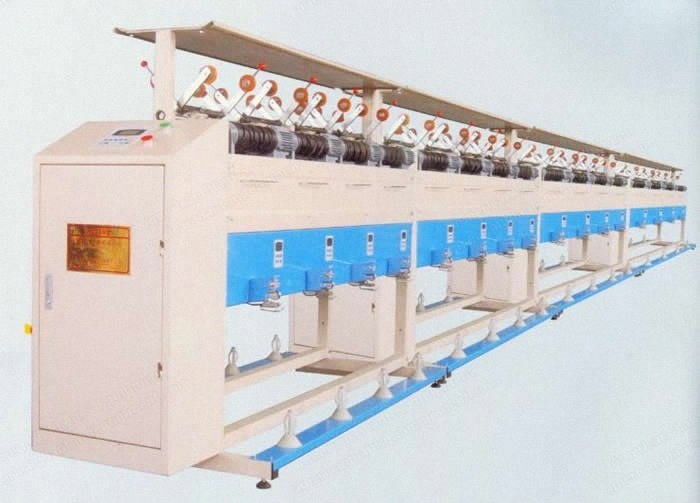

NovaStar, WN151, Slack Winders, New, Double Side, 40 to 60 Spindles, 300 to 1000 m/min (New)

NovaStar, WN151, Slack Winders, New, Double Side, 40 to 60 Spindles, 300 to 1000 m/min

Description

  1. Overview
    1. Plc control, auto-stop function, measuring device resulting in high speed high productivity, high production performance and low noise.
    2. This machine is a slack winder with currency and high speed.
    3. For winding cotton, or mixes, hard or soft cones for dyeing.
  2. Winder One Specifications
    1. Configuration: double side 12-96 (60 spindle as standard).
    2. Power supply: 50/60hz three phase voltage as per customers requirements.
    3. Drive: every spindle is individually motor driven.
    4. Power absorption: 0.09 kw/spindle.
    5. Spindle gauge: 330 mm.
    6. Transverse: 152 mm (6 inches).
    7. Grooved drum: diameter 82 mm cylindrical spiral 2.5.
    8. Package shape: cylindrical: 0, taper: 3 - 30.
    9. Winding speed: 300 to 1000 m/min.
    10. Package diameter: 280 mm.
    11. Anti-ribboning device: control by inverter.
    12. Required length control every spindle, displaying the length.
    13. Single head start/stop: individual spindles or all of the spindles together.
    14. Auto-stop for yarn breakage: every spindle is provided with photo-electric (stopping by itself).
    15. Speed regulation: control by inverter.
    16. Clearer: optional.
    17. Overall: 2350 x 1000 x 1600 mm.
  3. Winder Two Specifications
    1. Configuration: double side 24-72 (40 spindle as standard).
    2. Power supply: 50/60hz three phase voltage as per customer requirements.
    3. Drive: every spindle is individually motor driven.
    4. Power absorption: 0.18 kw/spindle.
    5. Spindle gauge: 515 mm.
    6. Transverse: 255 mm (10 inches).
    7. Grooved drum: diameter 100 mm cylindrical spiral 3.5.
    8. Package shape: cylindrical: 0, taper: 3 - 30.
    9. Winding speed: 300 to 600 m/min.
    10. Package diameter: 280 mm.
    11. Anti-ribboning device: control by inverter.
    12. Required length control, individual spindle, displaying the length.
    13. Single head start/stop: every spindle or all of the spindles together.
    14. Auto-stop for yarn breakage: every spindle provided with photo-electric (stopping by itself).
    15. Speed regulation: control by inverter.
    16. Overall: 10,600 x 1000 x 1600 mm (40 spindle).
