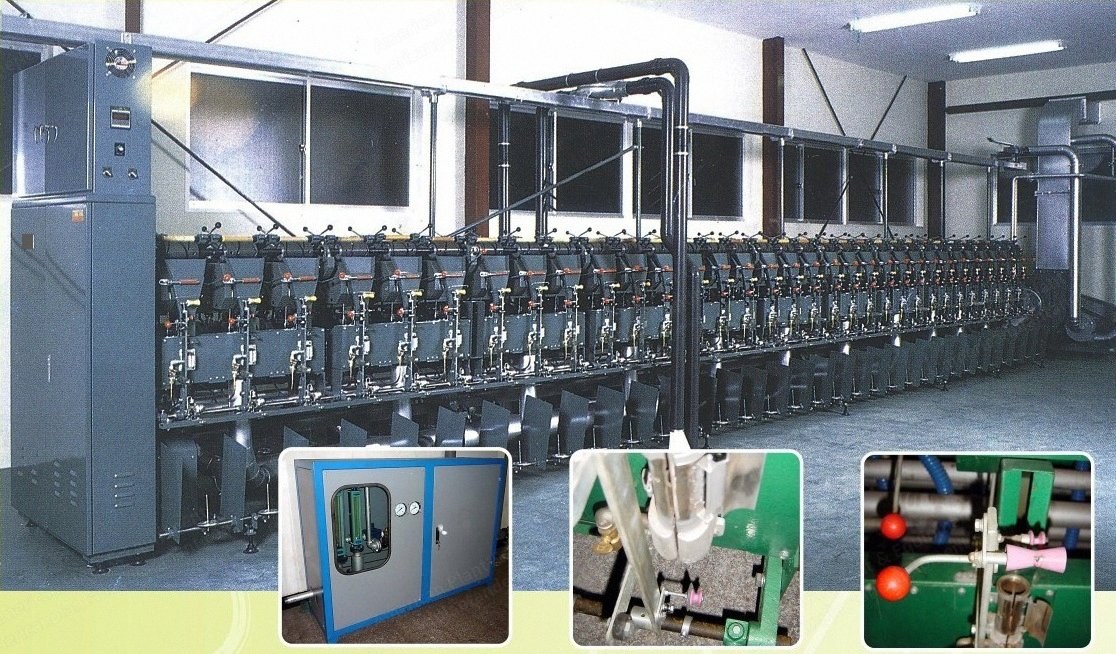

NovaStar Yarn Singeing Machine, DG200, 48 to 72 Spindles, 200-750 m/min, Conical Winding (New)

NovaStar Yarn Singeing Machine, DG200, 48 to 72 Spindles, 200-750 m/min, Conical Winding

Description

  1. Overview
    1. Two types of machines are available: one for a single singeing machine, the second one for two sets of singeing.
    2. Available in 48-60 or 72 spindle (double side).
    3. Take-up width: 288 mm.
    4. Conical winding.
    5. Cone sizes: 3°30' (paper cone tube), 5°57' (plastic tube), φ 25.4 × 147.5 × φ 8.4 (wood tube).
    6. Drum material: aluminum.
    7. Speed: 200-750 m/min.
    8. Power: 14 kW.
  2. Specifications
    1. Floor space dimensions for 48 spindle machine: 9661 × 1850 × 2840 mm.
    2. Floor space dimensions for 60 spindle machine: 11389 × 1850 × 2840 mm.
    3. Floor space dimensions for 72 spindle machine: 13117 × 1850 × 2840 mm.
    4. Weight for 48 spindle machine: 3500 kg.
    5. Weight for 60 spindle machine: 4000 kg.
    6. Weight for 72 spindle machine: 4550 kg.
  3. Features
    1. Automatic stop device with yarn breakage.
    2. Uses blow and suction device and a good set of ventilation and dust removal system.
    3. Inverter to control the speed.
    4. High-quality metal drums through the full dynamic balance correction, drum axis.
