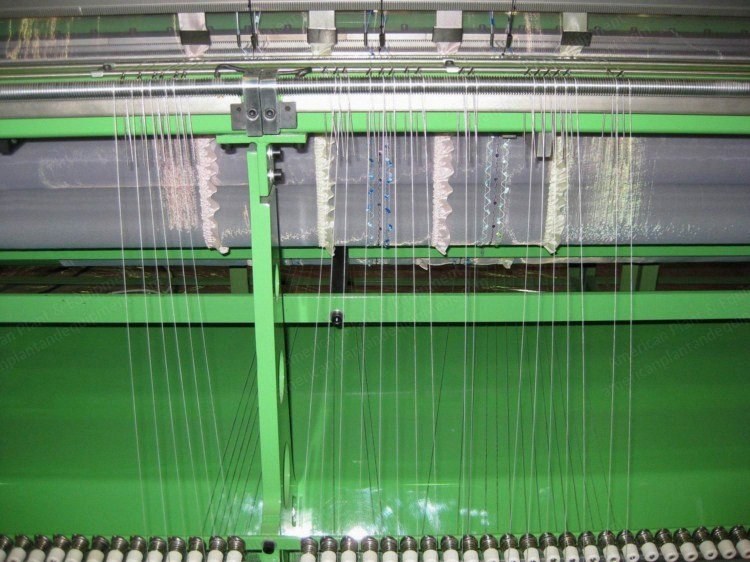

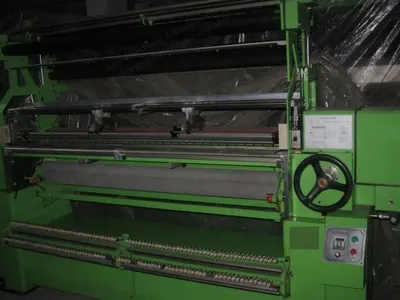

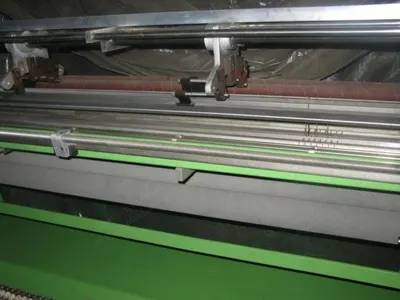

NovaStar, NF114, Crochet Machine, 3300mm Width, 10/15/18 NPI, 6 Weft Bars (New)

NovaStar, NF114, Crochet Machine, 3300mm Width, 10/15/18 NPI, 6 Weft Bars

Description

  1. Overview
    1. Width: 3300 mm (130 inches)
    2. Needles per inch: 10, 15, 18
    3. Weft bar: maximum 6 rows

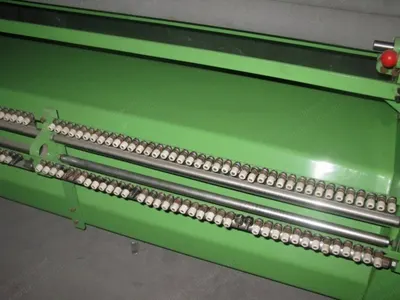

    4. Creel: 260 bobbins
    5. Automatic stop for yarn breakage
    6. S moving device: maximum traversal movement 25 mm
    7. Main shaft speed: maximum 200 rpm
  2. Specifications
    1. Motor power: Y100L 1-6/2.2 kW
    2. Machine dimensions: 5100 x 1150 x 2000 mm
    3. Machine weight: approximately 3000 kg
    4. Creel dimensions: 2080 x 1700 x 2750 mm
    5. Creel weight: 230 kg each
