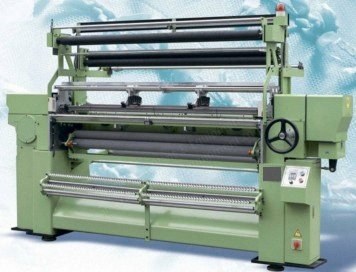

NovaStar, NF115, Crochet Knitting Machine, 1700mm, 10/15G, 6 Weft Bars (New)

NovaStar, NF115, Crochet Knitting Machine, 1700mm, 10/15G, 6 Weft Bars

Description

  1. Overview
    1. Width: 1700 mm
    2. Number of gauge needles per inch: 10, 15
    3. 6 weft bars
    4. Motor: 1.5 kW
  2. Needles And Components
    1. Needles: 500 pieces
    2. Weft guide tubes: 500
    3. Warp needles: 500
    4. Droppers: 600
  3. Included Accessories
    1. 1 collecting roller, tension roller and traverse roller
    2. 1 set of link chains
    3. 1 set of tools
    4. 260 bobbins for creel
  4. Weights
    1. Machine weight: 1250 kg
    2. Weight of creel: 235 kg
    3. Weight of machine and crate: 1650 kg
    4. Weight of creel and crate: 320 kg
  5. Crate Dimensions
    1. Crate dimensions for machine: 3330 x 1270 x 2170 mm
    2. Crate dimensions for creel: 2860 x 750 x 290 mm
