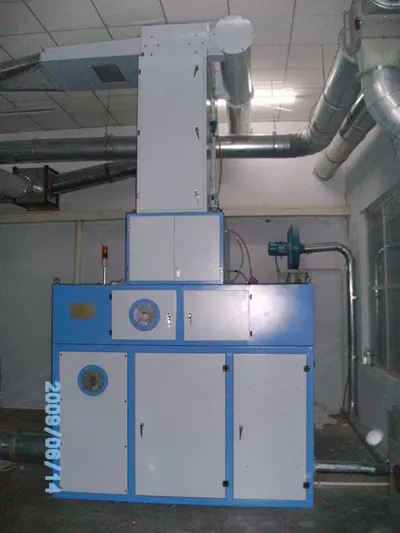

Cotton foreign fibre removal machine designed for blowing process lines.
Cotton is fed to the machine by the blowing process, passes through the detection channel vertically and evenly after being gently opened by the opener.
Detection results are influenced by cotton opening degree; the more evenly opened, the better.
In the middle of the channel there is a transparent detection window.
On both sides of the window, high-speed high-resolution line scan cameras shoot pictures.
Picture information is sent to a high speed digital-image processing system.
The system analyzes characteristics of foreign fibre such as contrast degree, saturability, color difference and shape.
After a series of recognition and location programs, the coordinate position of foreign fibre is detected.
The high frequency electromagnetic valve is activated and contaminants are blown out by the control system and pumped into the contamination hopper by the suction fan.
Pure cotton passes through to the cotton output and into the next machine process.
Machine Components
Cotton input
Hopper
Opener
Spray contamination exit
Electromagnetic valve
Industrial computer
Cotton removal
Dust removal
Interface
Detection channel
Camera
Pumping contamination channel
Contamination output
Technical Advantages
Specially designed automatic air compensation device makes up air automatically according to process needs and effectively keeps air speed in the detection channel at a stable level.
The machine has high reliability and stability and can work in an environment of high temperature, humidity and dust.
Perfect self-checking function detects abnormal events and alarms in time.
Net-plate form channel helps to stop air gyration.
Blowing Flowchart
Disk plucker
Manual operated cotton supply device
Metal, spark and heavy miscellany detection and clearing device
Double axis streaming opener
Multimixer
Opener
Cotton foreign fibre removal machine
Pneumatic cotton distribution machine
Vibratile hopper
Lap machine
Card Room Flowchart
Reciprocating plucker
Metal, spark and heavy miscellany detection and clear device
Double axis streaming opener
Multimixer
Three roller cotton cleaner
Cotton foreign fibre removal machine
Removal dust machine
Cotton feeding hopper of cotton cleaning and carding
High production card
