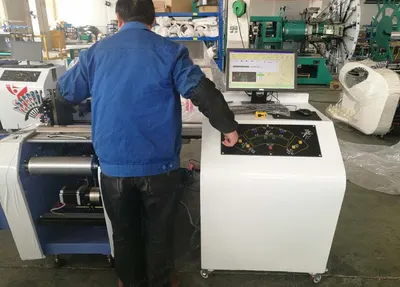

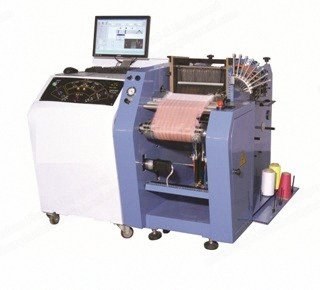

Description Specifications Weaving width: 12 inches, 20 inches, 24 inches (300mm, 500mm, 600mm) Speed: 30-50rpm Weft selector: 8 colours electronic weft selection device Fabric take-up: electronically controlled, with step motor for rolling with the weft Warp let-off: positive electronically controlled; constant warp tension can be maintained during weaving Shedding: computerized controlled, 20 harness frames driven pneumatically by air cylinders (2nd harness frames for selvedges) Draw-in: harness frames can be separated from the loom for harness and reed draw-in Warping: separate warp beam or manual warping could be used Weft insertion: single rapier weft insertion driven by air cylinder Beat-up: computerized air cylinder or servo-motor controlled Weft breaks: mechanical weft-break detecting device; loom stops when weft breaks Designing: Windows XP operation system with textile designing software Air consumption: 560L/min Controller: PC based controller / Windows operating system Control and Operation Use the touch screen to make the weaving pattern in the Windows 10 system Set the yarn shuttles on density and color as needed, all done on the screen Save the file and then download it Designs can also be made on your own computer and uploaded to the machine The machine can be configured to run any standard weave Included Spare Parts - Mechanical Weft tensioner 3 pcs Timing belt 1 piece Nuts 50 pcs Heddle hook 1 piece Ceramic guide (two types) 5 each Leno heddle 5 pairs Oil 1 bottle Rapier head 1 piece Electromagnet value 4 pcs Locking pin 10 pcs Aluminum strip for heald frame 4 pcs Screw M4*30 10 pcs Healds 2000 pcs Joint 10 pcs Air cylinder (two types) 1 piece each Separate drawing in station 1 set Heald frame 40 pcs Beam 1 set Manual warp device 1 set Included Spare Parts - Electrical Drive MD556 1 piece Proximity switch NI5-G12-RN6X 1 piece Magnetic switch CS1-U 1 piece Small button TN16-MBR 2 pcs Included Tools and Accessories Small scissors 1 piece Heddle hook (2 types) 1 each 5mm hexagon ring spanner 1 piece Comb 2 pcs Denting knife 2 pcs Screw driver 2 pcs Air gun 1 piece Shipping Details Shipping dimensions: 2800 x 1600 x 1400 Shipping weight: 860 kg
