NovaStar, DG202, Sanforizer, 3000mm Width, 5-80 m/min Speed, PLC Control (New)

NovaStar, DG202, Sanforizer, 3000mm Width, 5-80 m/min Speed, PLC Control

Description

  1. Overview
    1. Machine hand: left or right hand
    2. Width: 3000 mm
    3. Speed: 5 to 80 m/min
    4. Preshrinkage: 16%
    5. Shrinking rate: ≤1%
    6. Steam pressure of press roller: 0.5 MPa
    7. Rubber felt thickness: 67 mm
    8. Diameter of drying cylinder of felt finish: Φ2000 mm
    9. Felt: 2200 g/m²
    10. Water consumption: 1 ton/hr
    11. Steam consumption: 500 kg/hr
    12. Transmission and control: PLC control, parameters on line display in color touch screen, multi-unit AC frequency conversion drive
    13. Installed power: about 38.45 kW
    14. Overall dimension (L x W x H): 12610 x 3768 x 3925 mm
  2. Main Structure

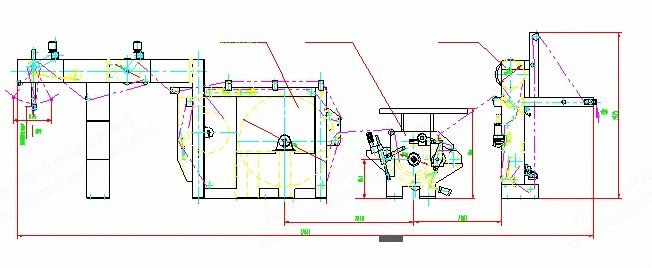

    1. This machine is made up of damping machine, pre-shrinking machine, and felt finisher.
    2. Damping machine:
      1. With fabric opening frame, feeding roller, water spraying, steam damping cylinder, center roller, etc.
      2. Fabric wetting (water spraying and steam spraying) to increase the soft and shrinkage before sanforizer.
      3. Water spraying device: the water is sprayed out into mist through sector nozzle and then the fabric is damped evenly.
      4. The steam cylinder: diameter Φ570 mm, stainless steel, max. working pressure 0.3 MPa. It makes the steam penetrate the fabric directly for the necessary moisture rate.
    3. Rubber blanket shrinking unit:
      1. To eliminate the potential shrinking stress in the fabric and achieve the shrinkage process.
      2. Diameter of supporting roller Φ616 mm, made from stainless steel, maximum pressure 0.50 MPa.
      3. Press roll, tension roll, guide roll are made from seamless steel tube with chrome plated surface.
      4. Grinding roll driven by separate motor.
      5. Press roll and tension roll are driven by separate motor.
      6. Emergency hand wheel to avoid rubber blanket damage in case of power outage.
    4. Felt finishing:
      1. To dry the fabric after sanforize, keep the shrinkage effect and improve the hand feel.
      2. Felt blanket: 2200 g/m², width 3000 mm.
      3. Diameter of large drying cylinder: Φ2000 mm, material is carbon steel and the maximum pressure it can reach 0.5 MPa.
      4. The felt drying cylinder: diameter Φ900 mm, material is carbon steel and the maximum pressure it can reach 0.4 MPa.
      5. Center roller is controlled by photocell switch to control the felt motion.
      6. Double column structure with cold-water cylinder allows fabric cooling quickly.
  3. User's Scope
    1. Compressed air: output pressure 0.65 to 0.80 MPa, oil-less, waterless, dustless. Available for machine connection.
    2. Water consumption: 1 ton/hr.
    3. Power: per customer request.
    4. Heating resource: steam boiler.
  4. Main Imported Parts
    1. Rubber blanket: Canada Denline
    2. Bearing of press roller, tension roller: Sweden SKF
    3. Pneumatic parts (special use): Japan SMC
    4. Inverter: Japan Yaskawa
    5. PLC: Germany Siemens
    6. Touch screen: Japan Digital
    7. Rotary coder: Japan Omron
    8. Photoelectric switch: Japan Omron
    9. Limitation switch: Japan Omron
    10. Photoelectronic switch (felt deviation): Germany
    11. Low voltage electrical parts: Germany Schneider
  5. Packing
    1. About 2 containers (40')
