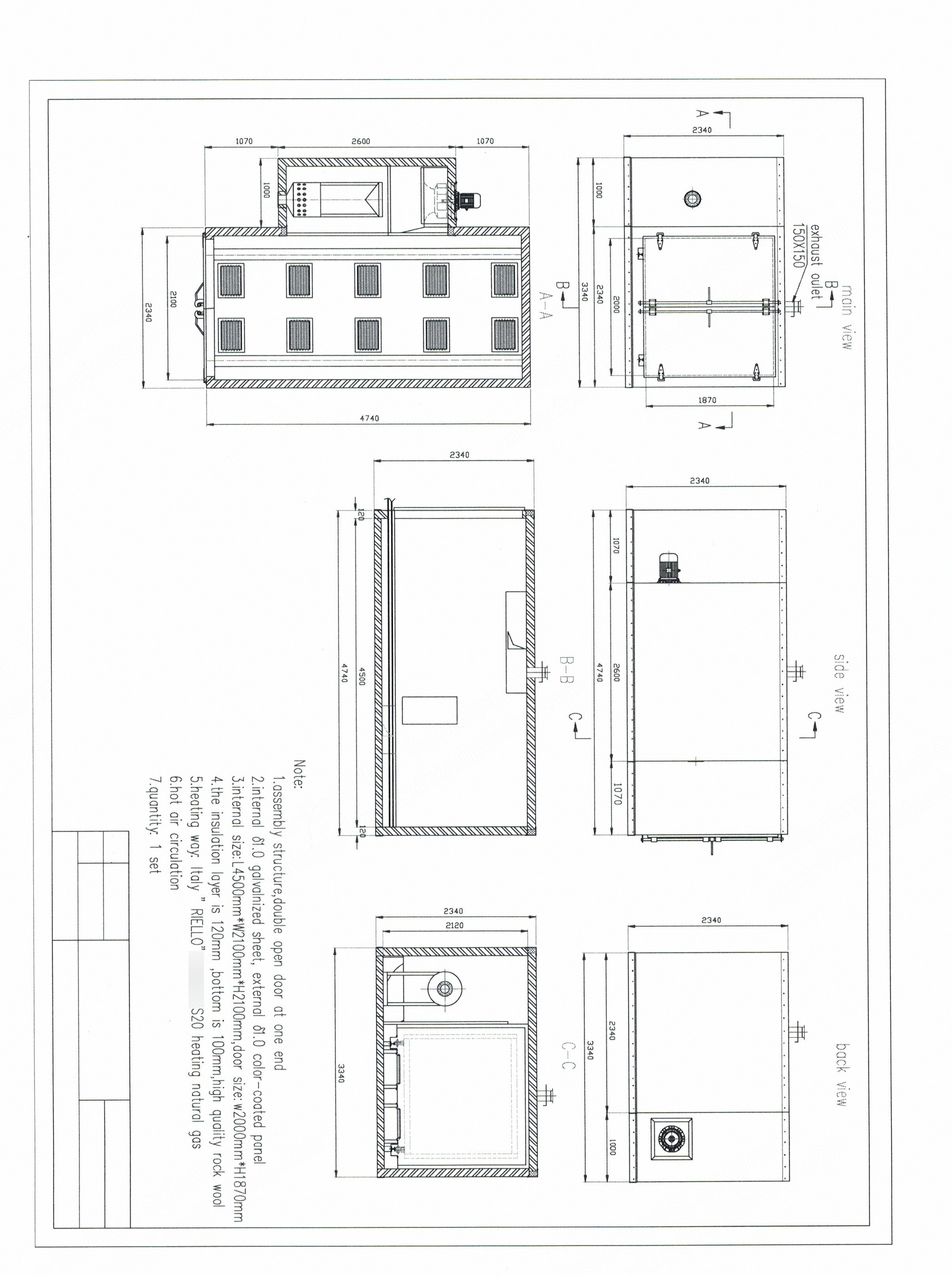

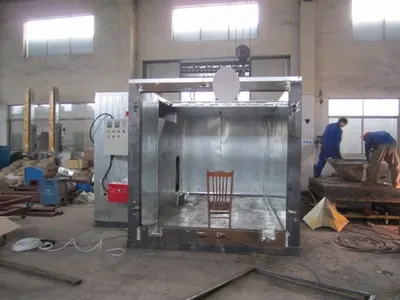

NovaStar, Sterilizing Oven for Mattresses, New, 4500x2100x2100mm, Gas Heated (New)

NovaStar, Sterilizing Oven for Mattresses, New, 4500x2100x2100mm, Gas Heated

Description

  1. Overview
    1. Heating system and fan are interlocked.
  2. Oven Specifications
    1. Oven body: outer plate is 1.0 mm thick coated plate, inner plate is high-quality 1.0 mm thick galvanized plate.
    2. Oven insulation layer: 120 mm thick high-quality wool.
    3. Heating type: gas heated with hot air circulation system.

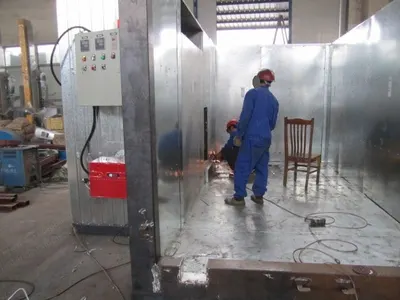

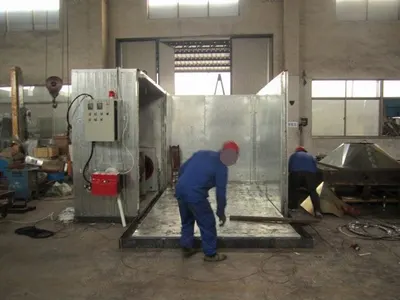

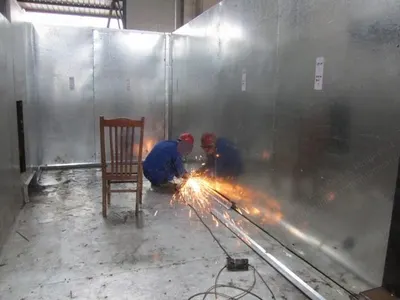

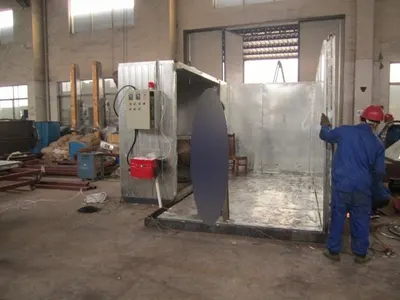

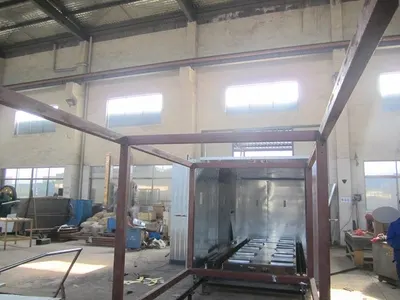

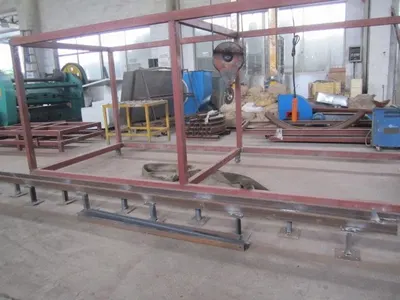

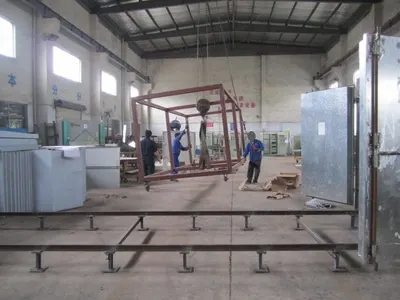

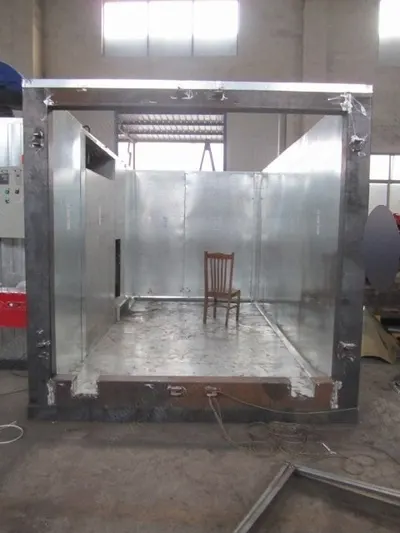

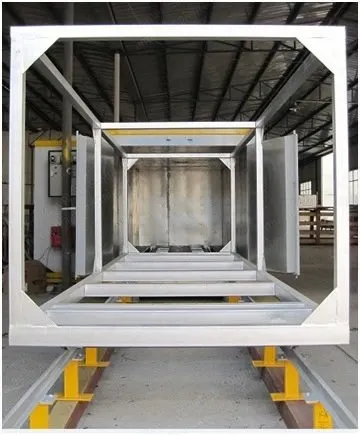

    4. Structure: assembly structure.
    5. Oven internal size: (L) 4500 x (W) 2100 x (H) 2100 mm (84" x 84" x 177").
    6. Oven temperature: room temperature to ≤200 °C (450°F maximum).
    7. Door structure: double-door at one end.
  3. Heating System
    1. Fuel gas heating exchanger: 3 mm thick stainless steel plate.
    2. Fuel gas burner: 200,000 kcal, GS20, Italy Riello.
    3. Fuel gas insulation box: 200,000 kcal.

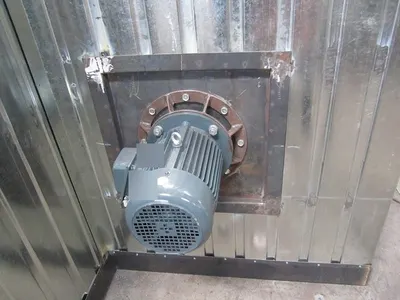

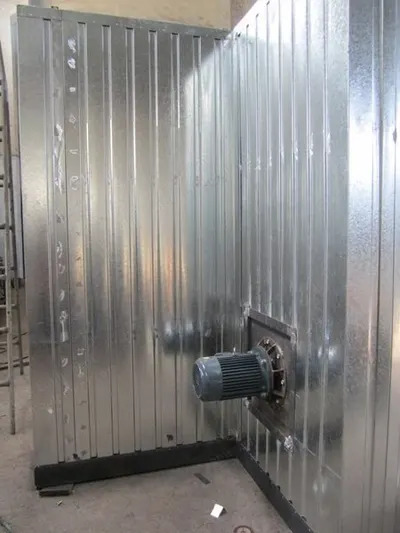

    4. Hot air circulation fan: special 5#, speed 1450 r/min, air volume 4800 m³/h, power 2.2 kW.
    5. Exhaust fan: axial flow type.
    6. Discharge waste air pipe: 1 mm thick galvanized plate, length 6 meters (240").
  4. Electrical Control
    1. Voltage per customer request.
  5. Equipment Configuration
    1. Oven body: temperature 180-200°C, rock wool insulation thickness 120 mm, outer plate Δ=1.0 mm color-coated plate, inner plate Δ=1.0 mm galvanized plate.
    2. Fuel gas heating system: includes stainless steel heat exchanger, fuel gas burner (Italy Riello, GS20), circulation fan and air tube (special 5#), fuel gas insulation box, exhaust fan and tube (BT35 axial flow).
    3. Electric control.
