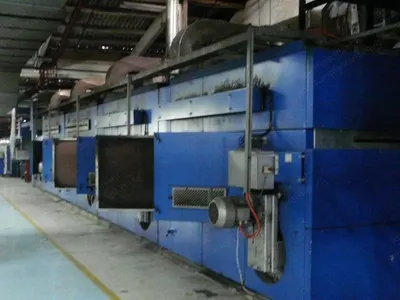

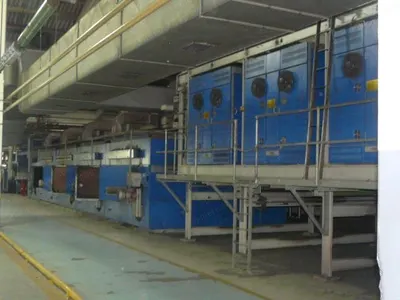

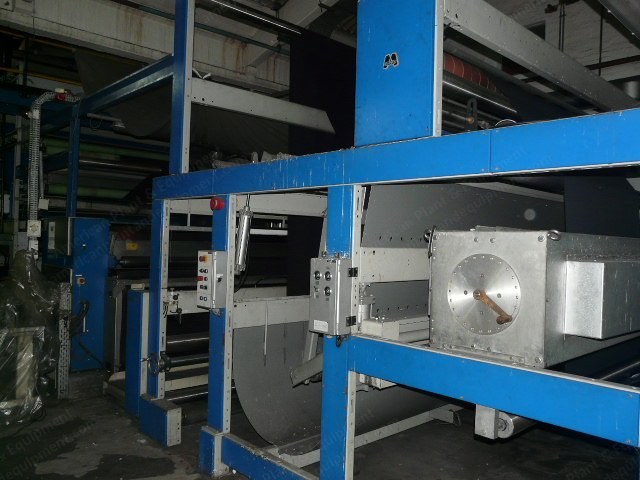

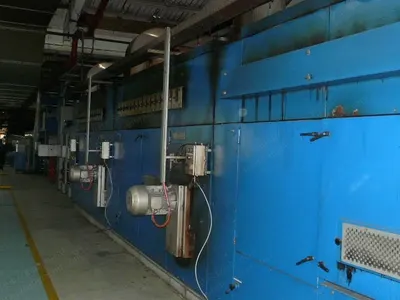

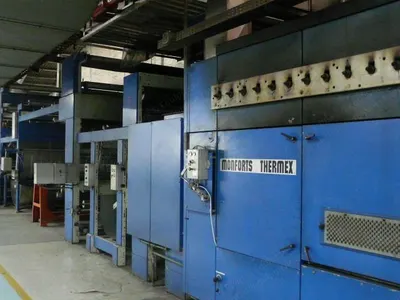

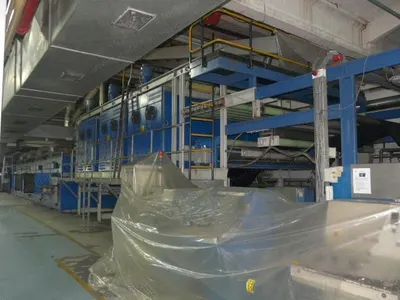

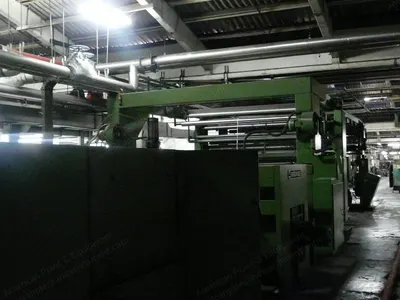

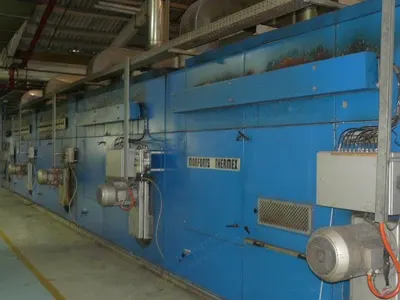

Description Overview Width: 3400 mm Two dye padders Radiant electric infrared pre-dryers Hot flue drying and thermosol Fabric tension from compressed air compensator rollers and load cell Made from stainless steel and painted mild steel Ac motors and drives from Lenze and B&R with a Siemens S7 PLC Automated computer control Components Monforts brushing and suction unit for lint removal Erhardt and Leimer guiders – air controlled Scray maximum content 800 mts Kusters narrow width dye padder at 1.6 mts fabric width, 1.8 mt roller width Kusters wide width dye padder at 3.2 mts fabric width, 3.4 mt roller width Air pressure activated at the sides with oil pressure to the center Pleva AF 310 3 head moisture measurement Water bath Automated braking of roller Electric infra red pre-dryer from Radiant Processors, 4 banks with 3 rows of panels in each bank Pleva AF 110 1 head moisture measuring with recorder Monforts Thermex hot flue B-B-B-B, each B segment has 34 mts content, 14 transport rollers with 960 mm vertical roller distance Each B segment has 2 circulating fans with air volume throttles set by hand Circulating oil heaters with automatic temperature control Fabric temperature measurement via Mahlo pyrometer 4 water-cooled cooling cylinders Scray a maximum of 800 meters Erhardt and Leimer guiders – air controlled
