NovaStar, IM108, Injection Blow Moulding Machine, 180kn Clamping Force, 0.05 to 6L Volume (New)

NovaStar, IM108, Injection Blow Moulding Machine, 180kn Clamping Force, 0.05 to 6L Volume

Description

  1. Overview
    1. End product: pet/pp/pe/pc
    2. Volume: 0.05 to 2.5l (2 cavity) 3 to 6l (1 cavity)
    3. Maximum length: 360mm
    4. Maximum diameter: 180mm
  2. Mould Plate
    1. Maximum mould plate dimensions: 160mm x 240mm
    2. Clamping force: 180kn
    3. Mould opening stroke (adjustable): 200mm

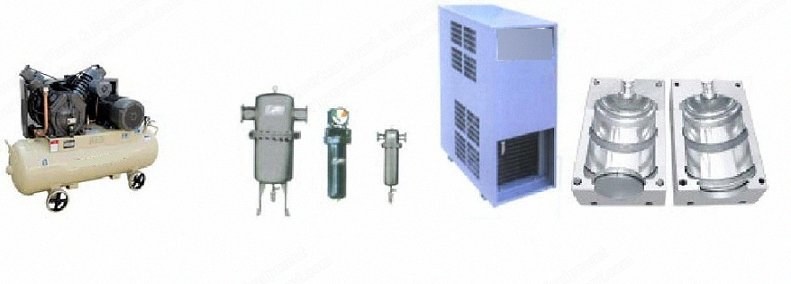

  3. Auxiliary
    1. High pressure compressor: 1.2/3.0m³mpa (1 set)
    2. Precision air filters: 1.0/3.0m³mpa (2 pcs)
  4. Main Machine Electricity
    1. Per customer request
  5. Machine Size and Weight
    1. Blow unit dimensions: 1.53m x 0.6m x 2.0m
    2. Blow unit weight: 0.6 t
    3. Pre heater dimensions: 1.80m x 0.50m x 1.16m
  6. Safety
    1. Auto-emergency alarm with interlocking device
