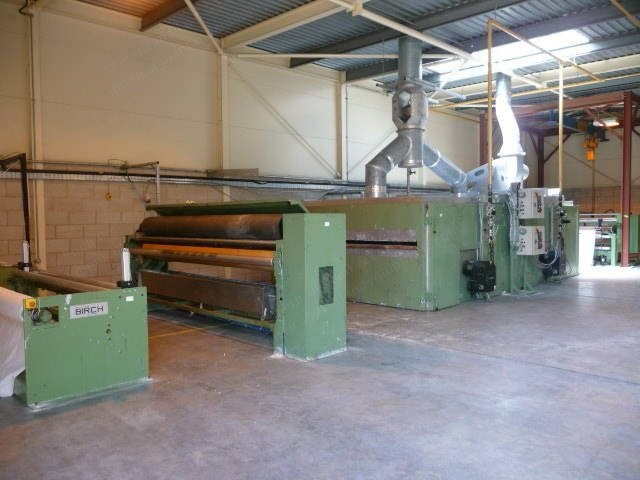

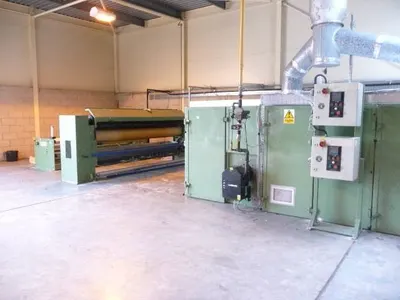

James Bailey, Fabric Coating, Impregnating and Drying Line, 1996, 2500mm Working Width, 2 Gas Burners, Birch Slitter

James Bailey, Fabric Coating, Impregnating and Drying Line, 1996, 2500mm Working Width, 2 Gas Burners, Birch Slitter

Description

  1. Overview
    1. James Bailey/Birch fabric processing line
    2. Working width: 2500 mm (max)
  2. Birch Fabric Unwinder
    1. Working width: 2700 mm
    2. Input on card tube
    3. Max roll diameter: 1000 mm
    4. Expansion bar for fabric on rolls
  3. Impregnation Padder
    1. Working width: 3300 mm
    2. Single roller coating/impregnation trough
    3. Squeeze rollers
    4. A coating head could easily be inserted at this point

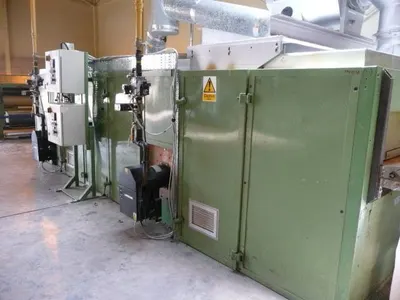

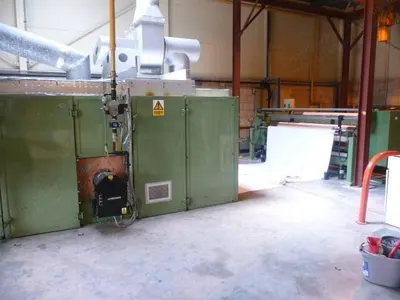

  4. James Bailey Dryer (Relax)
    1. Working width: 2500 mm (max)
    2. Height of entrance: 6 cm
    3. 2 gas burners
    4. Fabric drying on both sides
    5. Carried on air
  5. Birch Fabric Slitter/Winder
    1. Working width: 2500 mm
    2. Expansion bar
    3. Fabric measure
    4. 2 x slitting heads
    5. Rolled onto card tubes
    6. Hoist and structure
