Products: broilers with a live weight of min. 1000 to max. 2600 grams
For optimal results, weight variations within the flock may not exceed +/- 200 gr
Shackle pitch: 152 mm
Capacity: 2500 products per hour
Working hours: 8 hours per day, 5 days per week
Scalding process: soft scald, approximately 50 °C
Final product: fresh
Utilities
Electricity: 220/380 V 3-phase 50 Hz
Water: 300-500 kPa, unless stated otherwise
Air: 700-800 kPa, unless stated otherwise
Steam: 700-800 kPa, unless stated otherwise
Killing And Plucking Line Scope Of Supply
Stork overhead conveyor, heavy duty type
Switchbox for one 2.2 kW motor, complete with transformer, speed regulator, safety device against overload and three emergency stop connections (new)
74 meters hot dip galvanized track T-profile (new)
5 vertical bends up/down (new)
73 meters of hardened manganese steel chain in galvanized execution (new)
490 complete trolley sets with double bearing-mounted plastic wheels and aluminum made trolley halves (new)
8 meters of stainless steel shackle guide (new)
Suspension material, hot dip galvanized execution for attaching the overhead conveyor to the existing roof or steel structure by means of welding, for a conveyor length of 74 meters and a maximum height of 4 meters (new)
1 frequency controlled drive of 2.2 kW complete with driven bend and reduction gear box (new)
1 track tensioner with 180 bend in a galvanized frame, fitted with safety device by means of a sensor (reconditioned)

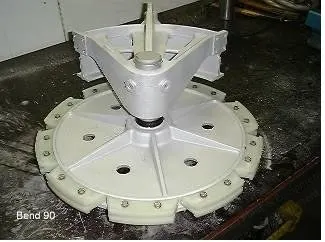

7 horizontal bends of 90 (new/reconditioned)
4 horizontal bends of 180 (reconditioned)
Track length: approx. 74 meters
Trolley/shackle pitch: 152 mm (6)
490 reconditioned Stork killing shackles, DH type, made entirely of stainless steel, complete with suspension rod and stainless steel connection chain

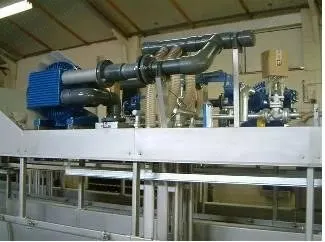

1 reconditioned Stork automatic scalder SA type, compact section construction and powerful agitation by means of air blower, portals for mounting overhead conveyor, low energy and water consumption, heating by hot water elements, temperature control by means of servo-controlled thermostat with digital read out, automatic water level control, condensation canopy with hinged side panels, stainless steel construction

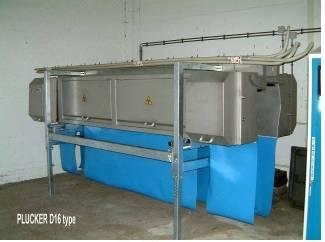

1 reconditioned Stork automatic plucker D16 type, suitable for various types of poultry, per plucking box two rows of 16 plucking finger disc each, 10 fingers per plucking finger disc, shackle guide made of synthetic material and feather discharge curtains made of stainless steel, low noise level, easy cleaning
1 reconditioned Stork automatic plucker F104 type, suitable for various types of poultry, four plucking banks, eight fingers per plucking finger disc, shackle guide made of synthetic material and feather discharge curtains made of stainless steel, low noise level, easy cleaning
1 reconditioned Stork automatic unloading station, DL type, for unloading legs or whole products, contains no driven parts, made primarily of stainless steel
Eviscerating Line Scope Of Supply
Stork set of hand tools for the processing line (new)
Killing knives: 6
Neck skin slitters: 6
Opening scissors: 6
Eviscerating forks: 6
Bent gizzard trimmers: 6
Butcher's irons: 6
Stainless steel gloves: five-fingered
To be ordered in quantities of six each
