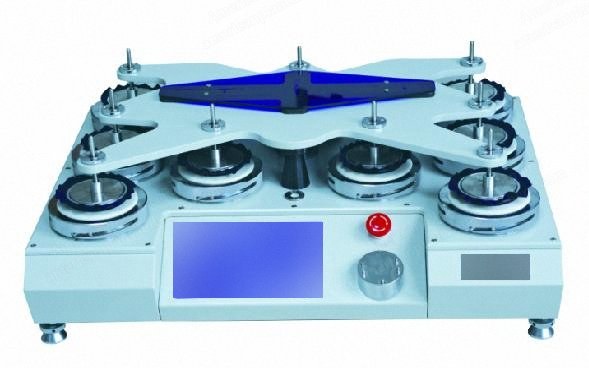

NovaStar, MC120, Fabric Abrasion Tester, 9 Working Stations, 220V (New)

NovaStar, MC120, Fabric Abrasion Tester, 9 Working Stations, 220V

Description

  1. Overview
    1. Used to test the wearability under certain pressure of woven fabrics, knitted fabrics, and non-woven fabrics
    2. Also applicable for testing the pilling properties under slight pressure
    3. 9 working station number
  2. Counter Display
    1. Pre-set counter display: 0 to 999999
    2. Cumulative counter display: 0 to 999999
  3. Wear Test Pressure
    1. Cloth-sample gripper: 200 gr +/-
    2. Cloth samples hammer: 395 gr +/- 2 gr
    3. Furniture, decorations sample hammer: 594 gr +/- 1 gr
  4. Loading and Abrading Specifications
    1. Loading drag weight: 2385 gr +/- 10 gr
    2. Abrading table diameter: 120 mm
    3. Grinding diameter of the effective friction: abrasion test diameter 28.8 mm, pilling test diameter 90 mm
  5. Speed
    1. 23.8 +/- 2.5 rpm
    2. 47.5 +/- 2.5 rpm
    3. 71.3 +/- 2.5 rpm
  6. Dimensions and Weight
    1. External dimensions: 820 mm x 605 mm x 365 mm
    2. Weight: 168 kg
  7. Features

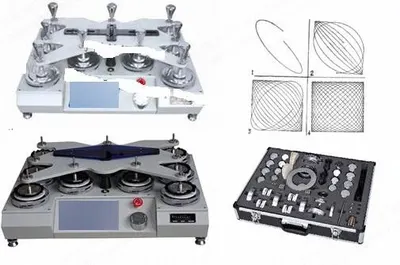

    1. Machines with two lissa-jous trajectory, and a reciprocating linear track, but can also do a round tracking movement
    2. Using touch-screen operation, the operation can control all working positions; the counts show that there is a corresponding LCD display, convenient operation
    3. Six operational procedures could be pre-set, may do repeated one single procedure, three different speeds could be set
  8. Hardware
    1. Import mitsubishi frequency control system (inverter, AC motor)
    2. Large-screen LCD touch screen
    3. Dedicated accessory box containing: (3) 14 diameter ball, (3) activities cover, (3) drive shafts, (9) diameter 140 standard friction fabric SM25, (9 for each) diameter 140, diameter 90 (2~3) wool felt, (9 for each) diameter 42, diameter 140 fabric sample, (9) diameter 42*3 polyurethane foam, (1) mounted hammer-like pressure, (1) ll sha-ru trajectory curve pen, (1) diameter 42 sample templates, (1) diameter 142 sample templates, (1) diameter 42 mirror panel, (9 group) 198 gr cloth sample gripper (diameter 28.8), (9 group) 155 gr cloth sample gripper (diameter 90), (1) cloth sample clip stands, (9) cloth sample holder pins, (9 for each) fama 9 kpa, 12 kpa, 260 gr, (1) positioning cover (circular experimental track)
