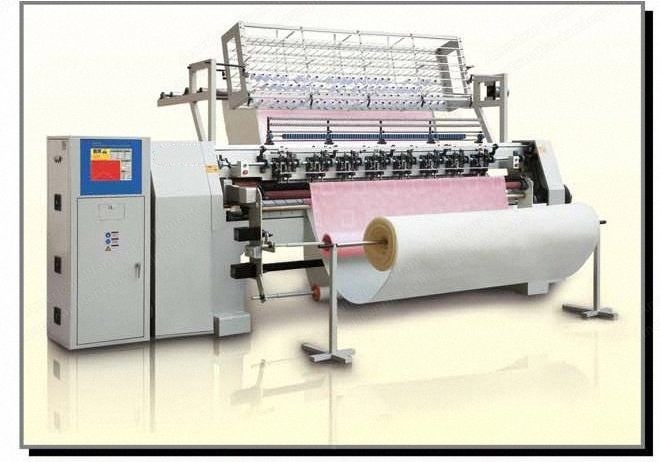

NovaStar, QL129, Computerized Chain Stitch Multi-Needle Quilting Machine, 3300mm Working Width (New)

NovaStar, QL129, Computerized Chain Stitch Multi-Needle Quilting Machine, 3300mm Working Width

Description

  1. Overview
    1. Lockstitch; tack and jump
  2. Specifications
    1. Dimension (L*W*H): 5100 mm x 1150 mm x 1800 mm
    2. Width of quilting: 3300 mm (QL129 inches)
    3. Space between needle bars: 76.2, 152.4
    4. Space between needles: 25.4
    5. X-axis movement distance: 305
    6. Thickness of quilting: ≤20
    7. Length of step: 2~5
    8. Speed of production: 20~90
    9. Model of needle: 16#, 19#
    10. Speed of main shaft: 450
    11. Power: 4.5 kW
    12. Gross weight: 3300 kg
    13. Voltage: 380 V / 50 Hz and 220 V / 60 Hz
  3. Included Components
    1. Machine: 1
    2. Computer box: 1
    3. Screen: 1
    4. Industrial computer: 1
    5. Material supporter: 4
    6. Stand: 1
    7. Supporter (set): 1
    8. Thread frame: 1
    9. Thread-frame supporter: 2
    10. Material bar: 3
    11. Strap wheel: 3
    12. Nip cloth wheel: 4
    13. Triangle belt: 2
    14. The bar of set out material: 2
    15. Ged line: 2
    16. Bobbin (shuttle): 300
    17. Bobbin bar (shuttlesticks): 150
    18. Hopper: 1
    19. Thread break auto-stop: QL129
    20. Voltage stabilizer: 1
    21. Wound thread: 400
    22. Took kit: 1
    23. Inner hexagonal key (used to adjust the various screws): 1 (M2.5, M3, M4, M5, M6, M8, M10, M12)
    24. Needle (#16, #19): 500
    25. Seton hook: 100
    26. Screwdriver: 2
    27. Operation manual: 1
    28. Given oil equipment: 1
    29. Oil can: 1
    30. Wrench: 5
    31. Adjustable wrench: 1
    32. Steel wire nip: 1
    33. Even file: 1
    34. Scissors: 2
    35. Crochet hook bar: 4
    36. Even file: 1
    37. Main-shaft belt: 1
    38. Rear lead bracket: 45
