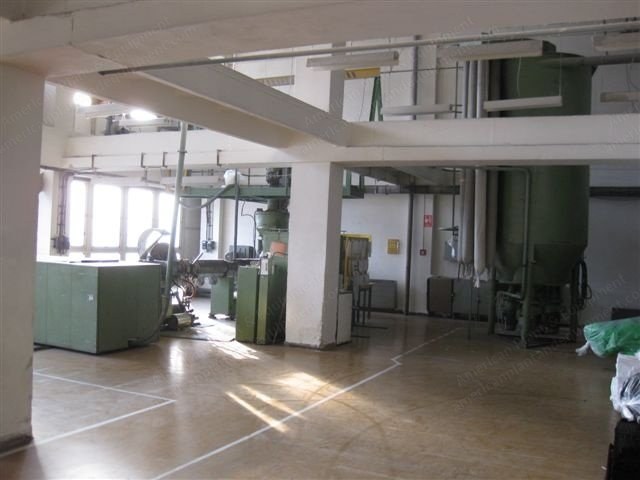

Davo, Recycling Line, 1980, 100mm Screw Diameter, 132 kW Main Drive, with GS 500/800 Granulator

Davo, Recycling Line, 1980, 100mm Screw Diameter, 132 kW Main Drive, with GS 500/800 Granulator

Description

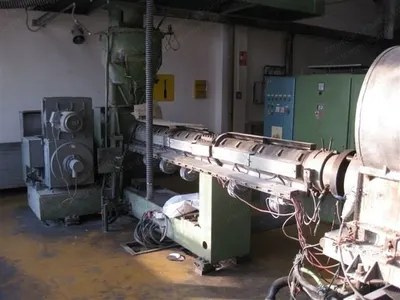

  1. Extruder Overview

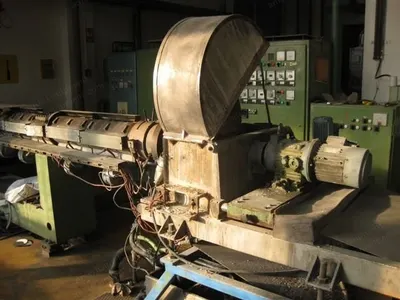

    1. With cut granulator
    2. Main drive motor type: FGL 250-31-4
    3. Main drive motor: 132 kW
    4. Main drive motor rpm: 2200
    5. Reduction ratio: 1:10
  2. Extruder Specifications
    1. Screw diameter: 100 mm
    2. Screw length: 30 D
    3. Rpm range: 18.8 to 178.3 min-1
    4. Screw cooling: none
  3. Screw Barrel
    1. Heat draw: 30 kW
    2. Heat zones: 5
    3. Heat capacity per zone: 0.77 kW
    4. Cooling zones: 5
  4. Wedge Closing Device
    1. Heat capacity: 2.4 kW
  5. Extruder Dimensions
    1. Overall length: 4020 mm
    2. Overall width: 1700 mm
    3. Overall height: 2120 mm

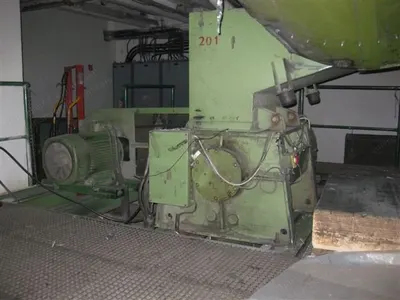

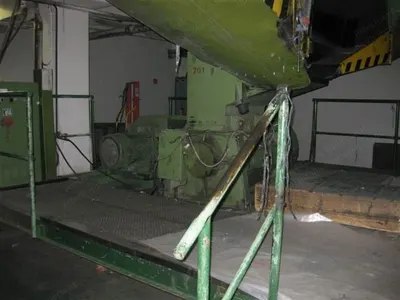

  6. Granulator Model Gs 500/800 Specifications
    1. Rotor drive: 3-phase asynchronous motor, 45 kW
    2. Rotor drive rpm: 720 min
    3. Electricals: 380 V / 50 Hz
  7. Granulator Fan
    1. 3-phase ac motor: 5.5 kW
    2. Electricals: 380 V / 50 Hz
    3. Overall pressure: 240 kp/m2
    4. Air volume: 3570 mc/h
  8. Granulator Rotor
    1. Length: 800 mm
    2. Diameter: 500 mm
    3. Number of knives: 5
    4. Rpm: 580 rpm/min
  9. Granulator Dimensions and Weight
    1. Length: approx. 3500 mm
    2. Width: approx. 1400 mm
    3. Height with feed: approx. 1570 mm
    4. Weight: approx. 3200 kg
    5. Feed opening size: 815 x 400 mm
