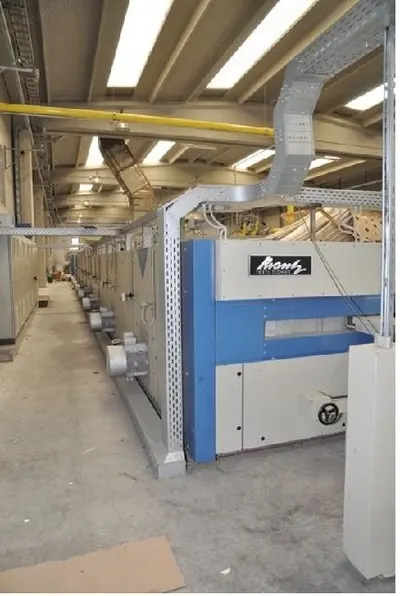

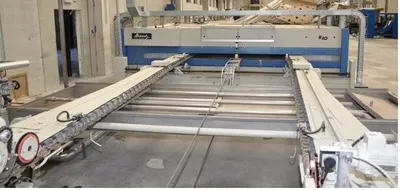

Krantz, Tenter Frame, 2005, 3600mm Working Width, 8 Chambers, Gas Heated, Pin Chain

Krantz, Tenter Frame, 2005, 3600mm Working Width, 8 Chambers, Gas Heated, Pin Chain

Description

  1. Overview
    1. Main use: knitted fabrics
    2. Maximum working width: 3600 mm
    3. Number of chambers: 8
    4. Heating system: gas
    5. Chain: pin chain horizontal
  2. Entry Section
    1. Padder Moenus
    2. Weft straightener Bianco
    3. Entry field: 6 meters
    4. Center support
    5. Steaming section
    6. Edges glueing system L&R
  3. Chambers
    1. 8 chambers
    2. Length 3 meter per chamber
    3. Burner per chamber: 1
  4. Exit Section
    1. 2 cooling blower sections
    2. Cutting for left, right and center
    3. Rolling for small rolls
    4. Plaiter system (flat folder)
    5. Batching arm
  5. Condition
    1. Machine is stopped on mill floor in good condition
    2. Ready for delivery
