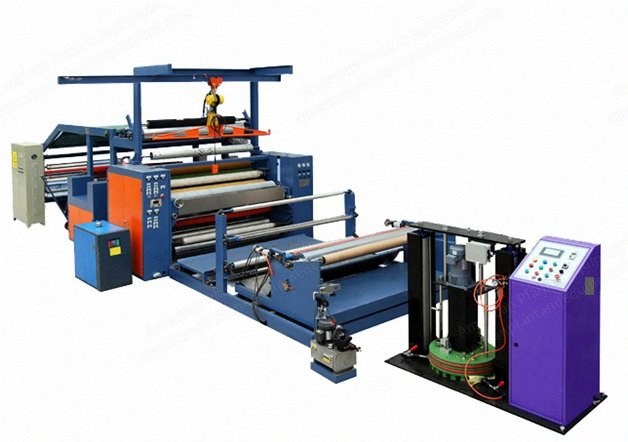

NovaStar, CG114, Fabric Lamination Machine, 65 inch Unwind Width, Gravure Transfer Coating, 0 to 60 yds/min (New)

NovaStar, CG114, Fabric Lamination Machine, 65 inch Unwind Width, Gravure Transfer Coating, 0 to 60 yds/min

Description

  1. Overview
    1. Gravure transfer coating machine for hotmelt lamination.
    2. Single-side lamination; the fourth product can be laminated one side first, then the reverse side in a second step.
    3. Can be used for clothing and footwear fabric with PTFE, TPU, PE composite; fabric with fabric composite.
    4. Various composite for any kinds of textile and non-textile fabric, including tatting, knitting, non-textile fabric, foam, PVC and filter material used in industry.
  2. Specifications
    1. Model number: D-075
    2. Machine dimension: 10600 × 3000 × 3200 mm (L × W × H)
    3. Motor: 4 kW + 2.2 kW (2) + 1.5 kW (5) + 75 kW
    4. Capacity: 0 to 60 yds/min
    5. Electricity input: 480 V / 60 Hz / 52 kW
    6. Weight: GW 12500 kg, NW 13000 kg
    7. Unwind width: 65 in
    8. Gluing mode: scraper baffle plate
    9. Power of boiled oil: 24 kW
  3. Applications
    1. Clothing: outdoor sportswear, military camouflage uniforms, fire and police clothing, health care apparel, underwear, etc.
    2. Other kinds: use for shoes fabric, insole, home textiles, car roof decoration, car door fabric layer, cement dust filter.
  4. Features
    1. Free of solvent for all melt adhesive, is the ideal green glue.
    2. Hot melt adhesive does not contain water. No need oven dry, fast speed of composite.
    3. Wet-solid reaction in complex process, irreversible, firm adhesion, washability.
    4. Strong stickiness, save with the resin content, save cost.
    5. Full linkage control in composite processes, substrate without stretching, soft and light, touch feeling is good.
    6. The hot melt adhesive is independently, glue melt is sufficient with fast speed.
    7. Punctiform and overlapping curve coating, good air permeability, strong three-dimensional sense.
    8. Humanist design, can save operators.
