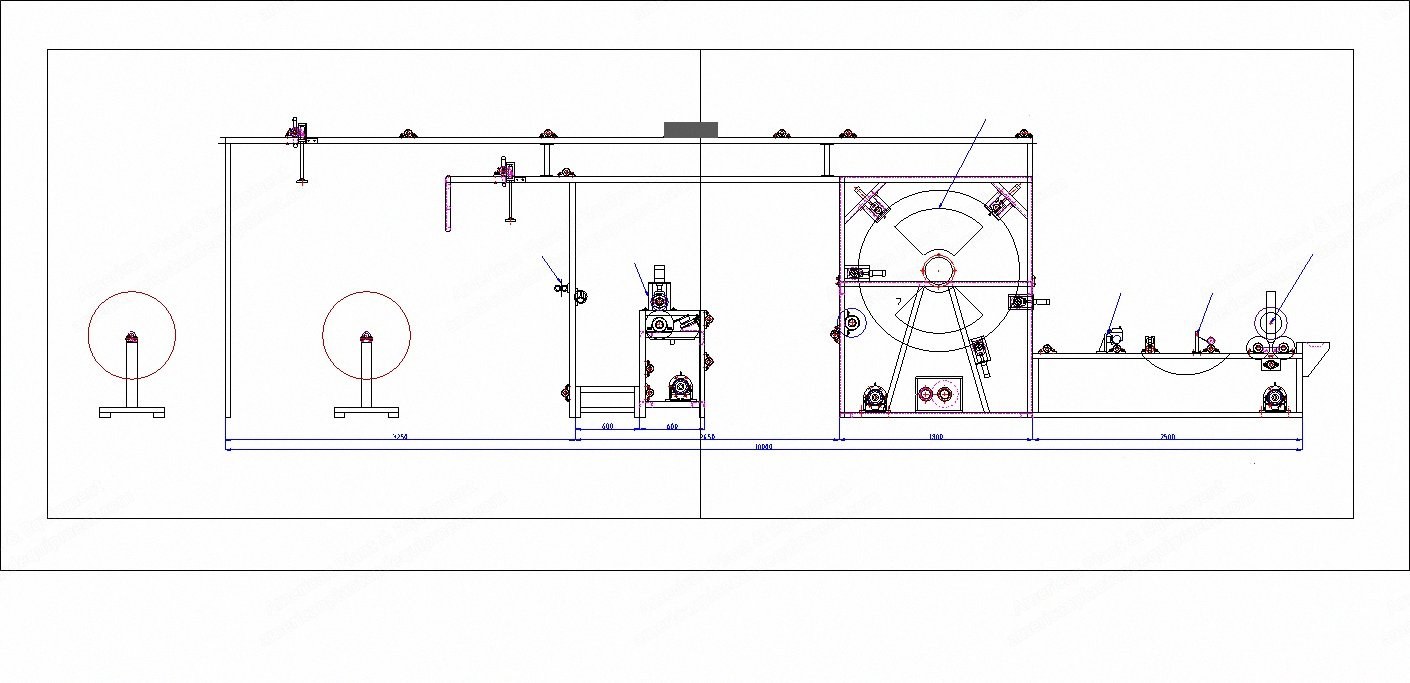

The rubber rollers use silicone rubber material, 160mm in diameter
The rubber rollers are controlled by the pneumatic system
Finishing scraper, limit stopper at both sides
The system is controlled by a 1.5kW cycloidal needle wheel type motor
One working table, 4 fabric guide rollers
There is one glue tank under the engraved roller made of stainless steel
The system supporters are made of 12# channel steel
Laminating system
The diameter of big drum is 1500mm (60 inches), the width of the drum is 2100mm
High temperature thermal oil heated (between sandwich layers of the big drum) which maintains the surface temperature evenly
The rollers coated with PTFE
30 electric heating tubes, each 2kW, total power 60kW
Automatic constant temperature inside the drum, the temperature is controlled by SCR module
Two types of materials are laminated by 5 rubber rollers controlled by a pneumatic system outside the drum
One cooling roller with 268mm in diameter, stainless steel swivel joint, cooled by tap-water
The system is controlled by a 2.2kW cycloidal needle wheel type motor, variable frequency control
The frame is made of 100mm×100mm square pipes and 12# channel steel
Rewinding system
Equipped with one trimming device
Pinch roll automatic conveyor system
One fabric accumulator for fabric roll alternation (change over)
One automatic counter
Friction take-up system, the diameter of take-up roller is 190mm, the system is controlled by a 1.5kW cycloidal needle wheel type motor, variable frequency control
The frame is made of 12# channel steel
Included Accessories
One air-compressor
One trolley for roll exchange after rewinding
Emergency cut-off devices at both the front and end of the machine
Clear indication on the electrical panels
Fan cooling device inside the electrical panels
The production line is controlled by frequency conversion system for exact speed regulation and individual motor fine adjustment
Electric heating pipes are provided by the Spark company
Electrical appliances are partly supplied by Delixi Group
The inverter is Sino-British brand "Witten"
The motors are provided by Wuxi Zheng Fei
The SCR module is provided by Wuxi Gute
The temperature controller is provided by the Xiamen Anton
The overall units are aircraft gray color, also according to customer's requirements
