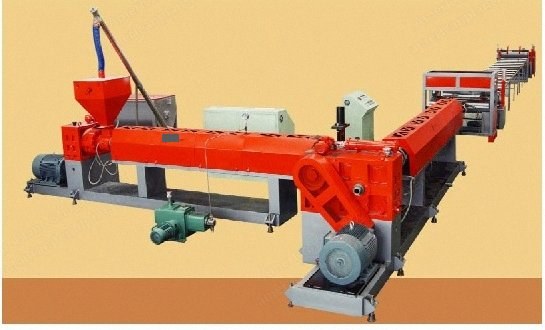

NovaStar, SF110, Expanded Polystyrene Extrusion Line, 220-300 kg/hr, 600mm Width (New)

Description

System Components
1. Feeding and mixing system
2. Primary extrusion system
3. Control cabinet
4. Metering system
5. Hydraulic screen exchanger
6. Secondary extrusion system
7. Control cabinet included for secondary extrusion system
8. Slot die (300 mm)
9. Temperature controller
10. Board calibrator (1400 x 1200 mm)
11. First haul-off system
12. Cooling roller
13. Second haul-off system
14. Cutting system
15. Margin recycling system
Specifications
1. Extruder capacity: 220 to 300 kg/hr (150 to 220 m³/24 hours)
2. Density: 30 to 48 kg/m³
3. Thickness: 20 to 100 mm
4. Width: 600 mm
5. Main raw material: GPPS (virgin or recycled)
6. Foaming agent: HCFC, HFC, etc.

Capacity	220 to 300 kg/hr (150 to 220 m3/24 hours)
Foaming Agent	HCFC, HFC, etc.
Included	['Feeding and mixing system', 'Primary extrusion system', 'Control cabinet', 'Metering system', 'Hydraulic screen exchanger', 'Secondary extrusion system', 'Control cabinet included for 2#', 'Slot die (300mm)', 'Temperature controller', 'Board calibrator (1400x1200mm)', 'First haul-off system', 'Cooling roller', 'Second haul-off system', 'Cutting system', 'Margin recycling system']
Main Raw Material	GPPS (virgin or recycled)

Width	600 mm
