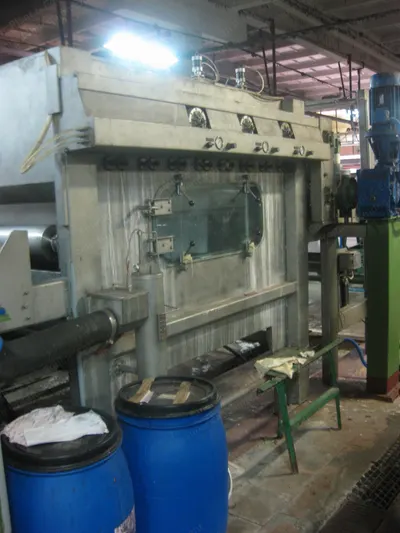

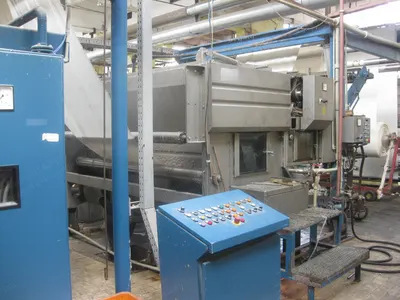

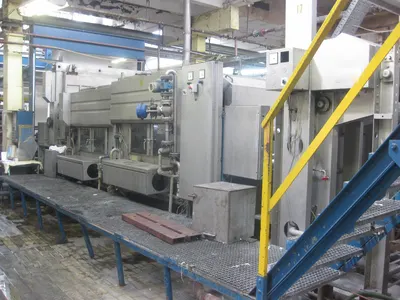

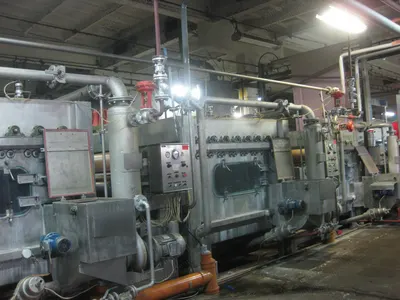

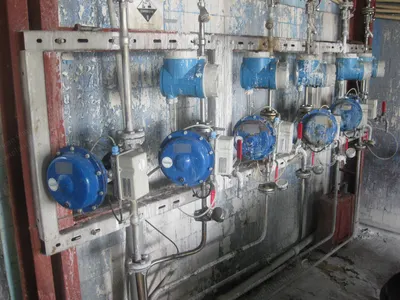

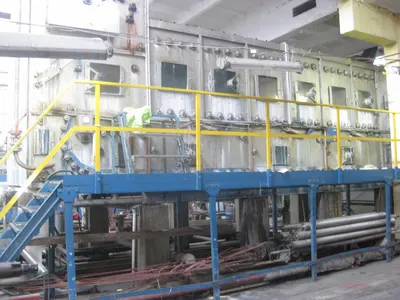

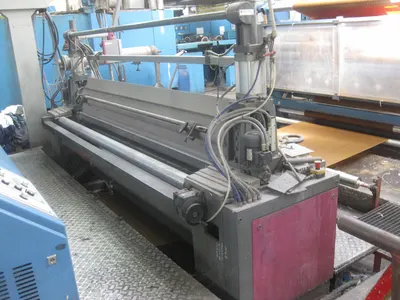

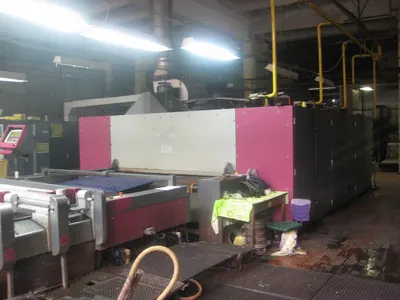

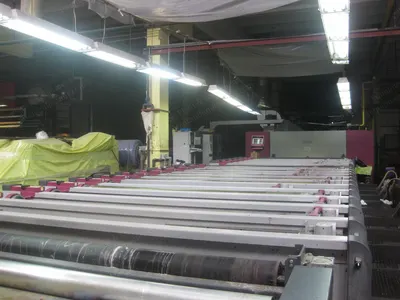

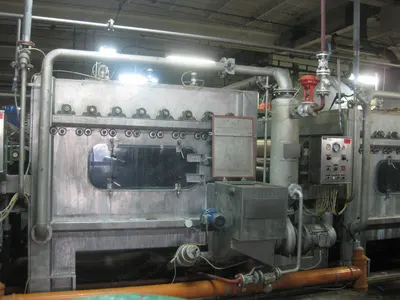

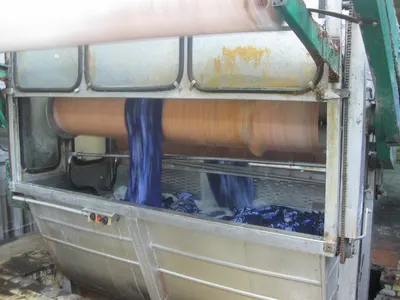

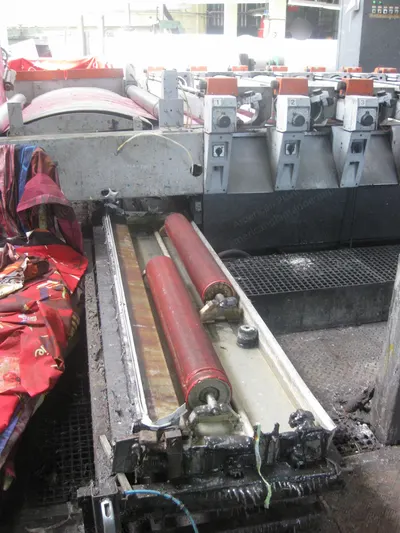

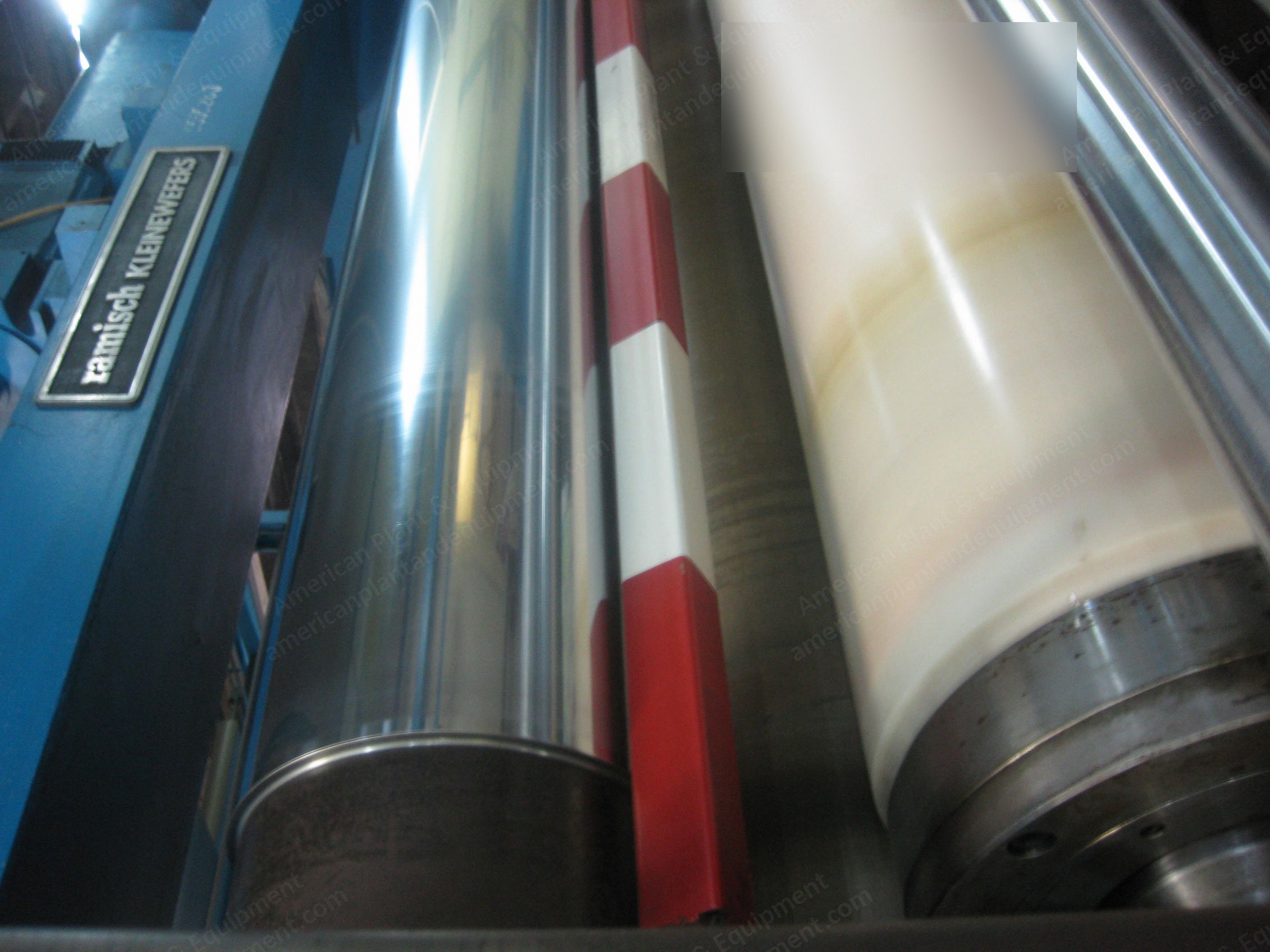

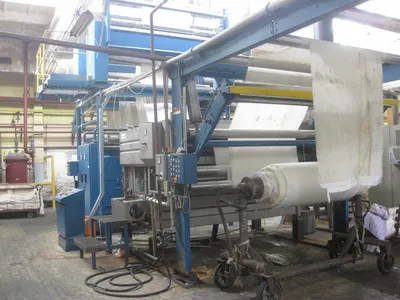

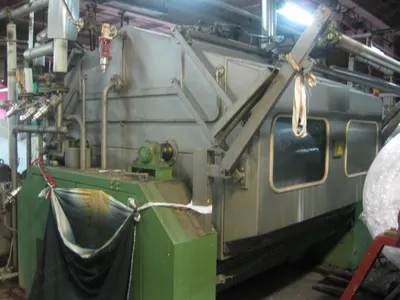

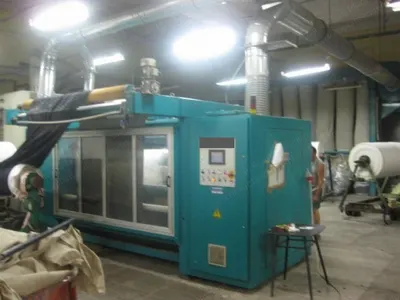

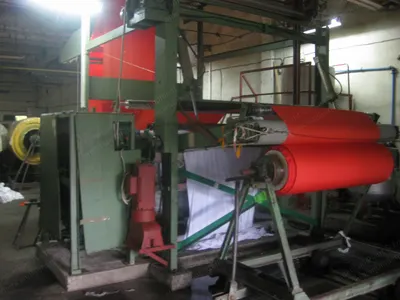

Description Overview Benninger wash line with 2600 mm working width Singeing machine Osthoff-Senge type J97 with 2600 mm working width (total roller length 2800 mm), year of construction 1999 Pre-washing De-sizing treatment Injecta (total roller length 2800 mm) Washing – 2 washing compartments Padding-bleaching bath Ben-Inpacta Steamer roller to roller 1 washing compartment Fortracta (slot system) 3 washing compartments Ben-Extracta; ph meter in the third compartment for ph neutralization of the fabric Exit on big batch Automatic dyeing kitchen – automating mixer and chemicals feeds Stenters Stenter frame Stentex with working width 900–2400 mm Heating oil 7 compartments, 2 meters each (1–2 single, 3–4 double blow, and 5 single) Feeding: foulard, Mahlo RFMC-94 H, knife coating machine Stork with foam generator FP II type 300 L, year of construction 1999, working width 2600 mm Vertical pin-clip chain Delivery: big batch roller/plaiter Table for steam supply on the fabric in front of the drying compartments Stenter frame Amdes Feeding: foulard, Mahlo RFMC-10P, 1997 Horizontal pin chain 9 compartments, 3 meters each (2 fans per compartment) Delivery: big batch roller/plaiter Raising Line – Nappers Raising machine Dante Paolo DP-99/R9000 36-2600 (double drum machine L/P), 2003 The second drum switched off Delivery on plaiter Dust extractor Working width 2400 mm (total width 2600 mm) For flannel Raising machine Sucker-Muller Polifleece Tri-24 N Working width 2000 mm For knitting fabrics One drum Year of construction 1994 Dust extractor system Brushing machine Lafer type Ultra Soft Working width 2200 mm, year 2004 Calender Calender Ramisch Kleineweffers, 1989 Working width 2400 mm 3 cylinders: metal, paper, teflon Metal detector Pressure up to 250 N/mm Delivery on big batch/plaiter Mercerizing Machine Mercerizing machine Benninger, 1999 Feeding from big batch Ben-Dimensa – foulard with clean water Ben-Dimensa – lyeing/mercerizing, 2 compartments Lye feeding from cube or from recovery system (Kasag) Water extractor Light lye Water extractor 2 washing compartments Ben-Extracta Ph meter with dosing valve Delivery on big batch Lye recovery system for the mercerizing process Kasag Export (Swiss), year of construction 2000 Printing and Steaming Stork automatic dyeing kitchen Saturn, year of construction 1999 2 reservoirs for soap feeding: P1 30 g/kg and P2 300 g/kg Recepturing software/hardware Weight and dosing system Stork printing machine Renova Pegasus RD-IV 12 colors Working width max 1650 mm 3 x 2 compartments steam dryer 3 level transporter inside dryer Stork Pegasus printing machine, year 1999 20 colors Working width 2400 mm 3 drying compartments (3 fans) Possibility for changing the screens diameter Washing of squeegees Stork steamer HS4 350 type 3600, year of construction 1999 Oil-steam dryer (also for reactive dyestuff) Embossing machine 1600–2200 mm plus beater Fabric washing on 4 haspel machines Dyeing Department Cold pad batch machine Textima, 1973 Working width 1700 mm For bleaching of linen and corduroy fabric Rotation on a big batcher Padding machine E. Kusters type 281.46-1600, year of construction 1990 Jigger Henriksen J-17-2F atmospheric, working width 2200 Jigger MCS atmospheric, working width 2000 Drying on the stenter frame or washing machine (then finishing) Washing machine velvet Washing machine MCS, 2200/SN9424, 4 washing compartments, 1995 Dryer x 2 Textima 1600/2200 with foulard and weft straightener Sanforizing machine Dhall 1600 Inspecting and Packing Inspecting and packing equipment
