Marzoli, Vouk, Complete Ring Spinning Plant, 16,800 Spindles, Carded Cotton Yarns

Marzoli, Vouk, Complete Ring Spinning Plant, 16,800 Spindles, Carded Cotton Yarns

Description

  1. Overview
    1. Total production: 100% cotton fiber and mix fibers
    2. For medium count yarn Ne 7.5/1, production in 24 hours is 29,400 kg (medium efficiency 87%)
    3. For medium count yarn Ne 12/1, production in 24 hours is 15,000 kg (medium efficiency 91%)

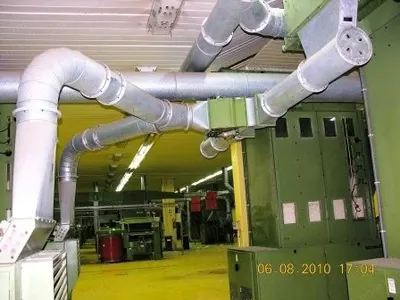

  2. Cotton Opening Line

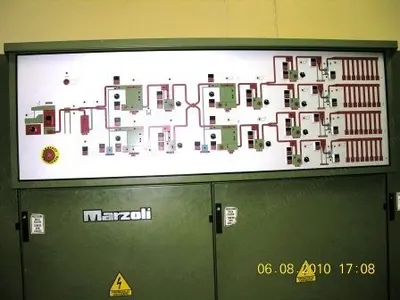

    1. 2 units, 1992-1993, Marzoli B95/4D electric board

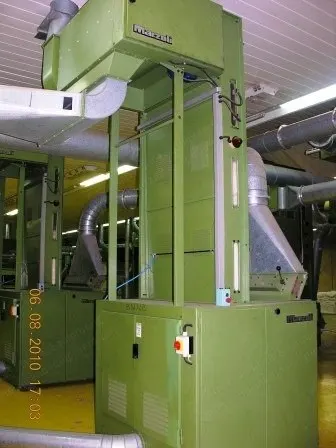

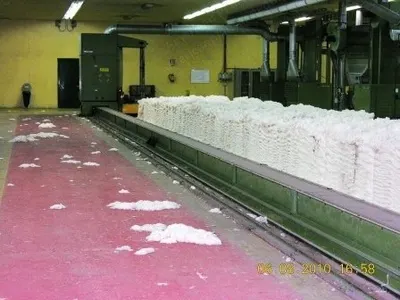

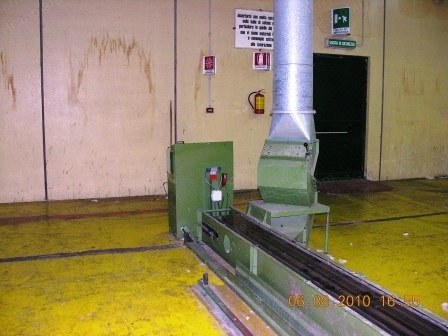

    2. 2 units, 1992-1993, Marzoli Superblender (automatic bale-plucker) model B12E, with rotating arms, collecting band 25,000 mts, plucking rollers, working width 2000 mm, 6.55 kW
    3. 2 units, 1992-1993, Marzoli metal-detector, Separamat, type

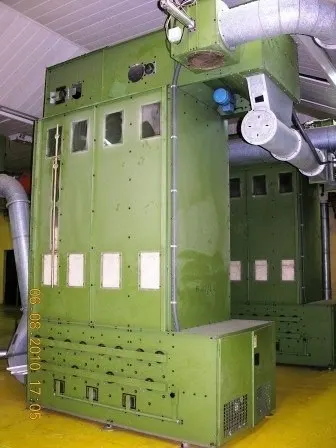

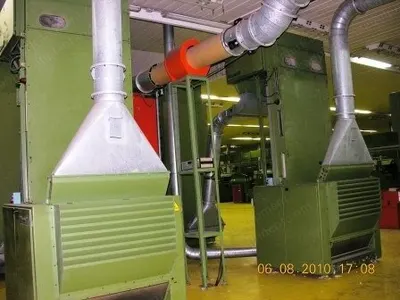

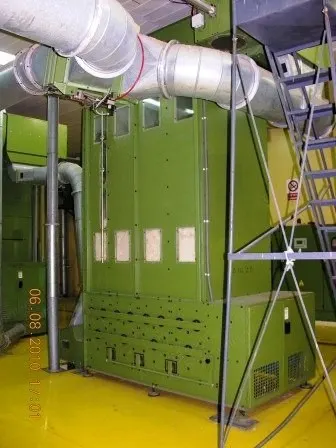

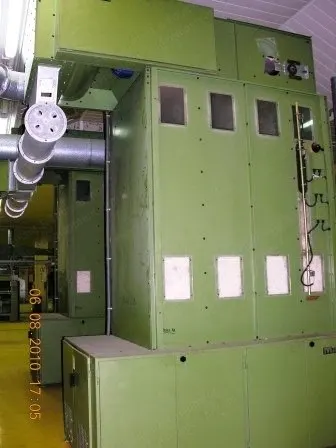

    4. 8 units, 1992-1993, Marzoli multi-mixer, mod. B142 with 4 cells, completed with Marzoli horizontal cages-condenser B41/1, photoelectric stop cells, 9.28 kW each

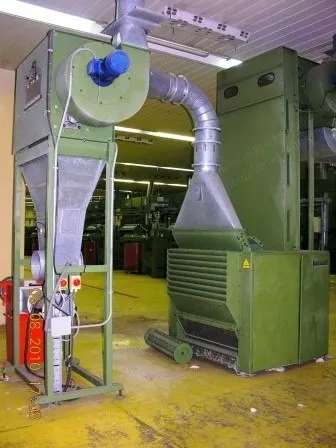

    5. 8 units, 1992-1993, Marzoli horizontal opener, model B/34, carding beater with 3 staves x4, carding beater with 8 staves x4, centralized suction scraps, completed with Marzoli cage-condenser model B41/1 each, carding reel, photoelectric stop cells, 8.20 kW each
    6. 8 units, 1992-1993, Marzoli horizontal opener, model B/34, porcupine beater x2, carding beater with 3 staves x04, carding beater with 8 staves x4, centralized suction scraps, completed with Marzoli cage-condenser model B41/1 each, carding reel, photoelectric stop cells, 8.20 kW each
    7. 1 unit, 1996, white glowing
    8. 1 unit, 1996, Jossi electronic control of sparks

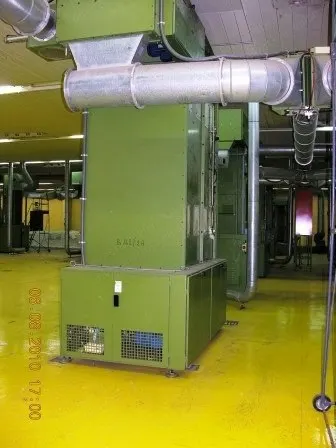

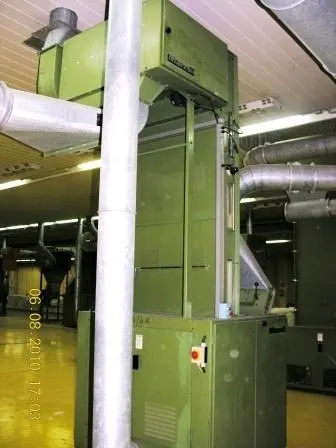

    9. 8 units, 1993, Marzoli feeding-fan for chute line, model B150, completed with Marzoli cage-condenser model B41/1 each, 8.10 kW each
  3. Carding Machines (8 Lines)

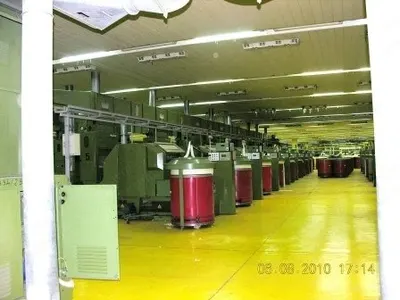

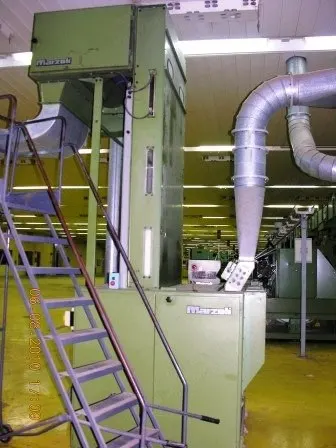

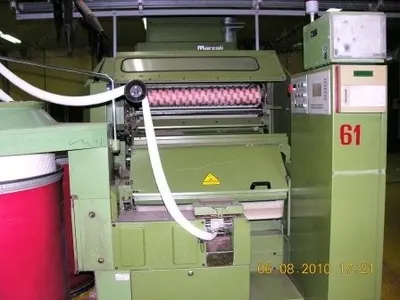

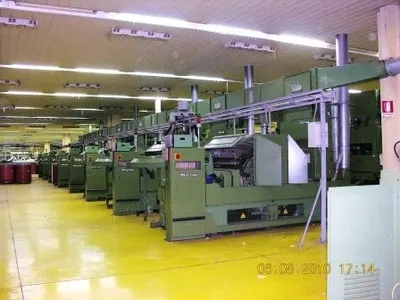

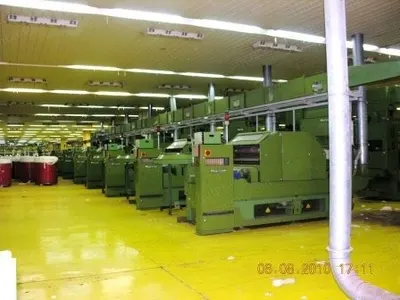

    1. 55 units, 1992-1993, Marzoli flats high production special carding-machines, model CX300, with Loepfe SLT4 autolever including, automatic cans change, safety covers, exit can-coiler 40"x48", electronic inverter power-device and microprocessor, capacity with cotton fibers 65/75 kg/hour, Marzoli chute feed B136, separate suction under cards and flats, electrical power 7.4 kW each
    2. 1 unit, 1993, Uster electronic control of sliver data
  4. Draw Frames (1st Passage)

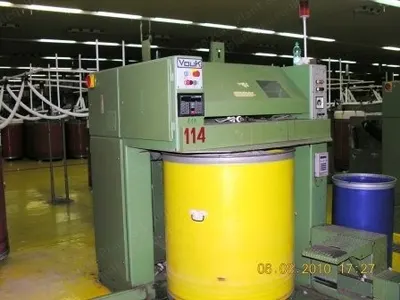

    1. 16 units, 1993, Vouk draw frames model SH1/4 EC1, 1 head, automatic cans change, exit 1 can 40"x48", creel feeding cans 40"x48" with 4+4 couplings, cylindered type 3 of 4, draw pneumatic pressure, draw speed 350 meters/m
  5. Draw Frames (2nd Passage)
    1. 9 units, 1993, Vouk draw frames model SH2/DCC E, 2 heads, automatic cans change, exit 2 cans 40"x48", creel feeding cans 40"x48" with 4+4 couplings, cylindered type 3 of 4, draw pneumatic pressure, draw speed 350 meters/m
  6. Roving Frames

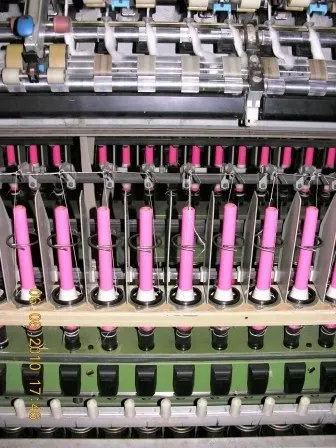

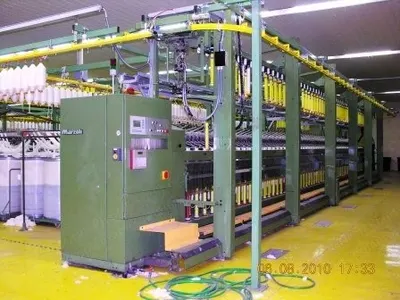

    1. 6 units, 1992, Marzoli roving frames, model BCX16, 120 spindles each, flyer driven by belts, spool-size 6"x16", drawing group with 4 cylinders, with SKF PK 1500 drafting, automatic-doffing
  7. Utit Automatic System for Bobbins

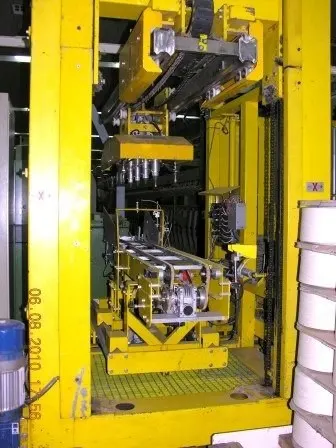

    1. 1 unit, 1993-1992, Utit automatic system for bobbins, from automatic doffing roving frames to feeding ring spinning frames
  8. Ring Spinning Frames (Link-Coners)

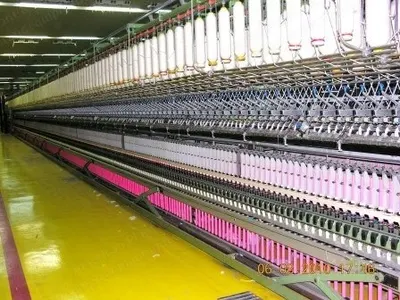

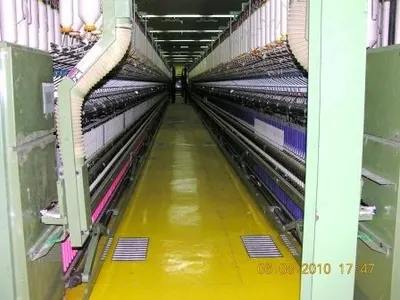

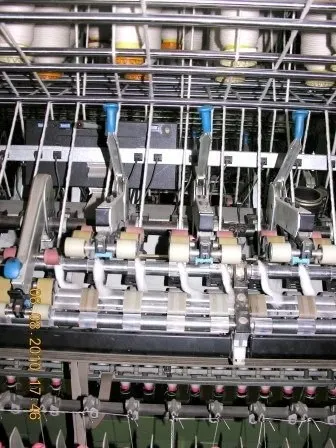

    1. 20 units, 1993-1992, Marzoli ring spinning frames models NSF2/L, 840 SKF spindles (180 mm) each, ring diam. 54 mm flange 1, gauge 75 mm, max. speed 15/19,000 rpm, tube 260 mm x 22 mm diam. (140/150 gr), Marco Polo automatic doffing, cylinders diam. 27-30-27 mm, high draw system arm SKF PK 235, feeding creel for spools 6"x16" - 6 lines of bobbin holders, Magitex suction air-jet travelling cleaner for each machine
  9. Winders Machines (Link-Coners)

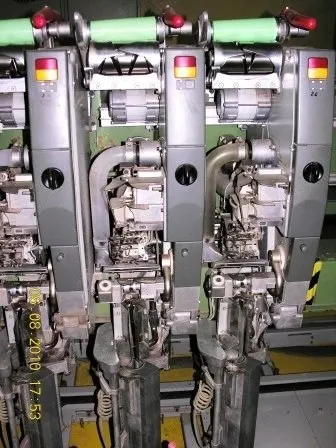

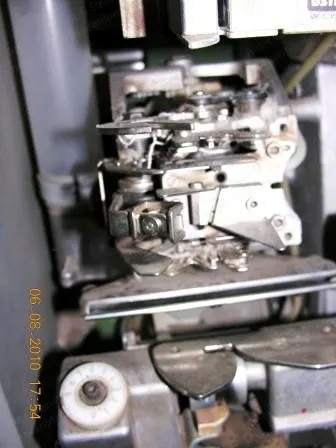

    1. 20 units, 1993-1992, Schlafhorst type SYS 238 SJ DX winding machines, 26 heads 4°20, with information system, with waxing device and jointing splicers, with clearer Uster type MKC30, travelling cleaner Magitex
    2. 20 units, 1993-1992, Caipo type CSM 90, electronic slub yarn

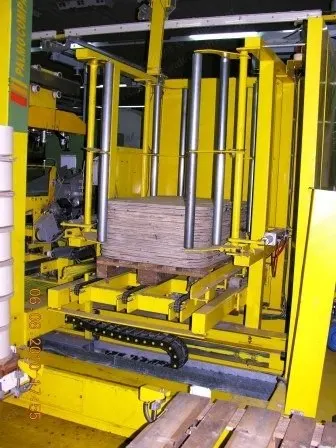

    3. 2 units, 1993-1992, Utit & Sipi, automatic system for storage (palletizing) and packing cones yarns

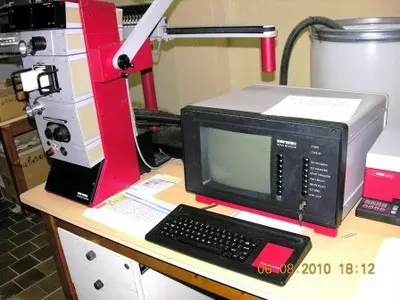

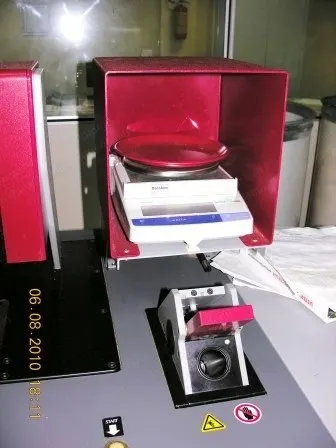

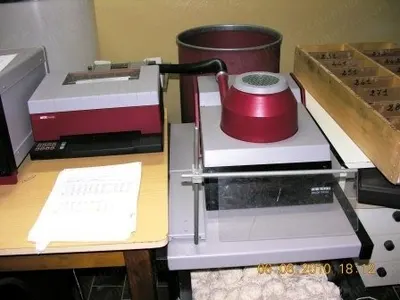

  10. Laboratory

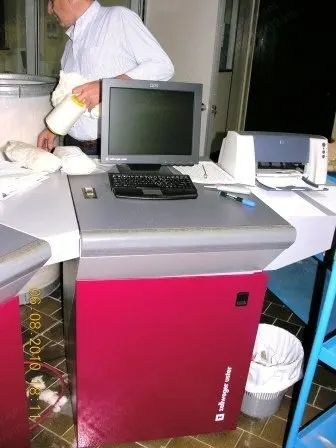

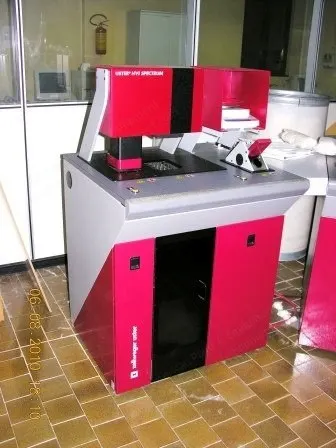

    1. 1 unit, 1993, H.V.I.
    2. 1 unit, 1992, Tensorapid

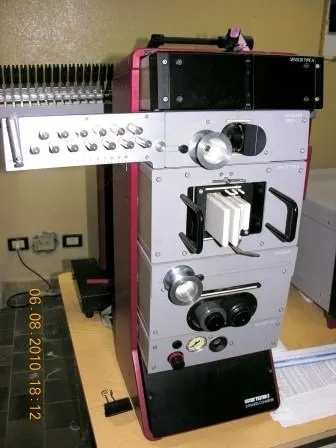

    3. 1 unit, 1993, Testertre
    4. 1 unit, 1991, Classimat
    5. 3 units, 1990, Kenia press
    6. 3 units, 1990, Trane chillers
    7. 1 unit, 1990, Air conditioner plant
  11. Specifications
    1. Total electrical power installed: 1550 kW (11 megakW/1 year)
    2. Working temperature: 27/28°C and 70/75% humidity
