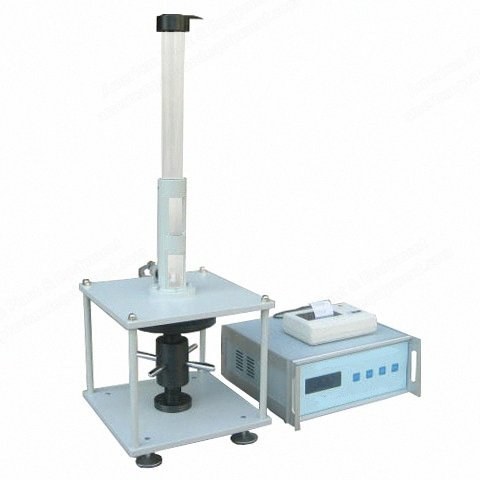

NovaStar, MC123, Digital Foam Falling Ball Resilience Testing Machine, ASTM D3574 / ISO8307 Standards, Microprocessor Control
Scroll to zoom
100%
Description
Overview
Model: MC123
Main functions: The machine is designed and manufactured in accordance with the American standard ASTM D3574 and ISO8307 test standard. It is applicable to the determination of flexible polyurethane foam of the ball rebound performance. It tests the resilience by a quality and given ball, setting the ball fall down on the foam sample and calculating the specific value of maximum height of ball rebound and ball drop height. This gives the test result is resilience. This machine uses microprocessor control, LCD display, and can print the test data. This machine has the use of safe, reliable, measurement accuracy.
Main Technical Parameters
Height of steel ball fall range: 460 ± 0.5% mm (GB) 500 ± 0.5% mm (U.S. standard)
Steel ball diameter: ￠16 ± 0.05 mm
Precision ball drop resilience: <1.5%
Sample size: 100 mm (L) × 100 mm (D) × 50 mm (H)
Automatic calculation of the average rebound height
Automatic computation average snapping back rate
Main Configuration
Main machine (includes the release part, catching part and height adjusting part)
A set of electro-optical distance sensor
Control box set
A micro-printer (desktop)
