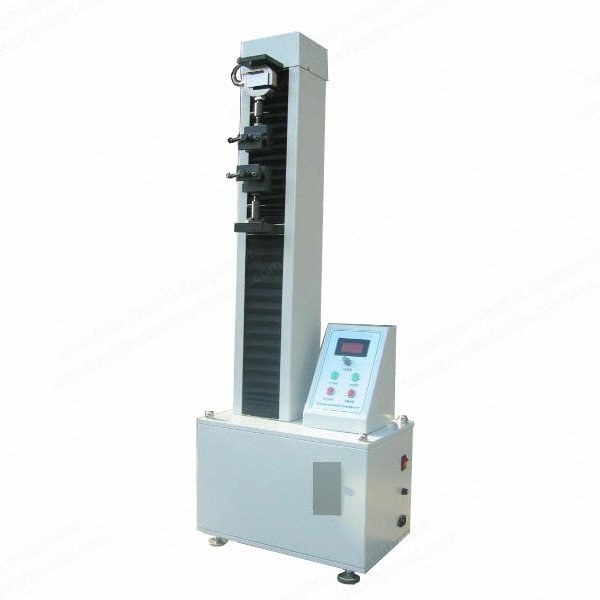

Description Overview Model: F-053 Designed and manufactured in accordance with GB/T6344-1996, GB/T10808-2006, and ISO8067:1989 standards. Suitable for determination of soft foam polymer tensile strength, elongation at break, and split foam material properties. Includes a microcomputer control system, LCD display, and character printer. Touch button operation for ease of use. Main Technical Parameters Test accuracy: ±1% of displayed value (selectable ±0.5%). Force resolution: 1/30000. Test speed: 0.05–500 mm/min. Speed precision: ±1% of displayed value (selectable ±0.5%). Deformation precision: ±0.5% (FS). Effective tension space: ≥850 mm (specific dimension can be extended as requested). Effective test width: 400 mm or 550 mm (specific dimension can be extended as requested). Overload protection: automatic protection if over safe load 10%. Platform safety device testing: e-limit protection. Test station return function: after the test, automatically or manually returned to the initial position. Main Configuration Main machine. High accuracy ball bearing guide screw, high strength feed rod, servo system. A high-precision S-form sensor (1000 N). Two tensile fixtures (specific types can be determined in the user test). A single chip controller (LCD display). A micro printer.
