Bematic, MTV, Dilo Wadding Plant (Fiber Fill), 2500mm Working Width

Description

Overview
1. Complete nonwoven line consisting of the following components

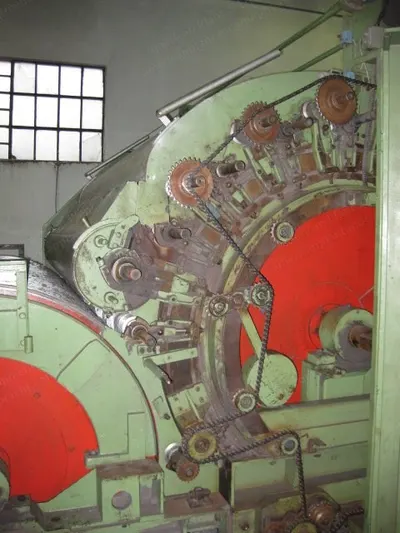

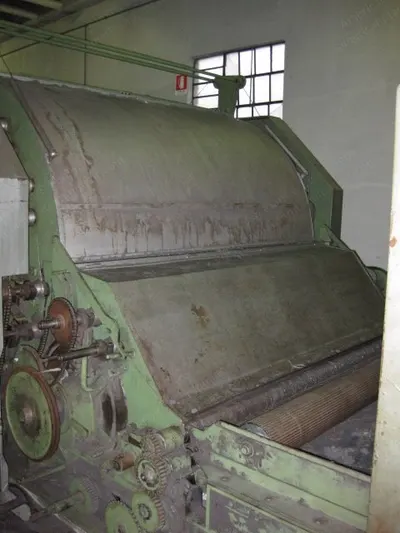

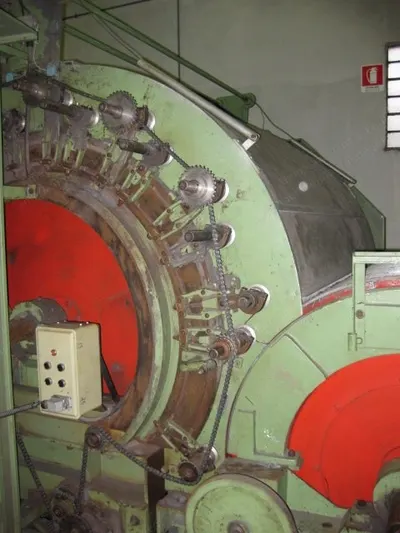

Carding
1. Bematic card with working width 2500 mm (100 inches)
2. Cylinder inlet, doffer complete with fly comb
3. Conveyor belt for cross lapper connection
4. Motors for the worker and stripper cylinders

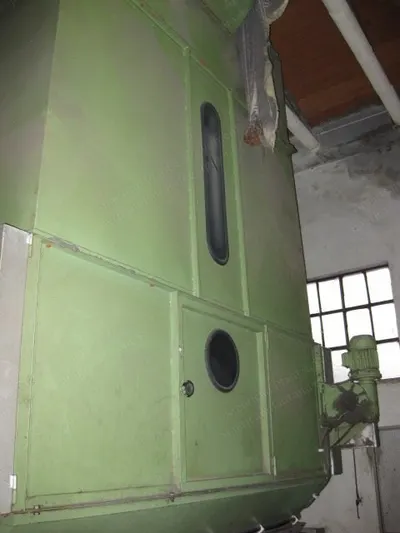

Hopper Loader
1. Hopper loader with silo controlled by photocell
2. Including magnet
Cross Lapper
1. Make: MTV
2. Working width 2200 mm (84 inches)
3. Outlet speed 50 m/min
Needling Machine
1. Make: Dilo
2. Working width 2400 mm (88 inches)
3. 300 needles per linear meter
4. Including feed
Apron Cutting Machine
1. Make: MTV
2. Working width 2200 mm (90 inches)
3. Complete with side selvage cutting system and one central blade
Wadding Rolling Unit
1. Winder working width 2200 mm (88 inches)
Control Panel
1. General control panel

Included	['1 - Bematic Card Working Width 2500mm', '1 - Hopper Loader with Silo', '1 - Cross Lapper Make MTV Working Width 2200mm', '1 - Needling Machine Make Dilo Working Width 2400mm', '1 - Apron Cutting Machine Make MTV Working Width 2200mm', '1 - Wadding Rolling Unit Winder Working Width 2200mm', '1 - General Control Panel']

Rolling Unit Working Width	2,200 mm
Working width	2,200 mm
