NovaStar, IM109, Max. 100L Capacity, 400 kN Clamping Force, 100mm Screw Diameter (New)

NovaStar, IM109, Max. 100L Capacity, 400 kN Clamping Force, 100mm Screw Diameter

Description

  1. Overview
    1. Extrusion blow molding machine model IM109 with a maximum container capacity of 100 L.
    2. Spring autoloader model SD-400 with a capacity of 400 kg/h.
    3. Bus seat mold made of 45# steel with dimensions (W x H) 600 x 400 mm.

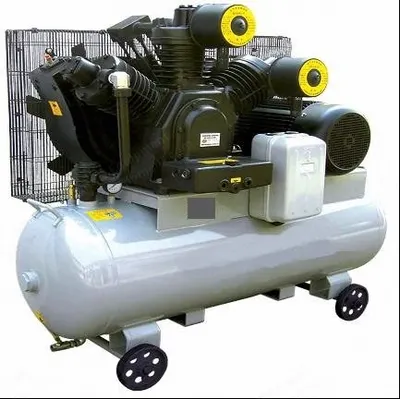

    4. Air compressor model CW-2.0/10 with 2 m³/min at 1.0 MPa and a 0.35 m³ tank.
    5. Plastic mixer brand Shijin with a capacity of 200 kg/h.
    6. Plastic crusher model F-600B with a capacity of 500-600 kg per hour.
    7. Air tank 1 m³ at 10 bar (1 m³ at 1 MPa).
    8. Water tower with a capacity of 16 tons.
  2. Technical Parameters
    1. Maximum container capacity: 100 L.
    2. Number of die heads: 1 set.
    3. Machine dimensions (L x W x H): 6.5 x 3.3 x 4.2 m.
    4. Total weight: 13 tons.
    5. Clamping force: 400 kN.
    6. Platen opening stroke: 400-1200 mm.
    7. Maximum mold size (W x H): 900 x 1200 mm.
    8. Mold thickness: 410-600 mm.
    9. Maximum drive power: 11 kW.
    10. Total power: 85 kW.
    11. Fan power for screw: 0.72 kW.
    12. Air pressure: 0.7 MPa.
    13. Air consumption: 0.9 m³/min.
    14. Average energy consumption: 28 kW.
    15. Screw diameter: 100 mm.
    16. Screw L/D ratio: 25:1.
    17. Plasticizing capacity: 160 kg/hr.
    18. Number of heating zones (extruder): 4 zones.
    19. Extruder heating power: 20 kW.
    20. Extruder driving power: 37 kW.
    21. Number of heating zones (accumulator head): 5 zones.
    22. Power of die heating: 18 kW.
    23. Maximum die-pin diameter: 400 mm.
    24. Accumulator volume: 15 L.
  3. Main Components

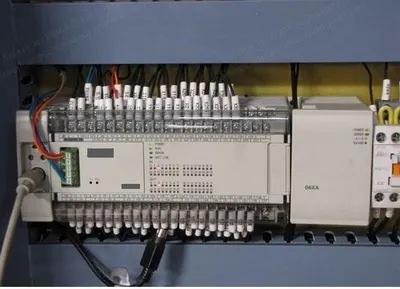

    1. PLC programmable controller: Delta.
    2. Touch screen: Delta.
    3. Oil pump: Sunny.

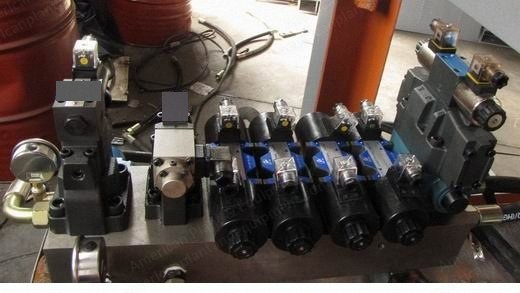

    4. Proportional valve: Jingji.

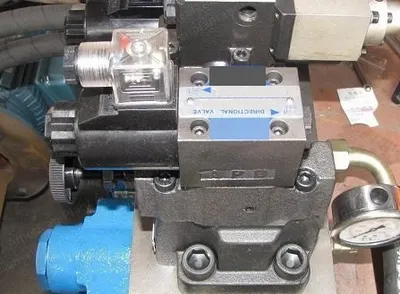

    5. Hydraulic valve: Danxin.
    6. Parison programmer controller: Moog.
    7. Contactor (switch): Schneider.
    8. Contactor (switch): LG.
    9. Converter: Tianzheng.
    10. Time relay: Omron.
  4. Condition and Remarks
    1. Screw and die head material: 38CrMoAla.
    2. 30-point Moog parison controller.
