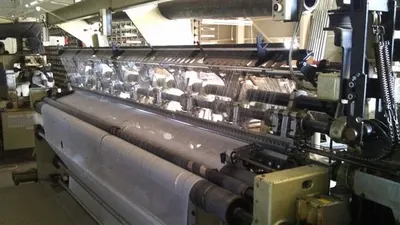

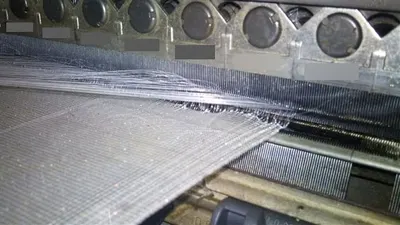

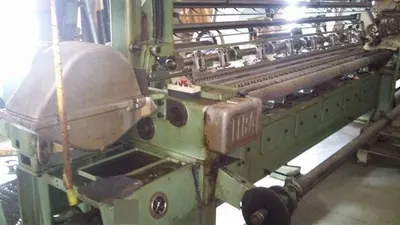

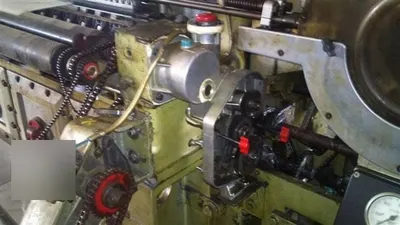

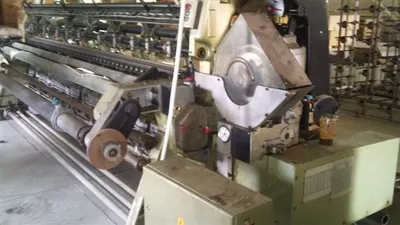

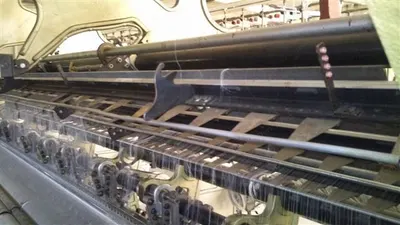

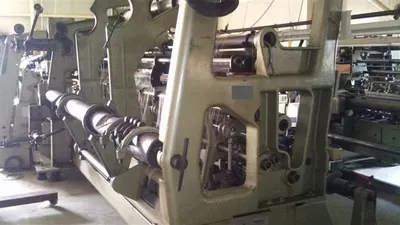

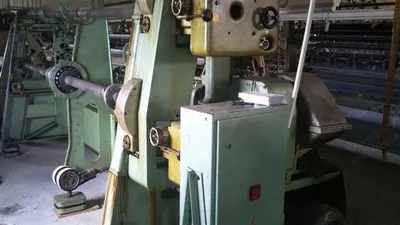

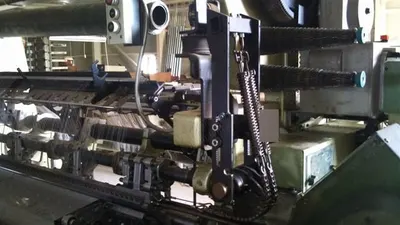

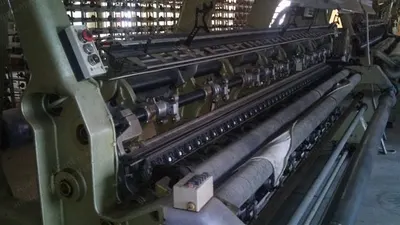

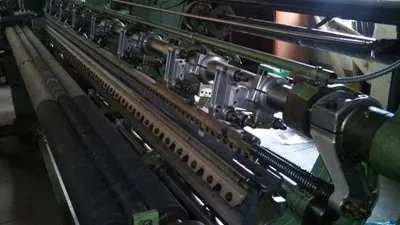

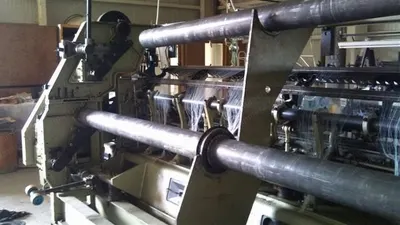

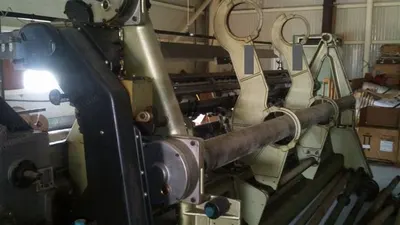

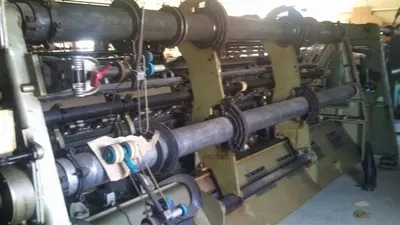

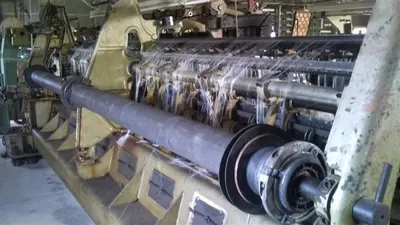

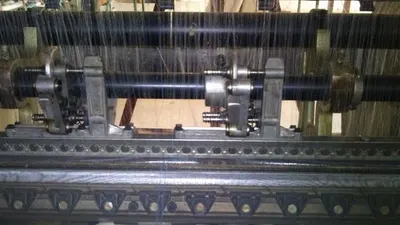

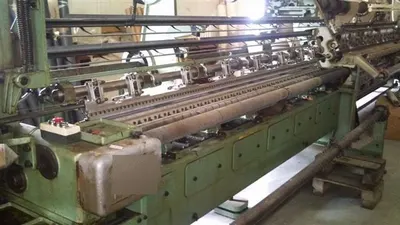

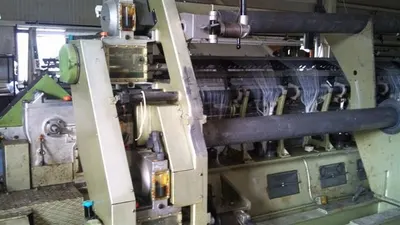

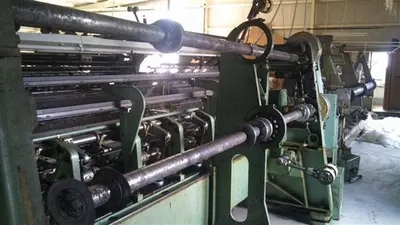

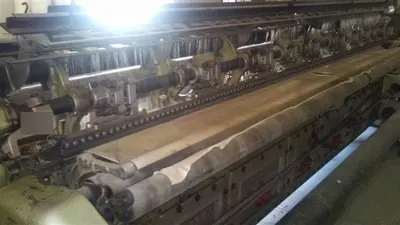

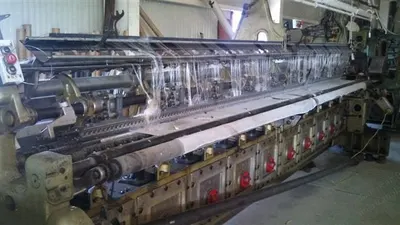

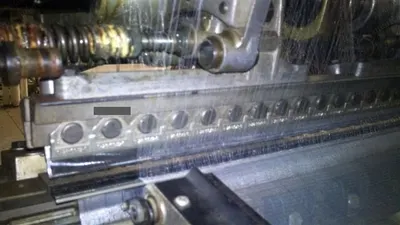

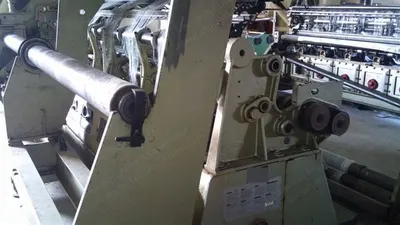

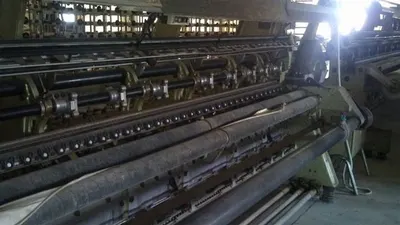

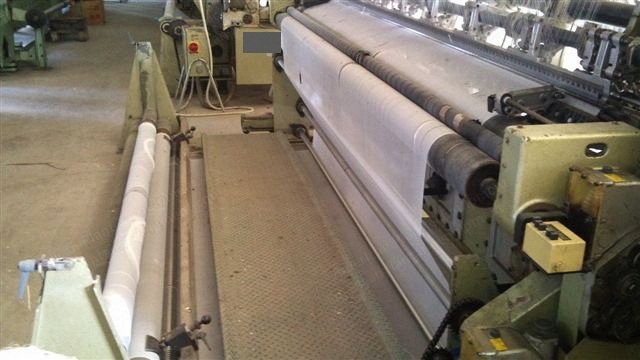

Karl Mayer, Warp Knitting Machines, 130 to 168 Inch Width, 28 to 32 Gauge

Karl Mayer, Warp Knitting Machines, 130 to 168 Inch Width, 28 to 32 Gauge Sold

Description

  1. Overview
    1. Listing includes multiple Karl Mayer warp knitting machines, one Liba machine, a Karl Mayer warping machine, and spare parts
    2. All machines are from 1975 to 1984
    3. Electrical supply: 380 V / 50 Hz
  2. Karl Mayer Hks2 (1984)
    1. Gauge: 32
    2. Width: 130 inch
    3. Speed: 2300 tr/min
    4. Pattern wheels: 2 plus 3 pairs extra
    5. Beam shafts: 2 of 152 mm diameter
    6. Take-up type: independent batching
    7. Needles: complete, some extra
    8. No beams included
    9. Extra shafts for small diameter beams
  3. Karl Mayer Ks3 (1984)
    1. Gauge: 28
    2. Width: 130 inch
    3. Speed: 1200 tr/min
    4. Pattern wheels: 3 plus 3 extra triples
    5. Beam shafts: 3 x 152 mm diameter
    6. Take-up type: normal
    7. Needle type: 51.50 G101, complete
    8. No beams included
    9. Extra shafts for small diameter beams, extra needles, extra feeding unit for lycra feeding on L1 (limited) together with the normal feeding
  4. Karl Mayer Kh2 (1975) – 168 inch, gauge 32
    1. Gauge: 32
    2. Width: 168 inch
    3. 2 reeds
    4. Pattern wheels: 2 plus 3 extra pairs
    5. Beam shafts: 2 x 152 mm diameter
    6. Take-up type: normal
    7. Needles: complete
    8. No sinkers / press type
    9. No beams included
  5. Karl Mayer Kh2 (1975) – 130 inch, gauge 28
    1. Gauge: 28
    2. Width: 130 inch
    3. 2 reeds
    4. Pattern wheels: 2 plus 2 extra pairs
    5. Beam shafts: 2 x 152 mm diameter
    6. Take-up type: normal
    7. Needles: complete KPES 44.58 G4
    8. No beams included
  6. Karl Mayer Kh2 (1975) – 168 inch, gauge 28
    1. Gauge: 28
    2. Width: 168 inch
    3. 2 reeds
    4. Pattern wheels: 2 plus 3 extra pairs of wheels
    5. Beam shafts: 2 x 152 mm diameter
    6. Take-up type: normal
    7. Needle type: 44.58 G4, complete
    8. No sinkers: press type
    9. No beams included
  7. Karl Mayer Kh2 (1975) – 130 inch, gauge 32
    1. Gauge: 32
    2. Width: 130 inch
    3. 2 reeds
    4. Pattern wheels: 2 plus 2 extra
    5. Beam shafts: 2 x 152 mm diameter
    6. Take-up type: normal
    7. Needle type: 44.58 G4, complete
    8. No beams included
    9. All bars are from titanium
  8. Liba Kopcentra (1975)
    1. Gauge: 28
    2. Width: 112 inch
    3. Speed: 1500
    4. Pattern wheels: 2 plus 5 extra pairs
    5. Beam shafts: 2 x 7-8 cm diameter
    6. Take-up type: normal
    7. Needles: complete
    8. No beams included
  9. Karl Mayer Warping Machine
    1. Model: DS 21 OP

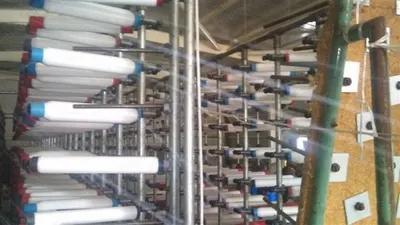

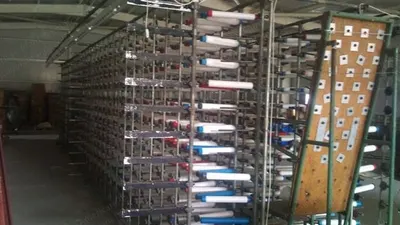

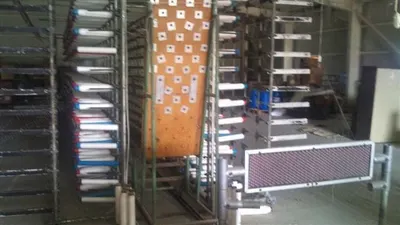

    2. With creel 700 positions
  10. Spare Parts And Accessories
    1. 15 small boxes (yarn guides)
