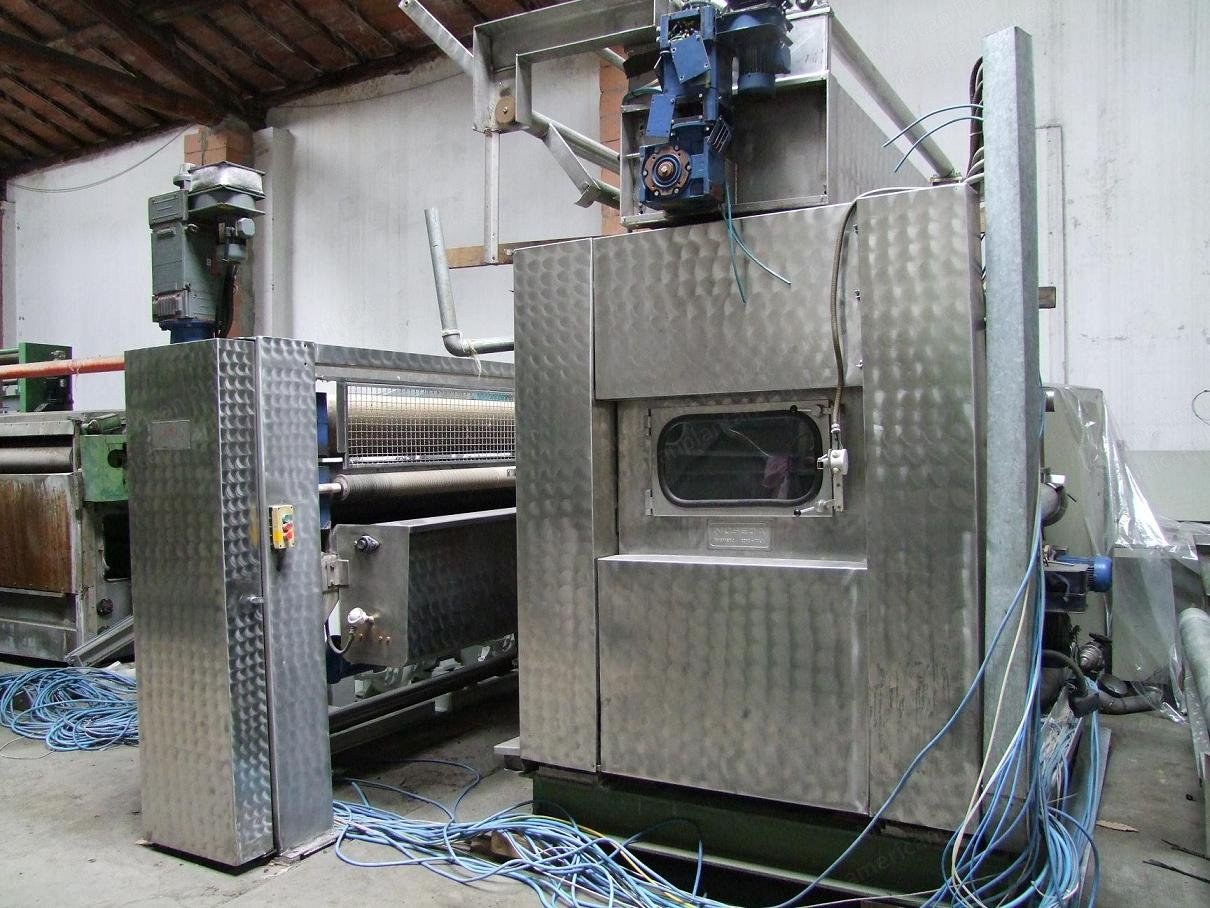

Kuester, Noseda, Continuous Wash Line, 1600mm to 2200mm Working Width

Kuester, Noseda, Continuous Wash Line, 1600mm to 2200mm Working Width

Description

  1. Overview

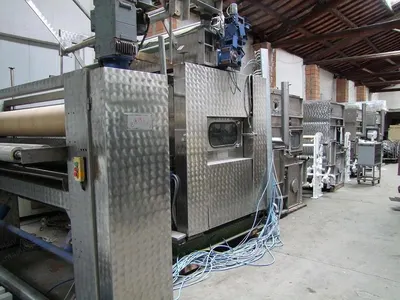

    1. Continuous washing line suitable for woven fabrics, knitted fabrics, and stretch fabrics.
    2. The line is composed of an introduction with widening rollers, new centring device, and impregnation tank.

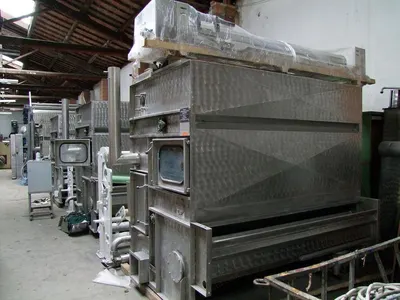

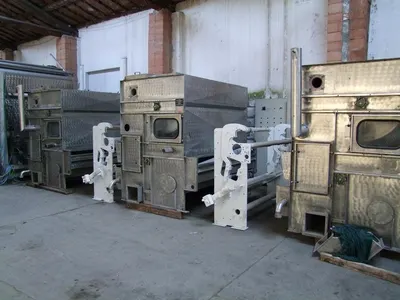

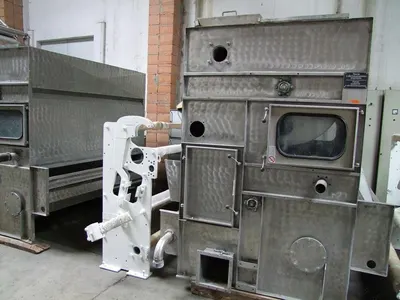

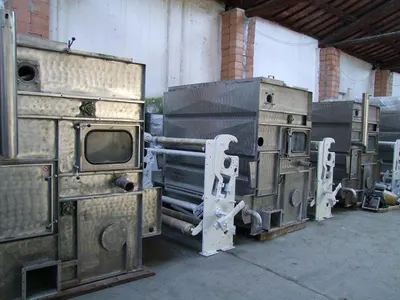

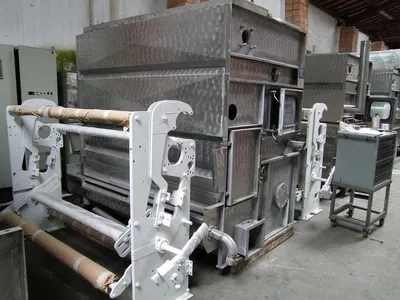

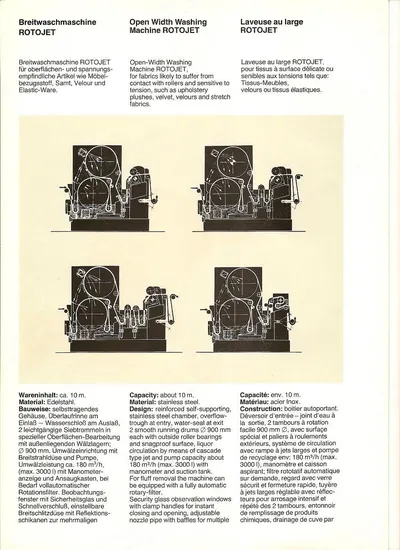

    3. Four drum washing tanks Kuesters mod. Rotojet, drum width 1800 mm, complete with intermediate foulard with 2 rollers with dancing device, circulation pumps, and self-cleaning filters.

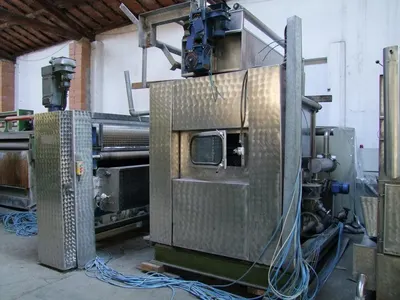

    4. One double tank Noseda, rollers width 2400 mm, complete with circulation pumps and cartridge filters, intermediate foulard, dancing roller, and independent electric control board with programmer Termoelettronica CT 100.

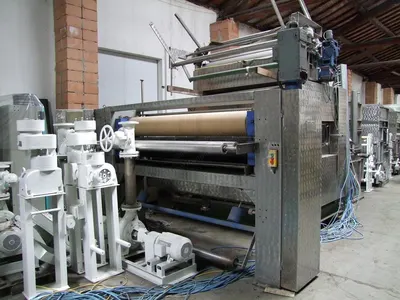

    5. Final foulard with 2 rollers with impregnation tank 2.
    6. Big batcher.
    7. The Noseda tank can be installed at the beginning or at the end of the line, as you prefer.
  2. Condition
    1. Partially reconditioned; can be sold in its actual condition or with reconditioning completed by us.
    2. Original year of Kuesters tanks: 1990.
    3. Original year of the Noseda tank: 1992.
    4. Interventions necessary to complete reconditioning (can be carried out by us or directly by the purchaser):
    5. Realization of an iron bearing frame for the centring/widening unit and the impregnation tank on the introduction.

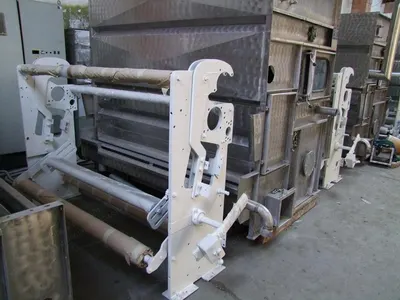

    6. Realization of the motorized widening rollers on the intermediate foulards of the Kuesters tanks.
    7. Pneumatic pistons of the dancing rollers of the Kuesters tanks.

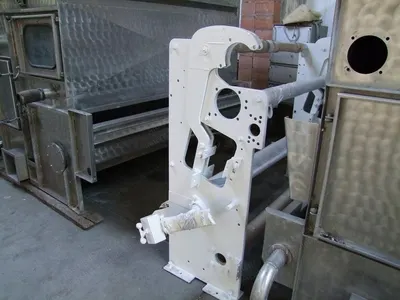

    8. Rubberizing of the 3 rollers of the intermediate foulards Kuesters (the others have already been rectified).
    9. Realization, if required, of the plaiter (the line actually is equipped only with big batcher).
    10. Motorization of the intermediate foulards of the Kuesters tanks (new motors).
    11. Re-building of the electric control board, installing new inverters for the new motorizations of the Kuesters tanks.
    12. Tests and starting up in our works.
  3. Specifications
    1. Useful working width of the Kuesters tanks: 1600 mm (1800 mm rollers width).
    2. Useful working width of the double tank Noseda: 2200 mm (2400 mm rollers width).
    3. Brands: four tanks Rotojet working width 1600 mm are brand Kuesters; the double tank working width 2200 mm is Noseda.
