Stork, Lex4003, 1997, Galvano Engraving System, 3.5m, 5.5W Laser

Stork, Lex4003, 1997, Galvano Engraving System, 3.5m, 5.5W Laser

Description

  1. Overview

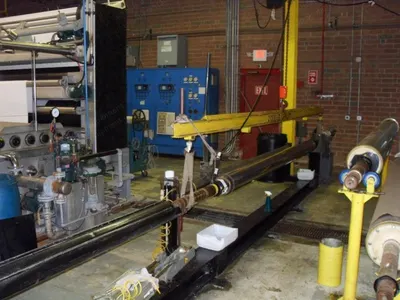

    1. Complete rotary screen printing line purchased new in 1997.
    2. All machines are operational.
  2. Stork Lex 4003 Exposure Unit
    1. Accommodates 3.5 m screens.
    2. 5 mm spindle.
    3. Includes 4.4 STK software and dongle.
    4. Spectra 5.5 watt diode pump laser triple beam with D1 and D2 at 9,082.3 hours and max power of over 5 watts.
    5. Galvano cones (home and tail stock with cradles): 25", 27", 32", 35.9", 36.3", and 46".
    6. Lacquer cones (home and tail stock with cradles): 25", 27", 32", 35.9", 36.3".
    7. 480 vac / 60 hz / 8 kva / 12 amp.
    8. 3 phase.
    9. Requires filtered air input of 80 psi.
  3. Stork Developer Rse 3730
    1. Includes all rings for each repeat.
    2. Accommodates 3.5 m.
    3. 480 vac / serv amp 17.5 / main fuse 25a.
    4. 3 phase.
    5. Requires water and air.
  4. Stork Scr 75 Coater
    1. Coating for 25.25", 27", 32", 35.9", 36.3", and 46".
    2. Accommodates 3.5 m.
    3. 208/230 vac single phase.
    4. Serv amps 1.5.
    5. Main fuse 4 amp.
  5. Stork Screen Dryer Rse 3830
    1. Accommodates 3.5 m.
    2. 480 vac.
    3. 3 phase.
    4. Main fuse 20 amp.
  6. Stork Grinder Rse 3930
    1. Accommodates 3.5 m.
    2. 480 vac.
    3. Single phase / 10 amp.
  7. Robustelli Oven
    1. Serial number 0952.
    2. Model maxi marc.
    3. 205 degrees celsius plus.
    4. 480 vac.
    5. 3 phase.

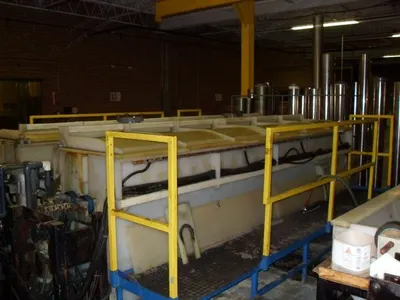

  8. Nca System Plating Tanks (2x)
    1. Two plating tanks purchased new in 1997.
    2. Accommodates 3.5 m.
    3. Includes screen removal device purchased new in 1997.
    4. Used to remove screen from mandrel after plating.

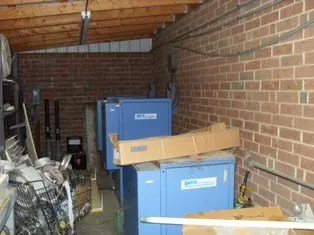

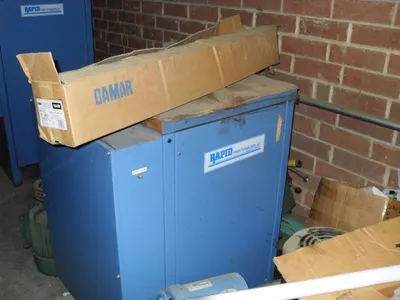

  9. Rectifiers (4x)
    1. Unit 1: Rapidpower, model c89445, input 440 vac / 3 phase / 40 amp, output 18 vdc / 1500 amp / 27 kw cont.
    2. Unit 2: Rapidpower, model c89445, input 440 vac / 3 phase / 31 amp, output 18 vdc / 1000 amp / 18 kw cont.
    3. Units 3 and 4: Rapidpower, model d08017, input 440 vac / 3 phase / 58 amp, output 18 vdc / 2000 amp / 36 kw cont.

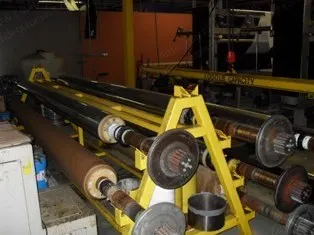

  10. Full Mandrels
    1. 25.25" x 3.5 m – 2x.
    2. 27" x 3.5 m – 1x.
    3. 32" x 3.5 m – 1x.
    4. 35.9" x 3.5 m – 1x.
    5. 36.3" x 3.5 m – 1x.
    6. 46" x 3.5 m – 1x.
  11. Matrix
    1. 25.25" x 3.5 m – 9x.
    2. 27" x 3.5 m – 10x.
    3. 32" x 3.5 m – 3x.
    4. 35.9" x 3.5 m – 9x.
    5. 36.3" x 3.5 m – 4x.
    6. 46" x 3.5 m – 2x.
