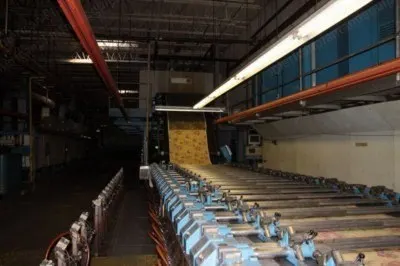

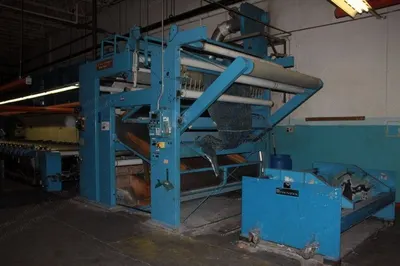

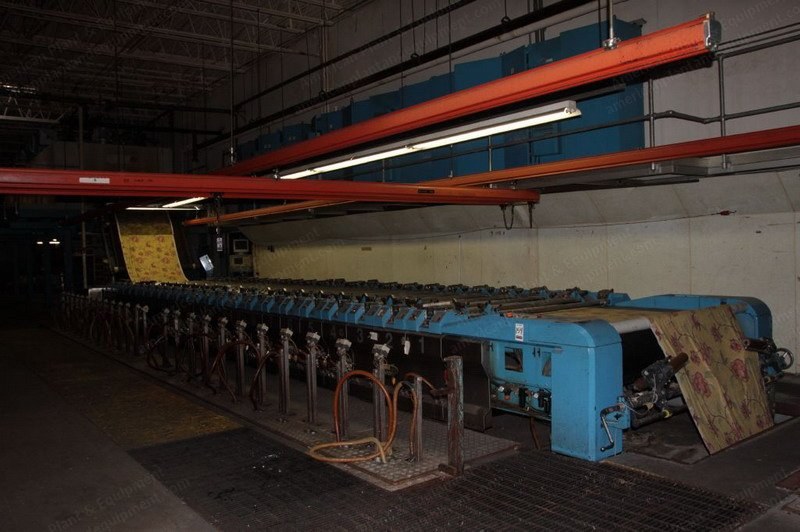

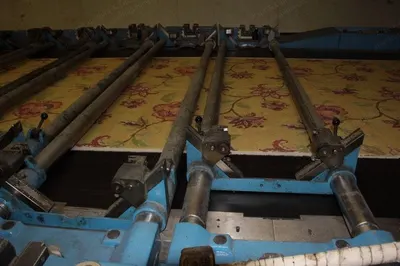

Zimmer, RDS 528 ACR, 1997, 24 Print Heads, 1820mm Max Printing Width, Zimmer TR3 Dryer

Zimmer, RDS 528 ACR, 1997, 24 Print Heads, 1820mm Max Printing Width, Zimmer TR3 Dryer

Description

  1. Overview
    1. 24 print heads
    2. Max printing width: 1820 mm (71.6)
    3. Year: 1997
  2. Power Requirements
    1. Main power: 3 x 480 V / 60 Hz
    2. Control power: 110 V / 60 Hz
  3. Entry and Dryer

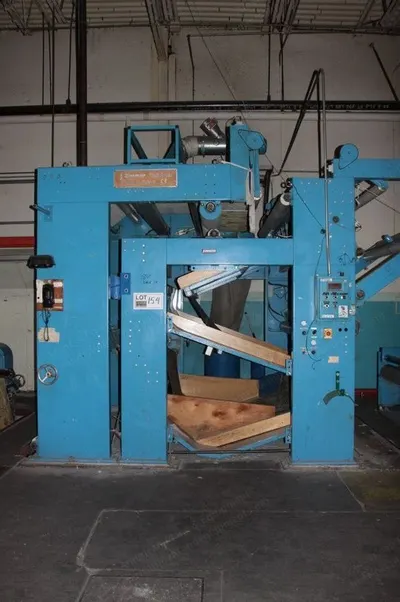

    1. Zimmer entry with Z scray

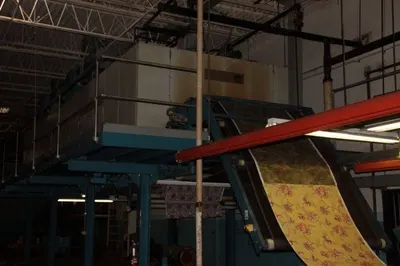

    2. Zimmer TR3 dryer, 6 sections (each 2000 mm long)
    3. Eclipse gas burners
    4. Dryer elevated 10 feet with flat folder
  4. Accessories
    1. Repeat gears and tension rings: R25 (2 Stork), R35 (9 Stork), R27
    2. 2-position screen washer
    3. Connex color pipe washer
