NovaStar, SD108, Grinder, 320mm Rotor, 22kW, 12mm Screen Mesh (New)

NovaStar, SD108, Grinder, 320mm Rotor, 22kW, 12mm Screen Mesh

Description

  1. Overview
    1. Model SD108 industrial machine
  2. Specifications

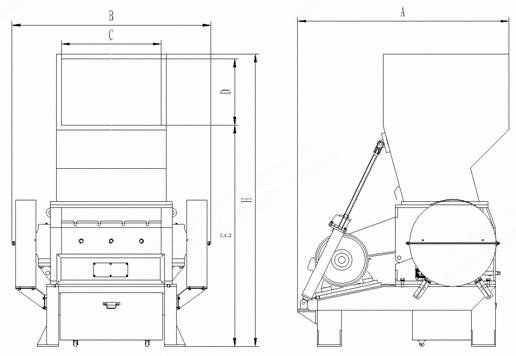

    1. Dimension A: 1720 mm
    2. Dimension B: 1630 mm
    3. Dimension C: 800 mm
    4. Dimension D: 410 mm
    5. Dimension E: 1465 mm
    6. Dimension H: 1910 mm
    7. Rotor diameter: φ320 mm
    8. Main shaft speed: 580 r/min
    9. Screen mesh: φ12 mm
    10. Rotor knives: 3 x 2 pieces
    11. Stator knives: 2 x 2 pieces
    12. Main motor power: 22 kW
    13. Weight: 1730 kg
