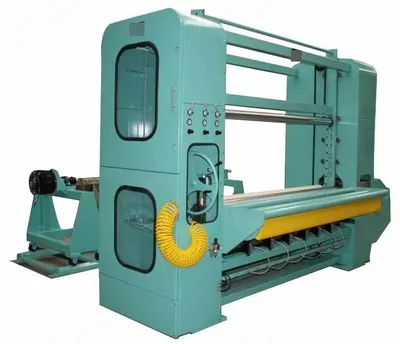

Description Technical Characteristics Maximum roll diameter: 1,100 mm Maximum roll width: 3,000 mm Maximum roll weight: 1,150 kgs Core diameter: 3 in Minimum silted roll width: 115 mm Material to use: nonwoven pp fabric 100% Maximum speed: 120 mts/min Total tension on the material: 0.1 kg/cm The machine's guarantee will be made with the sample materials send for tests Machine Description Unwinder: the machine has an unwinding section that maintains a tension on material by means of a break Central unwinder with 3 in air shaft Shaft insertion on unwinder based on a pneumatic retractile system Rewinder: peripheral winder system with rubber roll and steel roll One air expandable steel shaft 3 in diameter for the rewinder Riding roll to compact the material Low friction idler rolls One curved bar to remove wrinkles on the material Control Variable speed transmission system using a vectorial type motor and synchronous pulley Digital meter counter with display; automatic stop system at preset length The tension control system is manual with an air pressure regulator Cut 26 shear cutters tidland class 1 (to achieve the 115 mm on a 3000 mm width) Manual positioning Anvil ring Specifications Electric: 8 kw, 440 vac, tri phase Pneumatic: 6 bars
