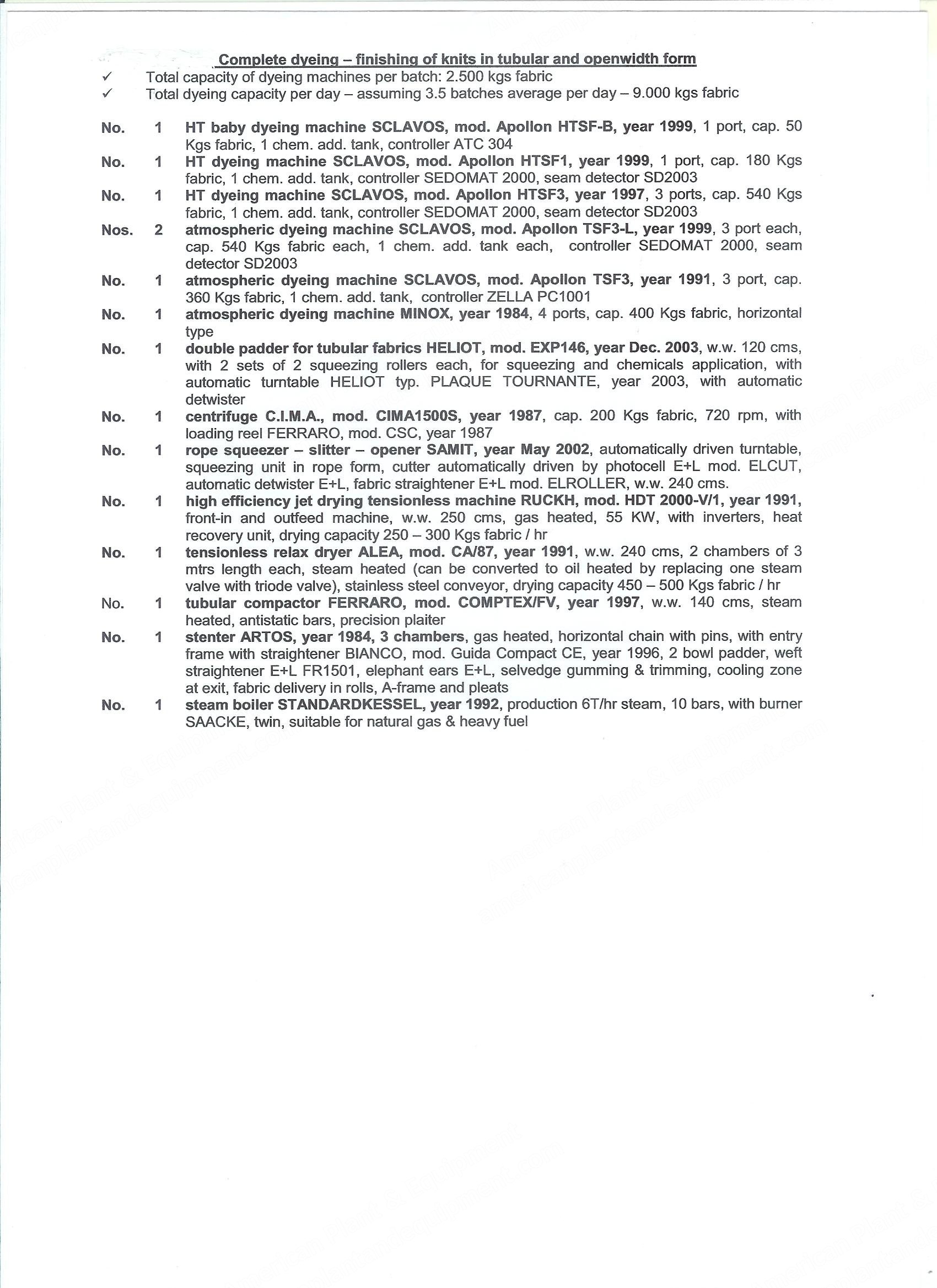

Complete Dyeing and Finishing Plant, 2500kg/batch Capacity, Tubular and Open Width

Complete Dyeing and Finishing Plant, 2500kg/batch Capacity, Tubular and Open Width

Description

  1. Overview
    1. Total capacity of dyeing machines per batch: 2,500 kgs fabric
    2. Total dyeing capacity per day – assuming 3.5 batches average per day – 9,000 kgs fabric
  2. Dyeing Machines
    1. Sclavos HT baby dyeing machine, model Apollon HTSF-B, year 1999, 1 port, capacity 50 kg fabric, 1 chemical add tank, controller ATC 304
    2. Sclavos HT dyeing machine, model Apollon HTSF1, year 1999, 1 port, capacity 180 kg fabric, 1 chemical add tank, controller Sedomat 2000, seam detector SD2003
    3. Sclavos HT baby dyeing machine, model Apollon HTSF3, year 1997, 1 port, capacity 540 kg fabric, 1 chemical add tank, controller Sedomat 2000, seam detector SD2003
    4. Sclavos atmospheric dyeing machines, model Apollon TSF3-L, year 1999, 3 port each, capacity 540 kgs fabric each, 1 chemical add tank each, controller Sedomat 2000, seam detector SD2003, quantity 2
    5. Sclavos atmospheric dyeing machine, model Apollon TSF3, year 1991, 3 port, capacity 360 kgs fabric, 1 chemical add tank, controller Zella PC1001
    6. Minox atmospheric dyeing machine, year 1994, 4 port, capacity 400 kgs fabric, horizontal type
  3. Padder and Centrifuge
    1. Heloit double padder for tubular fabrics, model EXP146, year 2003, working width 1200 mm, 2 sets of 2 squeezing rollers for squeezing and chemical application, automatic Heliot turntable type plaque tournante year 2003 with automatic detwister
    2. Cima centrifuge, model Cima 1500S, year 1987, capacity 200 kg fabric, 720 rpm, with Ferraro loading reel model CSC year 1987
  4. Rope Squeezer and Opener
    1. Samit rope squeezer opener slitter, year 2002, automatic turntable, squeezing unit in rope form, cutter automatically driven by photocell E+L model Elcut, E+L automatic detwister, E+L fabric straightener model Elroller working width 2400 mm
  5. Dryers
    1. Ruckh high efficiency jet dryer, model HDT 2000-V/1, year 1991, front in and outfeed machine, working width 2500 mm, gas heat, 55 kW, with inverters, heat recovery unit, drying capacity 250 to 300 kgs fabric per hour
    2. Alea tensionless relax dryer, model CA/87, year 1991, working width 2400 mm, 2 chambers of 3 meters length each, steam heated (can be converted to oil heat), stainless steel conveyor, drying capacity 450 to 500 kgs fabric per hour
  6. Compactor and Stenter
    1. Ferraro tubular compactor, model Comptex/FV, year 1997, working width 1400 mm, steam heated, antistatic bars, precision plaiter
    2. Artos stenter, year 1984, 3 chambers, gas heat, horizontal pin chain, entry frames with Bianco straightener model Guida Compact CE year 1996, 2 bowl padder, E+L weft straightener model FR1501, E+L elephant ears, selvedge gumming and trimming, cooling zone at exit, fabric delivery in rolls, a frame and pleats
  7. Steam Boiler
    1. Standardkessel steam boiler, year 1992, production 6 t/hour steam, 10 bars, with Saacke burner, twin, suitable for natural gas and heavy fuel
