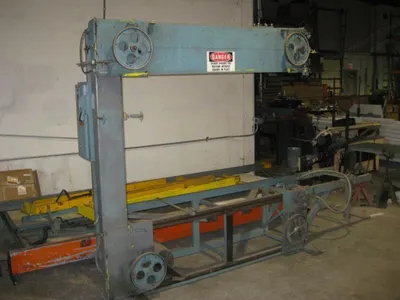

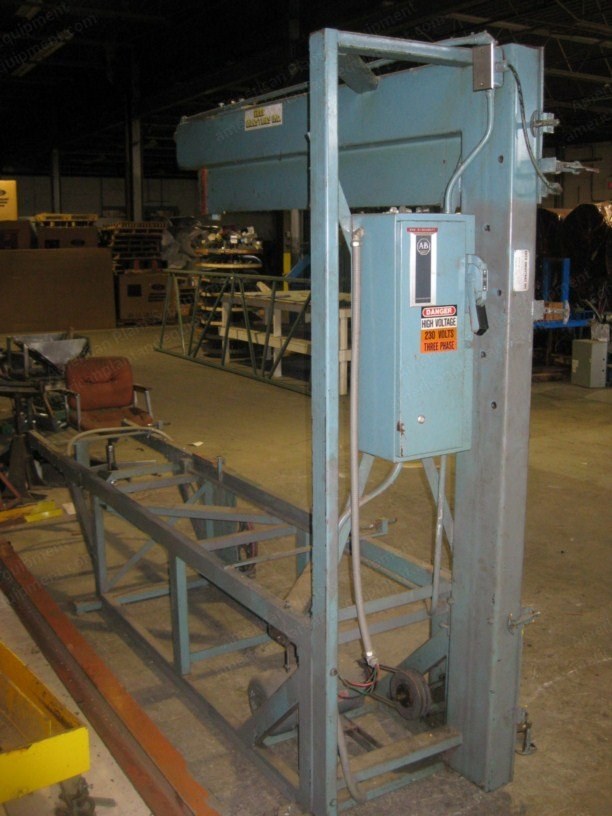

Edgesweets, EL-2, Vertical Foam Cutter, 38" Max Cut Height, 122" x 137" Table Size

Edgesweets, EL-2, Vertical Foam Cutter, 38" Max Cut Height, 122" x 137" Table Size

Description

  1. Overview
    1. 24" extensions
    2. Blade wheels 12" (305 mm) diameter
    3. Blade motor 1-1/2
    4. Blade speed: 3100 fpm (945 m/min)
  2. Blade Specifications
    1. Blade: 1/2" (13 mm)
    2. Blade thickness:.020" (0.5 mm) serrated
    3. Blade guide, teflon coated.055" (1.40 mm) thickness
    4. Die spring tension 11/16" (43 mm) width
  3. Table Dimensions
    1. Table size: 122" x 137"
    2. Table width: 137"
    3. From frame to saw blade is 73.5"
    4. From the top to the table: 37 to 38"
    5. 38" maximum height cut
    6. 73" blade to frame length
    7. 49" blade to forward edge of table
    8. Fence height: 8"
