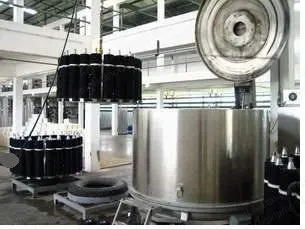

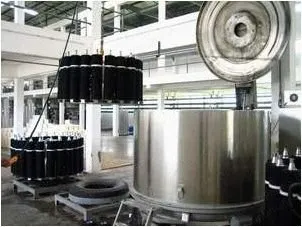

Description Overview Special design centrifuge for packages, suitable for centrifuging all kinds of yarns. Perforated indentations on the inside of the cylindrical basket shell correspond in size to the diameter of the packages. The entire bobbin spindles are inserted in the package carrier. High quality stainless steel machine casing for long service time and attractive construction. Package carrier can be offered to save working time of loading and unloading yarns for convenient operation. Advanced inverter control system for timing, automatic braking, and varied revolving speed as requirement for excellent performance. Pneumatic lid device for safe operation. Fully controlled by electrical apparatus without machine brakes, thus can reduce mechanical maintenance greatly. Low noise and super balance for excellent working condition. Specifications Model: I-1200 Inner basket dimensions: Φ1200 × H700 mm Capacity: 17 × 4 = 68 packages Power: 5.5 kW Rotation speed: ≤750 rpm Machine dimensions: 1800 × 1600 × 1220 mm Cone I/D: customer request Yarn O/D: 1700 mm Height: 170 mm Included Components Stainless steel inner basket with housing for packages Stainless steel outer casing Cast iron bottom base Driving motor with inverter control Control cabinet Pneumatic cover opening 17 pieces of rod for packages (swords or spindles)
