Dyeing Testers for Laboratory, 5-Piece Lab Package

Dyeing Testers for Laboratory, 5-Piece Lab Package

Description

  1. Overview

    1. One sample dye tester Instex 2000, model FE-08/B

    2. One laboratory foulard Mathis 1988, model HF 500

    3. One sample dyeing apparatus Ahiba 1992, Polymat model PM 100

    4. One oscillating lab dyeing machine Rapid-Labortex 1995, model L-12C-1

    5. One dyeing apparatus Zeltex 1995, model VHB-DTX/MN2, Vistacolor High Boy

  2. Specifications

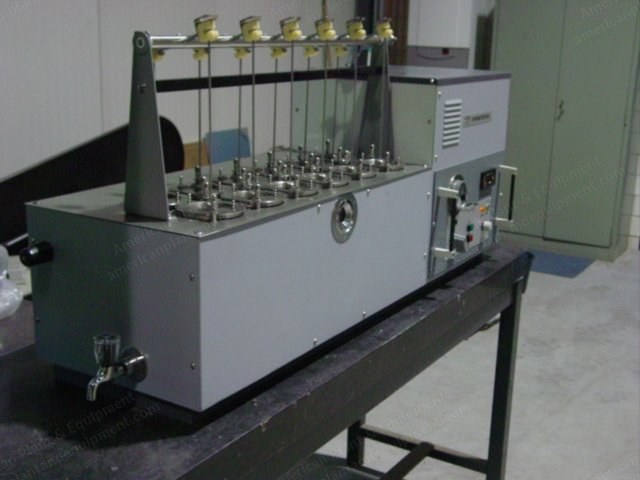

    1. Instex 2000: universal laboratory equipment with 12 working places for atmospheric and HT dyeing routine procedures, with open-jig and closed-, under pressure and for lengthy impregnation procedures with various chemical baths

    2. Instex 2000: metal coated beakers for open jig dyeing; capacity of beakers 600 cm³

    3. Instex 2000: indirect electronic heating by tubular heaters immersed in an ethylene glycol liquid bath; cooling with running tap-water

    4. Instex 2000: number of agitation cycles 48 per minute; stroke length 40 mm; temperature regulation range 20-140 degrees Celsius

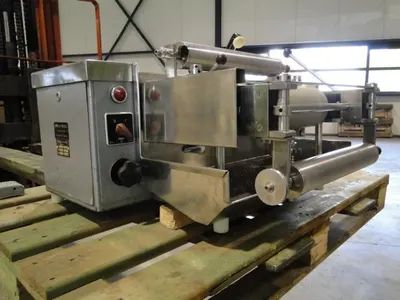

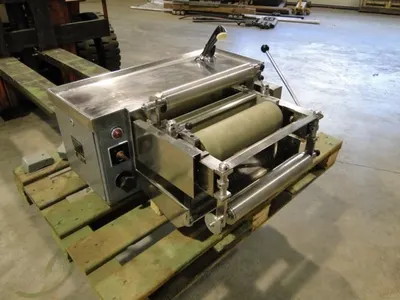

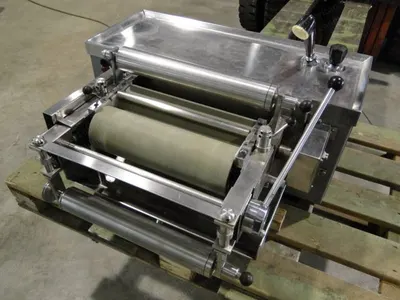

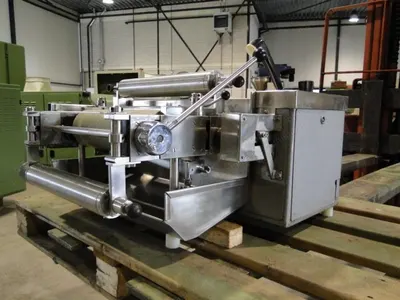

    5. Mathis HF 500: laboratory padder with horizontal position of the rollers; fabric speed variable within 0.2-10 m/min

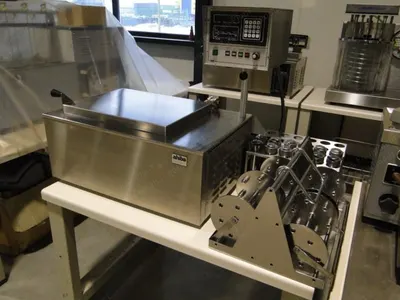

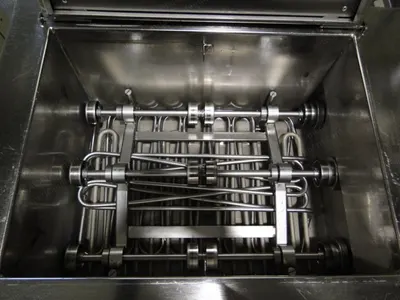

    6. Ahiba Polymat PM 100: sample and dye bath are steady moving in special beakers; samples include loose fibres, yarn, fabric

    7. Ahiba Polymat PM 100: temperature 0-150 °C; universal use specially suitable for HT dyes; 1 to 24 dye places; fabric samples for pattern books, serial trials with good references and reproducible

    8. Ahiba Polymat PM 100: turning ratio 8-60 rpm (variable) or 40 rpm (fixed); beaker rotation reversible

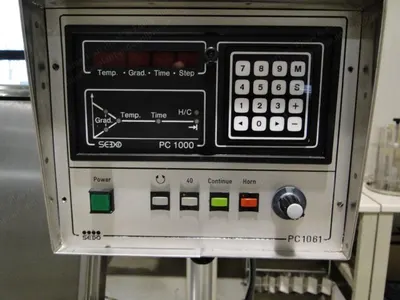

    9. Ahiba Polymat PM 100: control Sedo, type Ahiba 1061; measures dyeing bath 430 x 320 x 200 mm; includes LCD display for programming and machine functions

    10. Ahiba Polymat PM 100: auxiliaries include 12 steel beakers 150 ccm, type BE 6/10; 4 roll-matic devices type PO 24/424 for beakers 150 resp. 300 ccm

    11. Rapid-Labortex L-12C-1: convenient operating atmospheric dyeing machine; additions of chemical can be done during the dyeing test

    12. Rapid-Labortex L-12C-1: suitable for atmospheric dyeing, burn-outs (PE/cotton) in warm sulphuric acid, fixing and/or soaping tests, scouring and/or bleaching tests

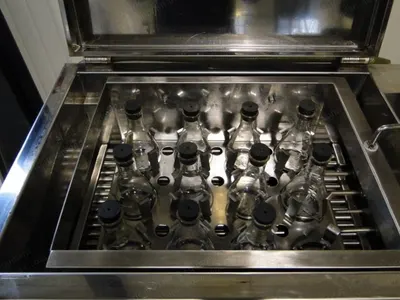

    13. Rapid-Labortex L-12C-1: temperature range 20 °C-100 °C; liquor ratio about 1:15 or above; type and volume of dyepots 250 cc conical flask; number of pot positions 12

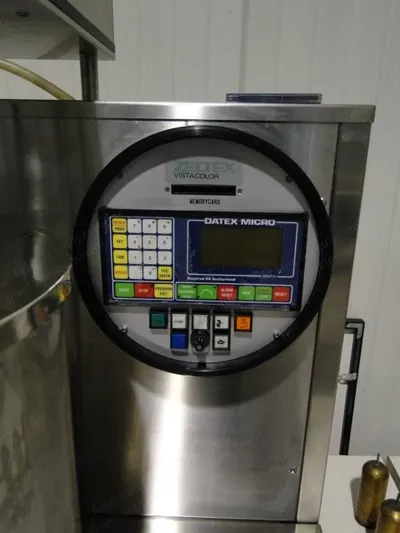

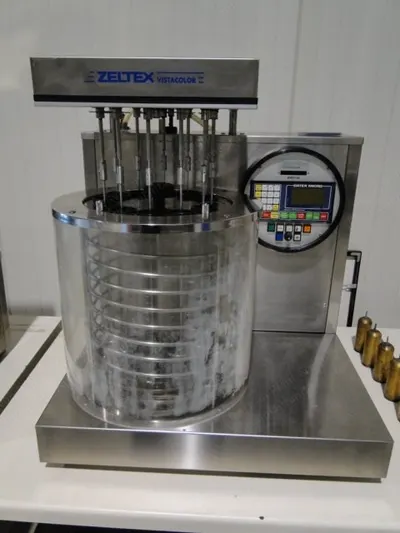

    14. Zeltex Vistacolor High Boy: electronic programmer Datex-Micro; includes many accessories (memory card, beakers, etc.)

  3. Condition

    1. Zeltex Vistacolor High Boy: service and spare parts by Werner Mathis AG, in Swiss

  4. Included

    1. Instex 2000: metal coated beakers for open jig dyeing

    2. Ahiba Polymat PM 100: 12 steel beakers 150 ccm, type BE 6/10; 4 roll-matic devices type PO 24/424 for beakers 150 resp. 300 ccm

    3. Zeltex Vistacolor High Boy: many accessories including memory card and beakers
