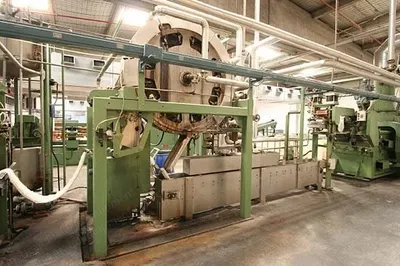

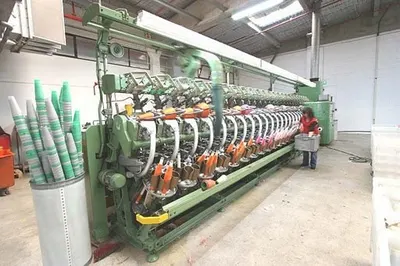

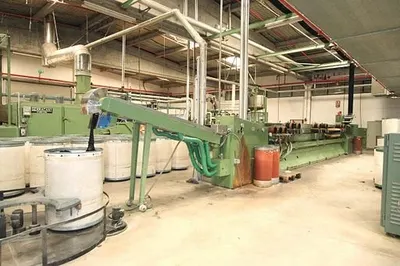

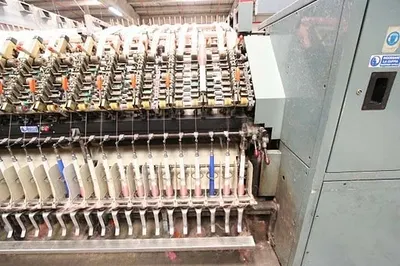

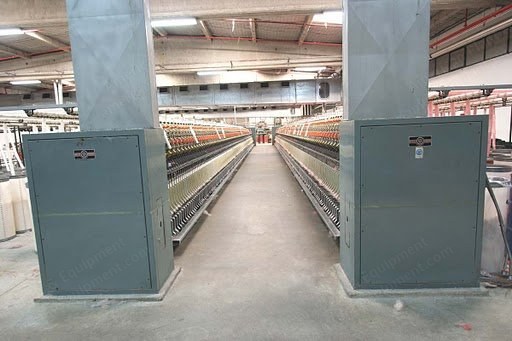

Description Overview 20 ton per month (3 shift) capacity, year 1989, for NM15 / NM 12/2 yarns Serracant Tow Dyeing Machine Type TOW-DYE 100, year 1989, 15-18 m/min 2 roll impregnation / dyeing padder, dyeing kitchen with 2 vessels Towfix rotary steamer with overfeeding, 1500 mm diameter, steaming for 10 min at 115° C, direct steam heating 1 hot washing zone, length 1500 mm 1 cold washing zone, length 500 mm Squeezing padder with dosing pump for anti-static 1 dryer, type Secocab, steam heating, 2000 mm long chamber Exit paliter Seydel Breaker Type 671 S, year 1973 2 preparing drafts, 1 heating zone, 2 + 2 preparing drafts, 1 breaking draft, 1 rebreaking draft Exit cans 700 mm diameter x 900 mm, 3 can doffer Nsc Reabreaker Type DR11 Feeding 2 x 5 cans, 700 mm diameter x 900 mm Delivery 1 roll 400 mm traverse Nsc 1st Passage Type GN5 Feeding 2 x 6 rolls Exit 1 can with 1 sliver, diameter 600 x 800 mm Nsc 2nd Passage Type GN5 Feeding 2 x 5 cans Exit 2 cans with 1 sliver, diameter 400 x 850 mm Nsc 3rd Passage Type GN5 Feeding 2 x 6 cans Exit 3 cans with 1 sliver, diameter 400 x 850 mm Gaudino Semi-Worsted Spinning Frames 2 units, type FPK/350/8C 240 spindles, ring diameter 80 mm, pitch 105 mm Savio Automatic Winder Type RAS 15 24 spindles, revolver feeding for 5 cops Uster MK-C20-A2 clearers, take-up 6”, 4°20 Individual splicer, cone + cops doffer Superba High Bulk Yarn Steamer Type Spirovap WPM10, year 1989 10 cone creel, 10 steaming conveyors 120 mm width Steaming chamber length 200 cm Motocono Winder Type R 8(12) 10 spindles, take-up 6”, 4°20, waxing Linked to Superba steamer
