Befama, Dilo, Fehrer, Needle Felt Production Line, 2500mm-3000mm Working Width

Befama, Dilo, Fehrer, Needle Felt Production Line, 2500mm-3000mm Working Width

Description

  1. Overview
    1. Befama compact carding line CU611
    2. Dilo needle loom OD II 30
    3. Fehrer needle loom NL 9/R

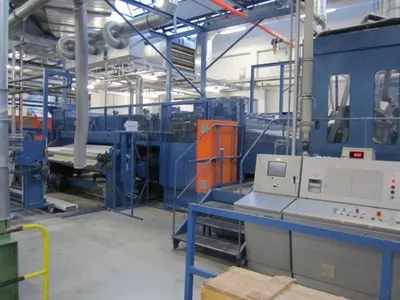

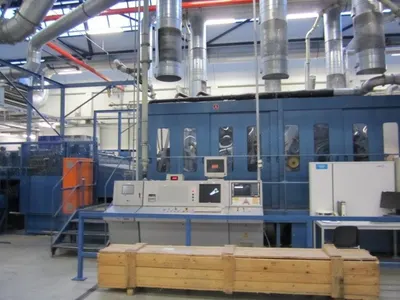

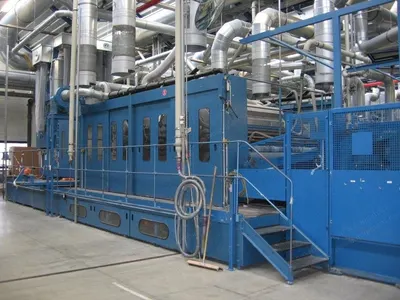

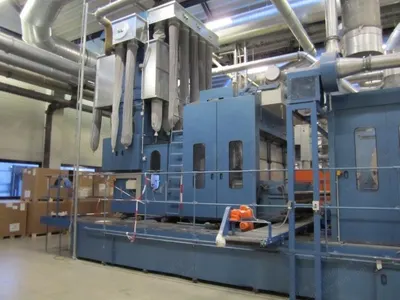

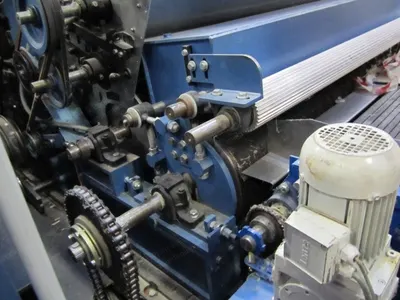

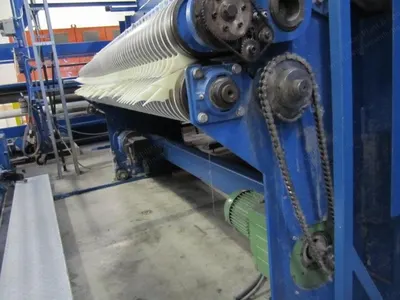

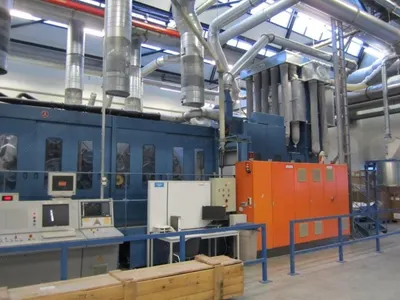

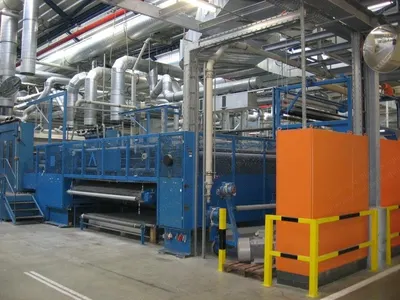

  2. Pos 1: Befama Compact Carding Line CU611
    1. Year of construction: 1996
    2. Working width: 2500 mm
    3. Roller width: 2520 mm
    4. Composed of the following components
  3. Vibration Chute Feeder Type 1S2 With Material Bin AZ35
    1. Total height: 5.20 m
    2. 1 pair of pull out cylinder with separate drive
    3. Opening cylinder with separate drive
    4. Transport belt
    5. Spiked lattice belt
  4. Protec Electronic Belt Weighing Device
    1. One unit
  5. Reisky Trough Feed Inlet
    1. Year of construction: 2002
    2. Working width: 2500 mm
  6. Breast Cylinder Ø 1500 Mm
    1. 5 worker roller/pair of clearer roller Ø 240/123 mm
    2. Volant Ø 240 mm

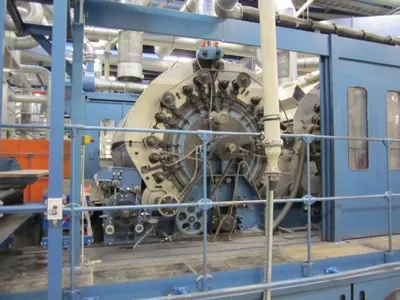

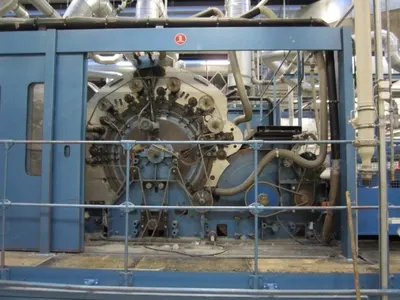

  7. Main Cylinder Type 3AGA
    1. Ø 1500 mm with individual drive
    2. 5 worker roller/pair of clearer Ø 240/105 mm
    3. With volant Ø 270 mm
    4. One doffer diameter 1270 mm
  8. Hollingsworth Take Off Device
    1. Included
  9. Base Frame
    1. 770 mm high

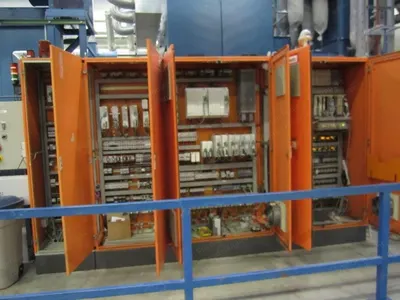

  10. Control Cabinets
    1. Included
  11. Autefa Cross-Liner CL 2003
    1. Year of construction: 1996
    2. Carding working width: 2500 mm
    3. Max. web width: 3000 mm
    4. Incl. control cabinets
  12. Quality Control System For Measuring Weight, Mahlo FMI 10
    1. Measuring range: 0-1000 g/m²

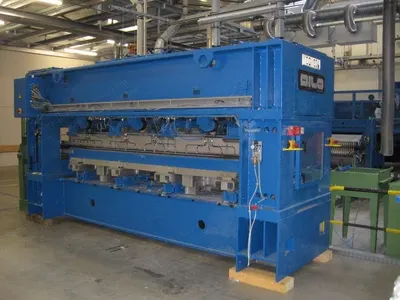

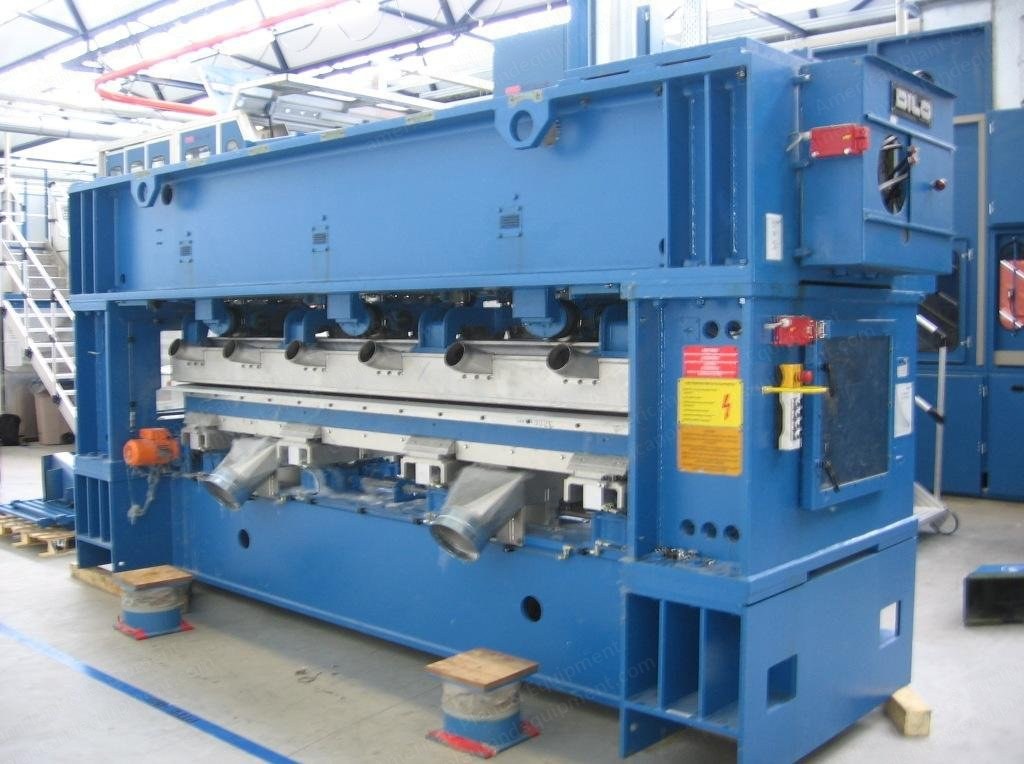

  13. Pos 2: Needle Loom Dilo Di-Loom OD II 30
    1. Year of construction: 1990
    2. Needles/m: 5750
    3. Working width: 3000 mm
    4. Incl. 3 sets needle boards
    5. Without control cabinet
  14. Dilo CBF 26 Feeding System
    1. Max. working width: 2600 mm
    2. Length: 1700 mm
    3. Movable
    4. Easily high adjustable

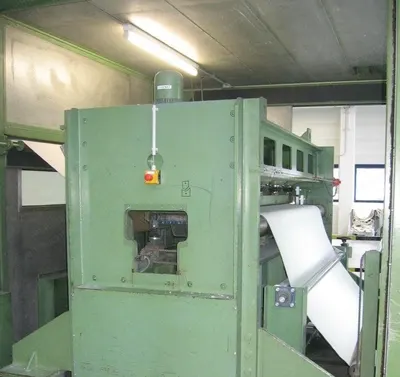

  15. Pos 3: Needle Loom Fehrer NL 9/R
    1. Year of construction: 1977
    2. Needles/m: 5000/m
    3. Working width: 2500 mm
    4. Incl. suction device
    5. Incl. blowing device
    6. Incl. fast changing device for the bed plate
    7. Incl. central greasing system
    8. Incl. 1 set needle boards
    9. Incl. control cabinet
