Rieter, K40, 1997, Compact Spinning Frames, 816 Spindles, 70mm Gauge, with Mach Coner 7-5 Winder

Rieter, K40, 1997, Compact Spinning Frames, 816 Spindles, 70mm Gauge, with Mach Coner 7-5 Winder

Description

  1. Overview
    1. Two complete compact spinning lines, each consisting of one Rieter K40 spinning frame linked with one automatic cone winder.
    2. Spinning frames: Rieter K40 compact spinning, year 1997.
    3. First line winder: Mach Coner 7-5 automatic cone winder, year 1997.
    4. Second line winder: Schlafhorst AC 338 automatic cone winder, year 1999 with heads from 2003.
  2. Spinning Frame Specifications
    1. Model K40, maker Rieter, year 1997.
    2. Feeding: Kampatzu bobbin holders.
    3. Drafting: Rieter pneumatic, range for 38 mm fiber length.
    4. Nose bars: 36 mm.
    5. Cradle: small for nose bars of 36 mm.
    6. Drafting system: 3 over 3.
    7. Bottom rollers on SKF bearings.
    8. Spindles gauge: 70 mm.
    9. Yarn brakes: suction spindle by spindle.
    10. 816 spindles per machine.
    11. Antiballoon diameter: 42 mm.
    12. Rings diameter: 40 mm, flange 1.
    13. SKF spindles lift: 165 mm.
    14. Spindles tube: 210 mm.
    15. Spindles drive: by belt, 4 spindles each belt.
    16. Meter counter with display.
    17. Automatic doffer with external gripper (middle spool picking).
    18. Voltage: 380 V, 3 phase, 50 Hz.
    19. Air discharge into the floor.
    20. Outlet of main cables and air compress piping from the floor.
    21. Travelling cleaner with centralized box discharge.
  3. First Line Winder Specifications
    1. Mach Coner 7-5 automatic cone winder, year 1997.
    2. Feeding by magnetic caddy.
    3. Right hand head stock.
    4. Frame with max 26 spindles, 26 spindles fitted.
    5. Independent frequency inverter each spindle.

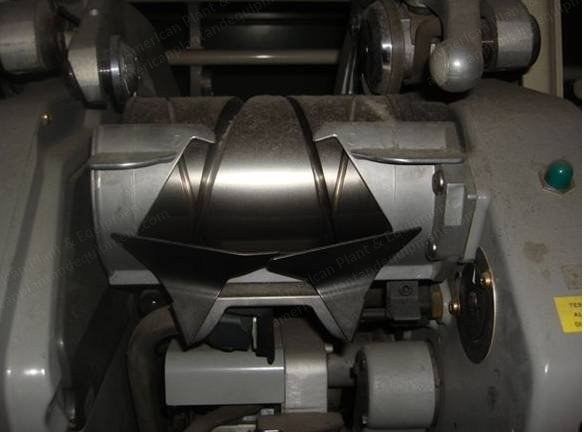

    6. Chromed drums.
    7. 2 turns (suitable for fine count).
    8. 6" traverse.
    9. 01 cone changer 7D3.
    10. Conicity: 4º20 degree.
    11. Anti-rolling device on the drums.
    12. Waxing device.
    13. Air splicers GZ2.
    14. Uster Quantum clearers.
    15. MMM length measuring device and informator.
    16. Travelling cleaner.
  4. Second Line Winder Specifications
    1. Schlafhorst AC 338 automatic cone winder, type V, year 1999 with heads from 2003.
    2. Feeding by magnetic caddy.
    3. Left hand head stock (both machines).
    4. Frame with max 28 spindles, 20 spindles fitted.
    5. Independent frequency inverter each spindle.
    6. Chromed drums.
    7. 2 turns (suitable for fine count).
    8. 6" traverse.
    9. 01 cone changer.
    10. Conicity: 4º20 degree.
    11. Anti-rolling device on the drums.
    12. Waxing device.
    13. Schlafhorst air splicer.
    14. Uster Quantum clearers.
    15. Informator.
    16. FX device.
    17. Travelling cleaner.
  5. Condition and Included Items
    1. Both lines are complete and linked as described.
    2. All components are included as listed per line.
