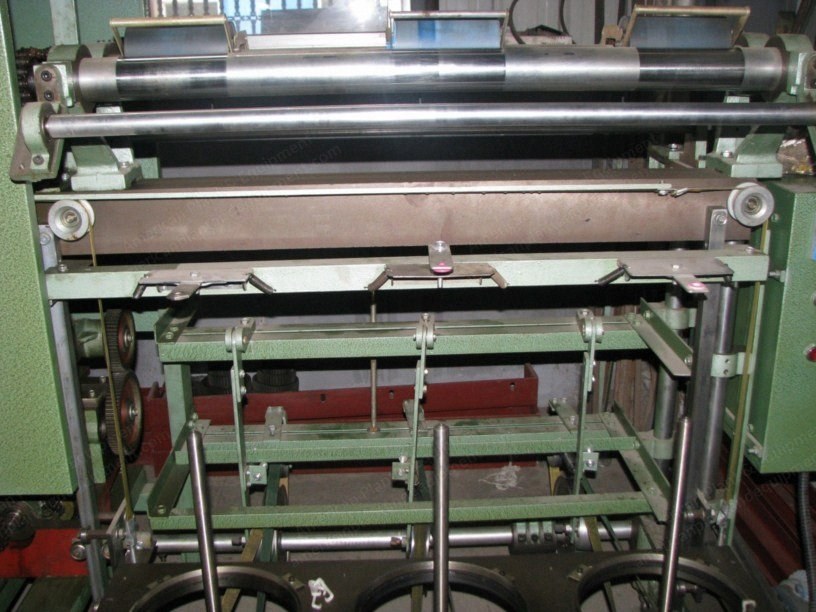

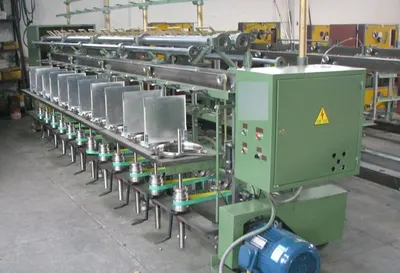

NovaStar, 12 Position Twister, New, 10 Inch Ring Diameter, 12 Spindles, 5.5kW (New)

NovaStar, 12 Position Twister, New, 10 Inch Ring Diameter, 12 Spindles, 5.5kW

Description

  1. Overview
    1. Ring twisters can process all kinds of yarn, including synthetic filament, textured yarns, glass fiber, fishing net, twine, wool, fabric cord, cotton yarn, carpet, canvas, and others.
    2. The lift range can be adjusted and production quantity can be correctly recorded by a memory device.
  2. Technical Parameters
    1. Spindle pitch: 340 mm
    2. Spindle amount: 12
    3. Spindle speed: 2100 r/min

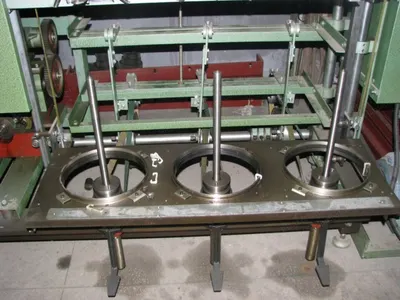

    4. Ring diameter: Φ254 mm
    5. Ring lift: 305 mm
    6. Rolling diameter: Φ250 mm
    7. Spindle diameter: Φ90 mm
    8. Twist range: 32 to 270 turns per meter
    9. Direction of lay: S or Z direction
    10. Roller diameter: Φ61 mm
    11. Coil dimension: Φ73 x Φ223 x 300 mm
    12. Spindle: D301
    13. Ring: SGH8-254
    14. Overall dimensions: 5490 x 1100 x 2080 mm (12 spindle)
    15. Yarn support: single upright
    16. Operation type: single-side operation
    17. Power: 5.5 kW (12 spindle)
    18. Weight: 2500 kg (12 spindle)
  3. Main Accessories
    1. Belt wheel for motor D1: Φ143
    2. Belt wheel for rolling D2: Φ273

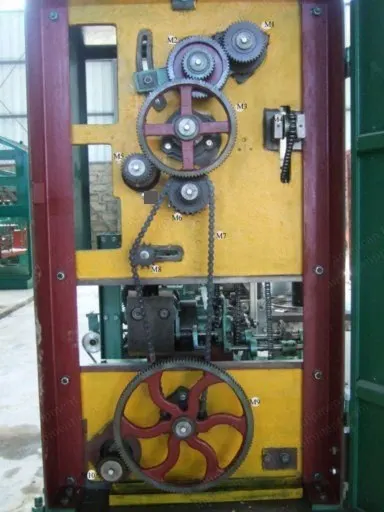

    3. Gear wheel for twist adjustment
    4. Twist gear wheel (4 pieces): 30T, 40T, 60T, 70T
    5. Adjustable gear wheel (17 pieces): 29T, 31T, 33T, 35T, 37T, 39T, 41T, 43T, 45T, 47T, 49T, 51T, 53T, 55T, 57T, 59T, 60T
    6. Gear wheel for adjusting ring lift (choose from above specification)
    7. Spindle: D301
    8. Ring: SGH8-254
    9. Spindle belt: 2170 x 25 x 1
  4. Optional Accessories
    1. Cylinder: Φ73 x Φ223 x 300
    2. Nylon steel coil: 4″ or 5″

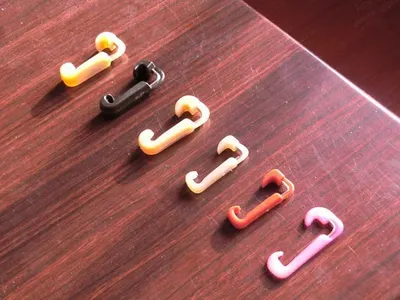

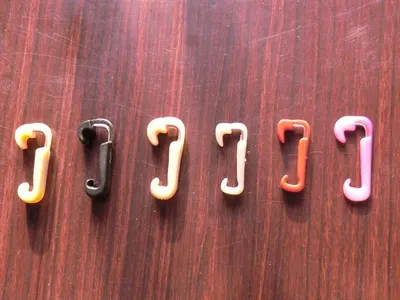

    3. Travelers
  5. Product Structure
    1. Anti-dust bearings and non-metal gear wheels make it easy to maintain and run with low noise.
    2. The yarn package holder has adjustable support to get an ideal angle.
    3. The expansion strength of the spindle belt can be adjusted by spring.
    4. The magnetic meter unit can accurately show and control the coiling length of the yarn.
    5. The leading device behind the roller makes the transverse movement of the yarn so as to avoid abrasion with the roller surface.
    6. There are two kinds of yarn support. Apart from the single-column type, the double-column type is 1.46 meters high and 2.15 meters wide.
