Trutzschler, Securomat SCFO, 2004, 1600mm Working Width, Foreign Fibre Detection

Description

Overview
1. Two independent devices
2. Three containers (40 inches) are needed to load both machines

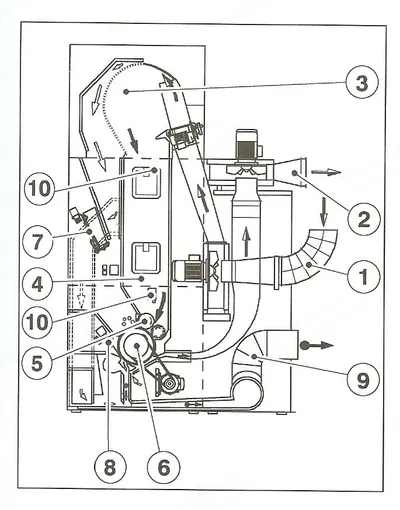

Components
1. Material feeding
2. Material suction
3. Mas material separator
4. Feeding shaft
5. Cylindrical lift with a drive
6. Striking roller with a drive
7. Foreign elements recognition
8. Blowing device
9. Used air transport and waste disposal
10. Fotocells built
11. Junction cabinet
12. Doors and covers

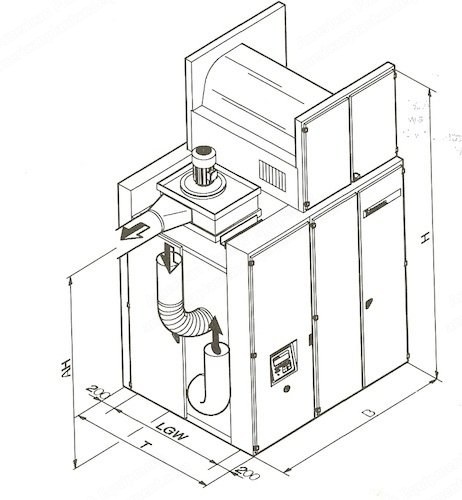

Specifications
1. Lgw: 1600 mm
2. Height (h): 3980 mm
3. Width without door (b): 2485 mm
4. Length without door (t): 2000 mm
5. Installed power: securomat scfo 380 v, max. 29.78 kw
6. Control voltage: 24 v
7. Air pressure (feeding web): 8 bar
8. Air pressure (pneumatic drive): 6 bar
9. Weight: 3700 kg
10. Ah: 2640 mm

Included	['Material Feeding', 'Material Suction', 'MAS Material Separator', 'Feeding Shaft', 'Cylindrical Lift with Drive', 'Striking Roller with Drive', 'Foreign Elements Recognition', 'Blowing Device', 'Used Air Transport and Waste Disposal', 'Photocells Built', 'Junction Cabinet', 'Doors and Covers']
