NovaStar, SG148, Tire Shredding Line, 3000 kg/h Capacity, 50-60mm Output Size, 75kW (New)

NovaStar, SG148, Tire Shredding Line, 3000 kg/h Capacity, 50-60mm Output Size, 75kW

Description

  1. Overview
    1. Composed of a tire shredding machine and a bead cutting machine.

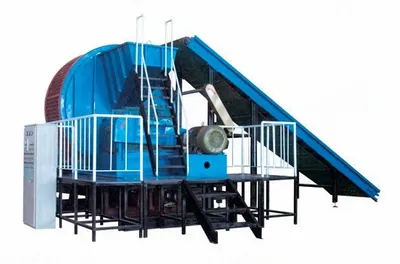

  2. Tire Shredder Specifications
    1. Applications: This equipment is utilized in shredding directly a whole scrap tire, from which has been removed the beads (or steel wire ring), output is into 50-60 mm tire lumps.
    2. Model: 800 or 1200.
    3. Quantity of cutting heads: 16 (model 800) or 20 (model SG148).
    4. Dimension of cutter head (diameter x thickness): 460 mm x 60 mm (model 800) or 560 mm x 60 mm (model SG148).
    5. Rotational speed of cutter head: 18 r/min (model 800) or 25 r/min (model SG148).
    6. Maximum capacity: 1500 kg/h (model 800) or 3000 kg/h (model SG148).
    7. Size of feed-in tires: ≤ 750# (model 800) or ≤ SG148# (model SG148).
    8. Size of discharged materials: 50-60 mm (both models).
    9. Power of main motor: 37/45 kW (model 800) or 55/75 kW (model SG148).
    10. Power of screen: 4 kW (model 800) or 5.5 kW (model SG148).
    11. Dimension: 4200 mm x 2100 mm x 2300 mm (model 800) or 6000 mm x 2800 mm x 3700 mm (model SG148).
    12. Weight: 8000 kg (model 800) or 16000 kg (model SG148).

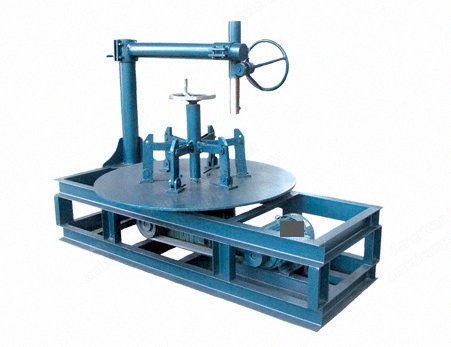

  3. Bead Cutter Specifications
    1. Applications: This equipment is utilized in cutting bead off the scrap tire. This equipment also can be used in separation between the tire crown and tire sidewall.
    2. Model: 750-1200.
    3. Diameter of applicable tire: 750-1200 mm.
    4. Capacity of dealing scrap tires: 10-50 pc/h.
    5. Power: 4 kW.
    6. Dimension: 1800 mm x SG148 mm x 1300 mm.
    7. Weight: 600 kg.
